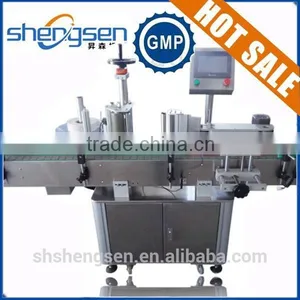

Vertical Adhesive Label Packing Machine for Round Bottles

Name: Vertical Adhesive Label Packing Machine for Round Bottles
Brand: shengsen
SKU: 127060047

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Stainless Steel, Stainless Steel

Usage:

Other, medical,chemical,bottled average

Type:

Adhesive Sticker

Shanghai Shengsen Packaging Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Stainless Steel, Stainless Steel

Usage Other, medical,chemical,bottled average

Type Adhesive Sticker

Feature Holographic

Custom Order Accept

Place of Origin Shanghai, China

Brand Name shengsen

Model Number SS-1820

Specifications

packing machine for bottles
fit for glass and plastic round bottles,customized bottles.
PLC and touch screen control
15 days

Product Characteristics:

1.adopt mature PLC control system technology, stable and high-speed

2.use touch screen control to operate system, simple, practical and efficient

3.advanced technology of pneumatic code system, make the printed letter clear, fast and stable

4.wide application, adapted to various sizes of round bottles

5.roll bottle attached to loose, so the labels attached more solid

duction line is optional,also collection turntable for sorting and packaging

Main Parameters:

Name	Parameter
Voltage	AC220V, 50/60HZ
Power	1.2KW
Labeling Speed	20-200pcs/min
Driving Motor	Servo or stepping motor
Labeling Accuracy	±1mm (depend on the evenness of the plane)
Printer to use air	5kg/cm²
Object Size	30-280mm(H),30-100mm(D)
Label Size	25-300mm(L),15-140mm(W)
Roll Size	76 mm(Inside),380 mm(Outside)
Dimension	2000(L)×1000(W)×1250(H) mm
