Home > Lights & Lighting > LED Professional Lighting > LED Underwater Light > 36W 54W RGB/CW/WW Wall Mounted Led Swimming Pool Lights

36W 54W RGB/CW/WW Wall Mounted Led Swimming Pool Lights

Name: 36W 54W RGB/CW/WW Wall Mounted Led Swimming Pool Lights
Brand: OSEN
SKU: 127033801
Availability: InStock

36W 54W RGB/CW/WW Wall Mounted Led Swimming Pool Lights thumbnail-1

36W 54W RGB/CW/WW Wall Mounted Led Swimming Pool Lights thumbnail-2

36W 54W RGB/CW/WW Wall Mounted Led Swimming Pool Lights thumbnail-3

36W 54W RGB/CW/WW Wall Mounted Led Swimming Pool Lights photo-1

36W 54W RGB/CW/WW Wall Mounted Led Swimming Pool Lights photo-2

36W 54W RGB/CW/WW Wall Mounted Led Swimming Pool Lights photo-3

US$ 1 - 50 MOQ: 12 Pieces

Key Specifications

Get Latest Price

LED Light Source:

DIP &SMD

Input Voltage(V):

AC 12V

Lamp Power(W):

Contact Supplier Request Quote Chat Now

Shenzhen Osenyuan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source DIP &SMD

Input Voltage(V) AC 12V

Lamp Power(W) 54

Lamp Luminous Flux(lm) 2000

Lamp Luminous Efficiency(lm/w) 83

Color Temperature(CCT) Other, Single color and RGB Color

Working Temperature(℃) -20, 50

Working Lifetime(Hour) 50000

IP Rating IP68

Certification BV, C-tick, CCC, CE, FCC, UL

Lamp Body Material Glass

Base Type PAR56

Place of Origin Guangdong, China

Brand Name OSEN

Model Number KW-OS-001

Attentions:

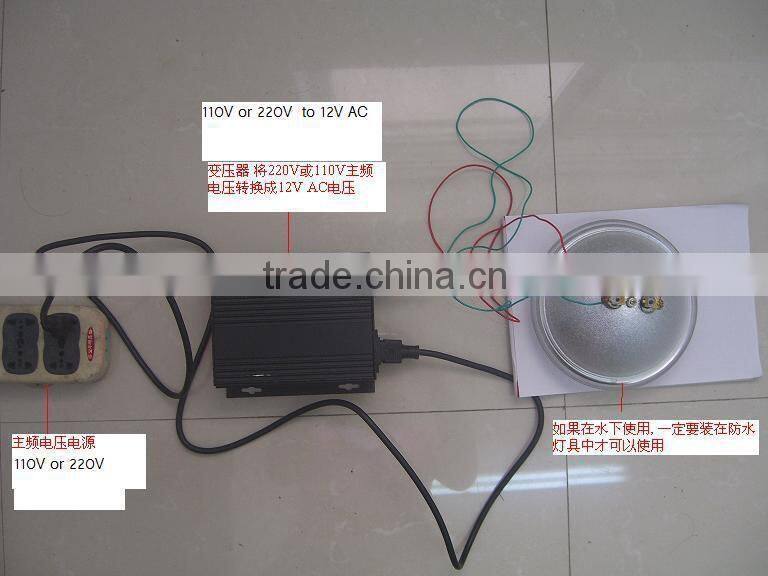

1. Use 220V or 110V tranformer to make the voltage to 12V AC.

2. You must fix this product in the waterproof fixture

if you want to use it under water.

Notice: Please cut off the power before installation.

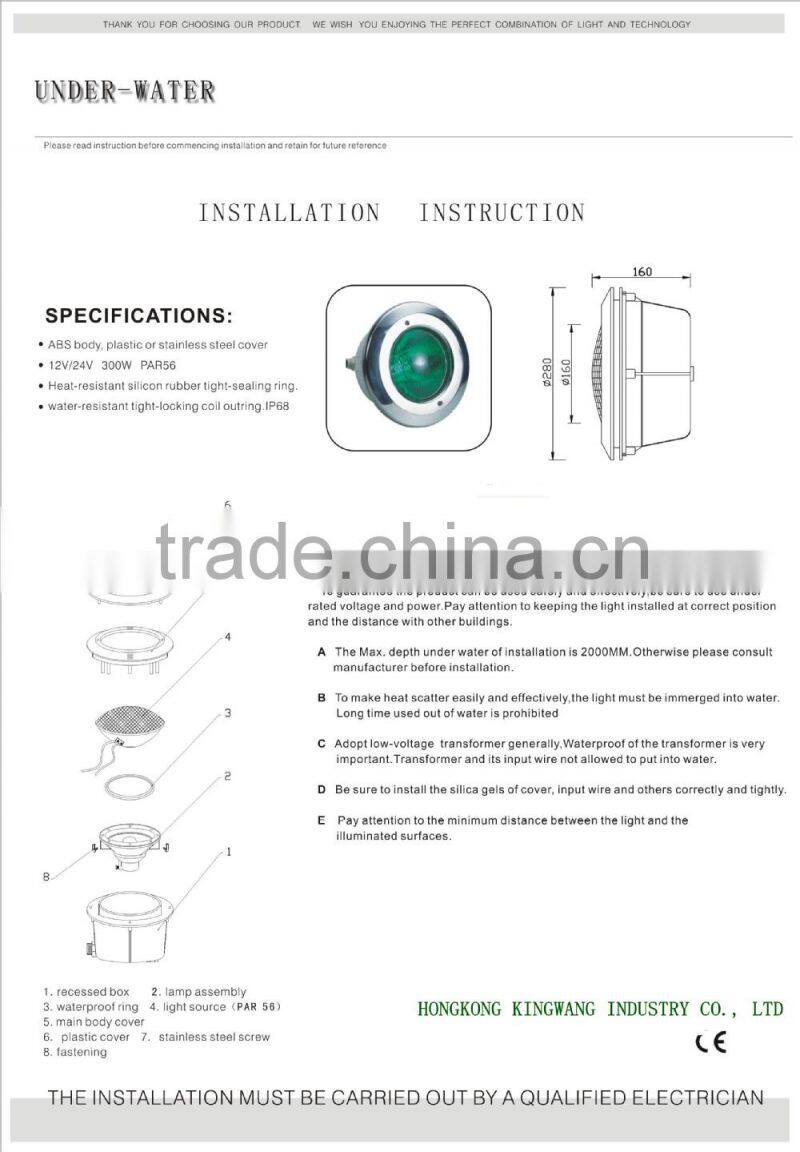

PAR 56 Installation Chart

Applications and Features of Par56 Underwater Lights

1, Applications:

It is used in swimming pools, fountains, scenic ponds’ illumination and decoration.

2, Features:
1 Adopt super-high bright LED as the light source and any single color is available, like red, green, blue, yellow, white and RGB colors. It is remote control.

2Adopt thick glass as the body shell which is corrosion resistant and quick heat dispelling.
3 It is IP68
4 Long life-span, above 50,000 hours.

5Low consumption, energy saving and environmental protecting.

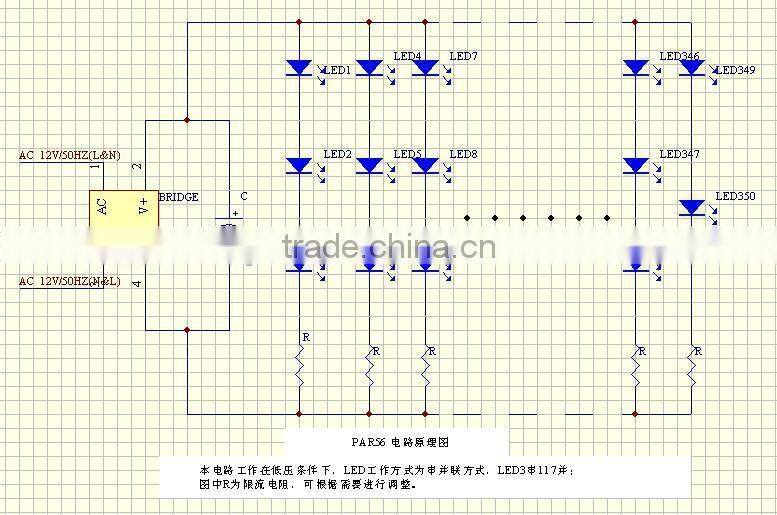

Par 56 Circuit Diagram

This circuit should be used under the condition of low-voltage and the working mode of LED is serial-parallel. Three strings of LEDS in parallel, the R key in the picture is current-limiting resistance and can be adjusted when necessary.

Product Specification

Item	LED Qty	Voltage	Color	Power	Max Lumen
OS-KW-P56-H9W-TG	9PCS	AC12V	Single Color	9W	900lm
			RGB	9W	405lm
			RGB with Remote	9W	405lm

OS-KW-P56-H12W-TG

12PCS

AC12V

Single Color

12W

1200lm

RGB

12W

540lm

RGB with Remote

12W

540lm

OS-KW-P56-H18W-TG

18PCS

AC12V

Single Color

18W

1800lm

RGB

18W

810lm

RGB with Remote

18W

810lm


OS-KW-P56-H27W-TG	9PCS	AC12V	Single Color	27W	1620lm
			RGB	27W	595lm
			RGB with Remote	27W	595lm


OS-KW-P56-H36W-TG	12PCS	AC12V	Single Color	36W	2160lm
			RGB	36W	800lm
			RGB with Remote	36W	800lm


OS-KW-P56-H54W-TG	18PCS	AC12V	Single Color	54W	3240lm
			RGB	54W	1188lm
			RGB with Remote	54W	1188lm

Usage of Remote Controller

Product Features:

1 You can use remote controller to control the effects of light source.

2Intelligently store the latest usage information of customers.

3 The remote controller can control eleven kinds of effects.

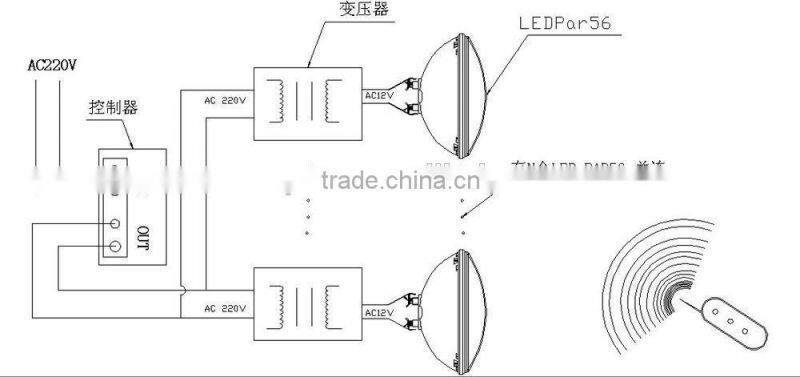

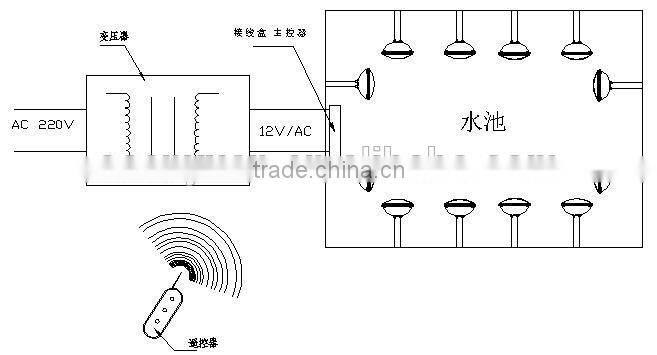

Wire Diagram of Synchronic Change of Remote Controller.

Buttons and functions:

Series No.	Effect	Button Mode	Button: Speed+	Button: Speed-	On/Off
1	Red	Variability Effect	——	——	On/Off(4s)
2	Yellow	Variability Effect	——	——	On/Off(4s)
3	Green	Variability Effect	——	——	On/Off(4s)
4	Cyan	Variability Effect	——	——	On/Off(4s)
5	Blue	Variability Effect	——	——	On/Off(4s)
6	Purple	Variability Effect	——	——	On/Off(4s)
7	White	Variability Effect	——	——	On/Off(4s)
8	Gradient	Variability Effect	Expediate	Slow down	On/Off(4s)
9	Fast Animation	Variability Effect	Expediate	Slow down	On/Off(4s)
10	Flicker	Variability Effect	Expediate	Slow down	On/Off(4s)
