Overhead line clamp/Guy grip dead end

Specifications

Overhead line clamp
1.ISO 9001:2008;
2.Well corrosion resintance;
3.Easy installation;
4.Installation is easy to guarantee.

Overhead line clamp

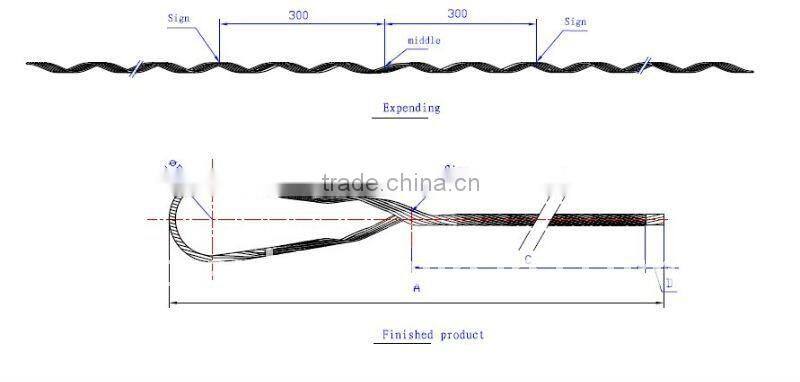

Type&Structure

1.Guy Grip Clamp can be divided into the ordinary for the ordinary Guy Grip clamp, adjustable Guy Grip clamp for fixed large-scale Tower and a large microwave tower Guy Grip clamp, etc..It can replace commonly used in domestic fixed-line tower on the UT Guy Grip clamp, wedge clamp, etc.



2.Guy Grip  clamp preformed wire legs twisted and the formation of air traffic control, rear for the preformed cutter ring.The formation of preformed wire legs wrapped in air traffic control when the Guy  line can produce a strong grip strength, and to fix the twisted ring anchor or tower on the ground.







GAVALVANIZED STEEL Dead-end Guy Grip

                           For Steel cable,Stay wire or Strand

Art.no

Dia, Range(mm)

DL/T763-2001

Length(mm)



DGGAC 032-033	3.02-3.38	1/8"		320
DGGAC 045-049	4.58-4.94	3/16"		560
DGGAC 054-057	5.40-5.75			560
DGGAC 062-066	6.20-6.60	1/4"	NL-25/G	636
DGGAC 076-079	7.65-7.95	5/16"	NL-35/G	790
DGGAC 089-093	8.93-9.30		NL-50/G	903
DGGAC 093-097	9.35-9.71	3/8"		903
DGGAC 097-100	9.72-10.07			920
DGGAC 108-112	10.82-11.29	7/16"	NL-70/G	1018
DGGAC 117-121	11.70-12.10			1050
DGGAC 125-131	12.50-13.10	1/2"	NL-95/G,NL-100/G	1335
DGGAC 139-146	13.91-14.60	9/16"	NL-120/G	1464
DGGAC 146-152	14.61-15.20			1500
DGGAC 157-160	15.70-16.06	5/8"		1560
DGGAC 188-192	18.87-19.23	3/4"		1780



ISO 9001:2008

Package

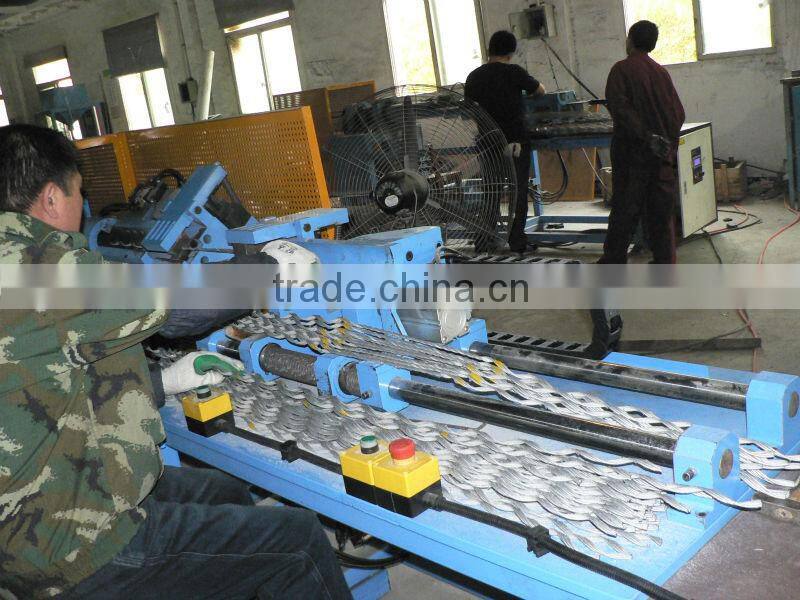

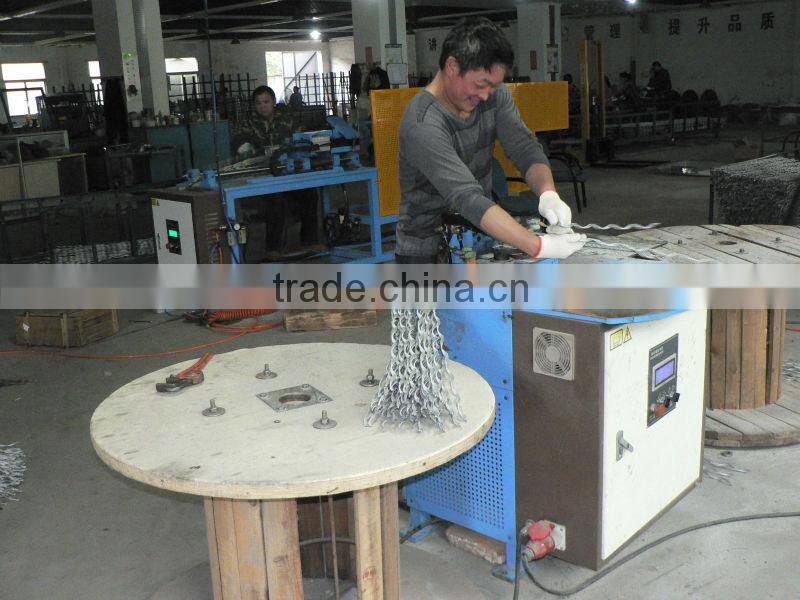

Factory Pictures:







Welcome to visit our factory!
