Specifications
Electrical wire clamp1.Best stress distribution;
2.The minimun loss;
3.Anti-aging and loose;
4.ISO 9001:2000;
Electrical wire clamp

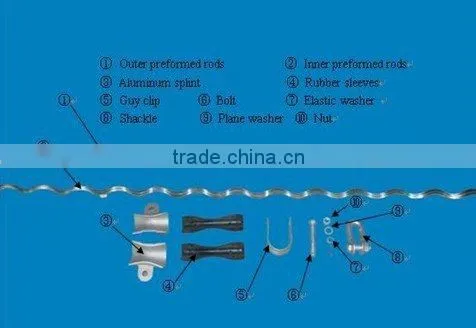

Materials&Structure
Suspension head:
It's made of Aluminum splint,U-card,preformed armor rods and rubber calmp.
Aluminum Splint:
By the anti-corrosion, high strength aluminum alloy die casting made of aluminum and chemical properties of the stable, good resistance to atmospheric corrosion, have a good comprehensive mechanical properties.
Preformed armor rods:
According to a predetermined chemical composition and mechanical properties of custom aluminum alloy wire, galvanized steel wire, aluminum clad steel wire, high tensile strength, hardness, good flexibility and strong anti-rust capability, to the harsh climatic conditions Long-term use.
Rubber clamp:
Center of high quality rubber and reinforcement composed of anti-ozone resistance, chemical resistance, weather aging, with high and low temperature performance, and high strength and elasticity, the smaller deformation.
Application
1.Suspension clamp is used on suspension on wire and ground wire,which can protect wire efficiently and smooth outer contour to significantly reduce the corona discharge.Preformed double-pivot suspension clamp can be used to cross rivers,long distance transmission lines and towers on the corner of large.(30°~60°)
2.Preformed suspension clamp is used in ACSR,aluminum wire,aluminum steel wire and galvanized steel wire.And it's designed to weaken the strong point on the static and dynamic stress.So it can protect wire ,stranded and suppress vibration,while it also could protect conductors in the support points on the arc from the impact and influence.
3.Preformed suspension clamp protect conductors from being bending ,stress and abrasion.
Consideration:
1.The product can be used only once;
2.Select suitable clamp according to the line's conductor specification;
3.The revolving directions of the clamps shall be kept consistent.
