Automatic mineral pure drinking water machine
Automatic water machine:
Water machine was used for all kind of water such as vitamin water, nutritive water, pure water, mineral waters, drink water, mountain spring water etc. There are three functions of bottle wash, fill and seal are composed in one body of the machine. .
The liquid filling machine is used in filling all kind of non-carbonated water in bottles made of polyester and plastics. The liquid filling machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
Water machine feature:
| Machine type | washing filling capping 3in1 monoblock |
| Bottle material | plastic bottle, glass bottle is possible |
| Bottle volume | 200-2500ml |
| Filling type | gravity filling type |
| Function | mineral water, pure water, drinking water, juice etc |
| PLC | Mitsubishi or Siemens |
| Customize | we can make 3L, 5L and 8L bottle packing |
| whole line | we can supply water purifying, filling, labeling, packing etc |
| Output | 2000-30000 bottles per hour (we have small type, too, less 2000bph) |
Water machine model:
| Model | CGF14-12-5 | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-12 | CG60-60-15 |
| Capacity(bph) | 2000-3000 | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 |
| Filling precision | ±3 (liquid level) | |||||||
| Rinsing pressure | 0.3Mpa | |||||||
| Suitable bottle dimater | φ40-φ120mm | |||||||
| Suitable bottle height | 130-340mm | |||||||
| Suitable cap type | plastic screw cap, sport cap, aluminium cap etc | |||||||
| Motor power | 2.2kw | 2.2kw | 2.75kw | 3kw | 5.5kw | 7.5kw | 11kw | 15kw |
| Weight | 2300kg | 2500kg | 3500kg | 4500kg | 5500kg | 7500kg | 9800kg | 12800kg |
Water machine advantage:
1.The bottle filling machine has a compact structure, perfect control system, easy to operate and highly automatic degree.
2.By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
3.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
4.This mineral waters bottle capping machine has a high efficient cap arranging system, perfect cap feeding and protection device.
5.Equipped with perfect clean management system to ensure the bottle clean.
6.Only by changing the star-wheel, can realize to fill the changed bottle shape.
7.The machine adopts perfect overload protective device can ensure the operator and machine safe.
8.This machine adopts adjustable frequency converter.
9.The electric components and pneumatic components are all introduced from world famous brand products.
Water machine picture:
plastic bottle washing machine
Liquid bottle filling machine

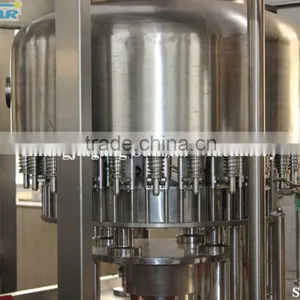

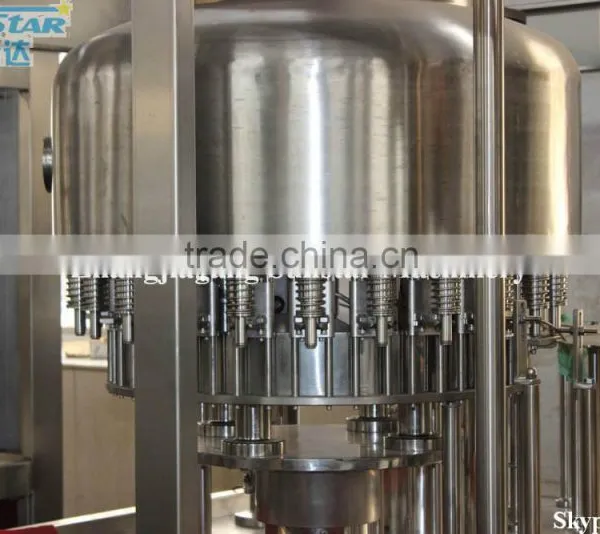

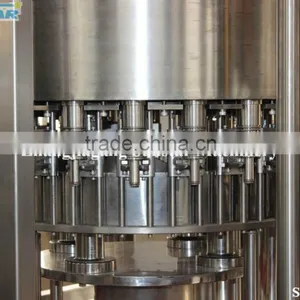

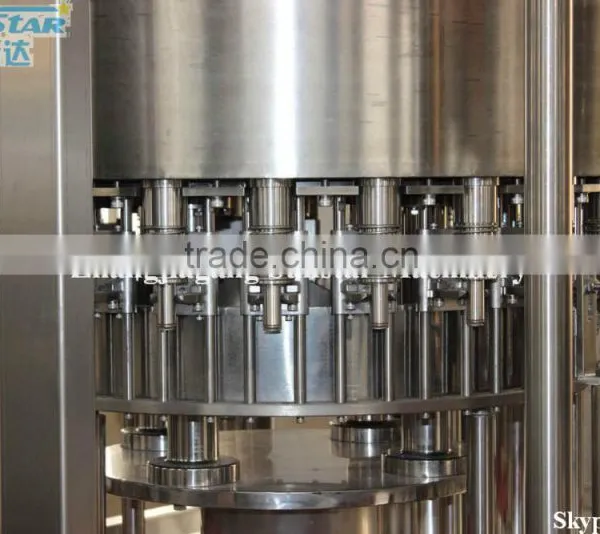

Filling machine ( Normal pressure filling for non-carbonated liquid)

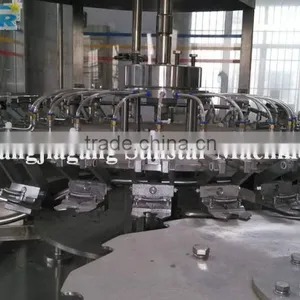

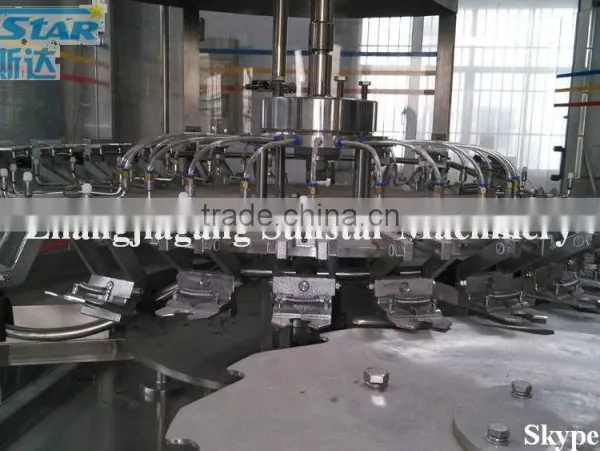

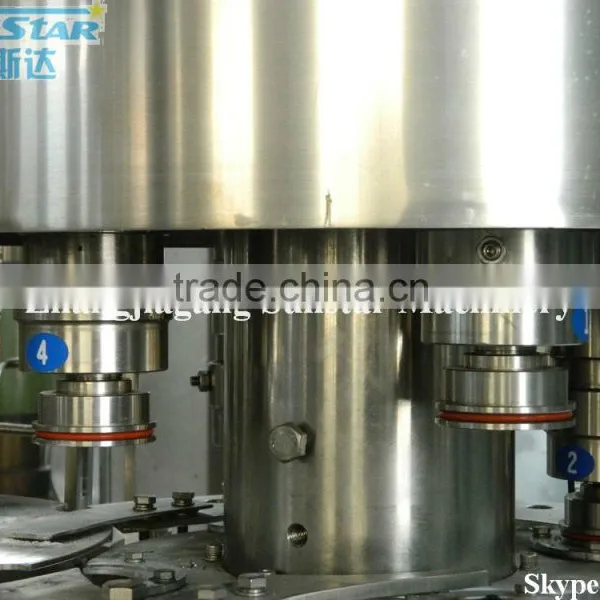

Capping Machine

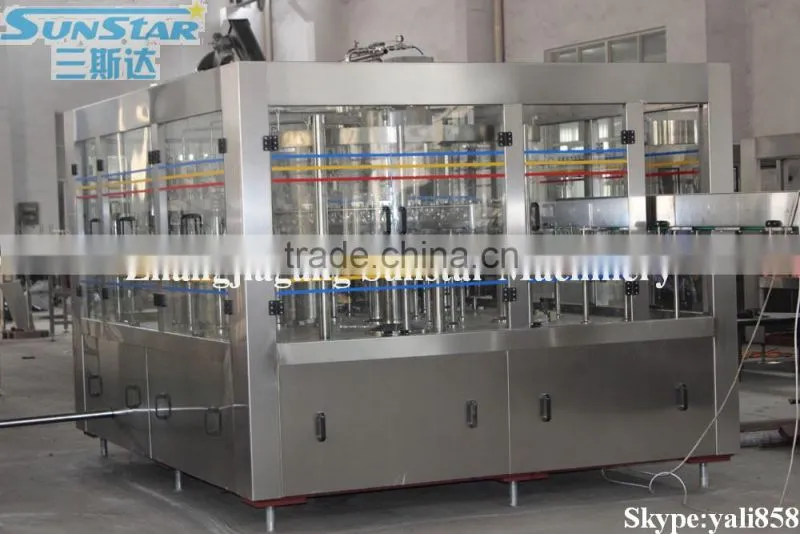

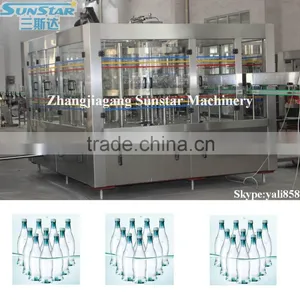

Washing filling capping 3in1 machine
Filled bottle water

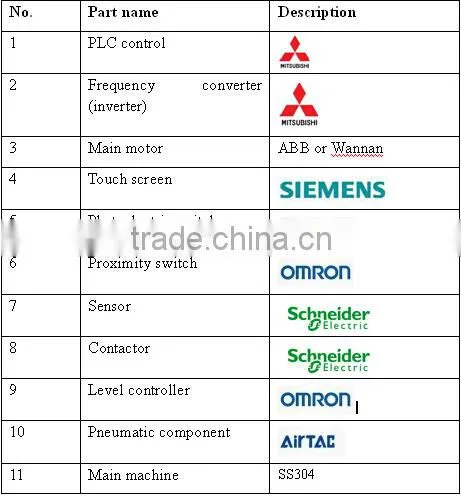

The electrical component of liquid filling machine/fill machine:
Automatic Filling Machine/Liquid Filling Machine/Bottle Filling Machine/Fill Machine
Mineral/pure water production line:
Pure water/mineral water treatment system--- filling 3in1 ---labeling--- code printer---film packing or carton----end product
We can provide whole mineral water/pure water production line
This is our main processing equipment for bottled/canned water/CSD/juice/beer/oil etc liquid filling and packing machine production line
Service idea
Serve attentively and pass the truth. Put oneself in the position, feel the grateful in the heart. From the rigor and efficiency of design research and development to the perfect reproduction of manufacturing process, and to the tight on-site installation and debugging, Sunstar Machinery unites and strives to play the strongest voice of the industry. Keeping pace with the times and stepping forward self-motivated, Sunstar plans the layout to help the customers achieve and go beyond dream according to the customer's actual situation and the characteristics of products constantly.
Serves every moment; Serves with all the heart
Turnkey project
We can supply turnkey project of water, juice/tea, carbonated drink etc filling and packing production line for customer. Sunstar will supply excellent equipment, perfect service for customer to save time and money. Think what the customers’ thinking, do what the customers urgently want.We want to establish long-term win-win cooperation relation with customer. Come on, friends!
After-sales service
After-sales service is implemented according to the international general standard.
1. 1 year guarantee and life-long service, the after-sales service website, hotline and fax within 24 hours are available and arrival at appointed place within 72 hours (domestic) is fulfilled.
2. Always prepare rapid wear, consumable, and important spare parts in spare part warehouse to give customer a reply in the first time.
3. Pay regular return visits for every customer to solve the hidden troubles in their equipment and provide the latest equipment information and keep records and files.
4. Qualified skilled service team completes after-sales services for every customer in a timely fashion.
Company name: Zhangjiagang Sunstar Machinery Co., Ltd.
Add: Leyu industrial zone, Zhangjiagang City, Jiangsu Province, China.
Contact Person: Ms.Alice
Tel:+86-512-58660693
Mobile:+86-13962211535
Skype:yali858
