Price of Mineral Water Plant 2000-30000bph
The price of mineral water plant is about 13000-130000 dollar. The capacity is 2000-30000bph (filling speed). We aslo make mineral water filter system machine.We can provide turn-key of mineral water project
Product introduction of price of mineral water plant:
Mineral water plant is automatic and was controlled by PLC
The mineral water plant was used for all kind of water such as vitamin water, nutritive water, pure water, mineral water, drink water, mountain spring water etc. There are three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic
The automatic mineral water plant is used in filling mineral water and purified water in bottles made of polyester and plastics. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling Operation of the new type is adopted. There the output and benefit of the machine is higher than the machines of the same specifications.
The features of mineral water plant :
1. The advanced programmed controller (PLC) is adopted to control the machine to run automatically
2. A transducer is used in the bottle -entering chains to Adjust speeds
3. The transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
4. It is Convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity.
5. On the bases, the filling Parts of the machine can be changed into filling methods of lower vacuum.
6. The filling category of lower vacuum (Z type machine) is applicable in glass Bottles, filling alcohol, soy and such like materials.
7. The aluminum tamperproof cap and plastic cap can be adopted.
The advantages of mineral water plant :
1.This machine has a compact structure, perfect control system, easy to operate and highly automatic degree. 2.The parts contact with product is made of quality SUS304 or SUS316, anti-corrosive, and easy to clean.
3.By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
4.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
5.This machine has a high efficient cap arranging system, perfect cap feeding and protection device.
6.Equipped with perfect clean management system to ensure the bottle clean.
7.Only by changing the star-wheel, can realize to fill the changed bottle shape.
8.The machine adopts perfect overload protective device can ensure the operator and machine safe.
9.This machine adopts adjustable frequency converter.
10.The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
11.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
12.The electric components and pneumatic components are all introduced from world famous brand products.
Technical parameter of automatic mineral water plant :
| Model | CGF14-12-5 | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-12 | CG60-60-15 |
| Capacity(bph) | 2000-3000 | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 |
| Filling precision | ±3 (liquid level) | |||||||
| Rinsing pressure | 0.3Mpa | |||||||
| Suitable bottle dimater | φ40-φ120mm | |||||||
| Suitable bottle height | 130-340mm | |||||||
| Suitable cap type | plastic screw cap, sport cap, aluminium cap etc | |||||||
| Motor power | 2.2kw | 2.2kw | 2.75kw | 3kw | 5.5kw | 7.5kw | 11kw | 15kw |

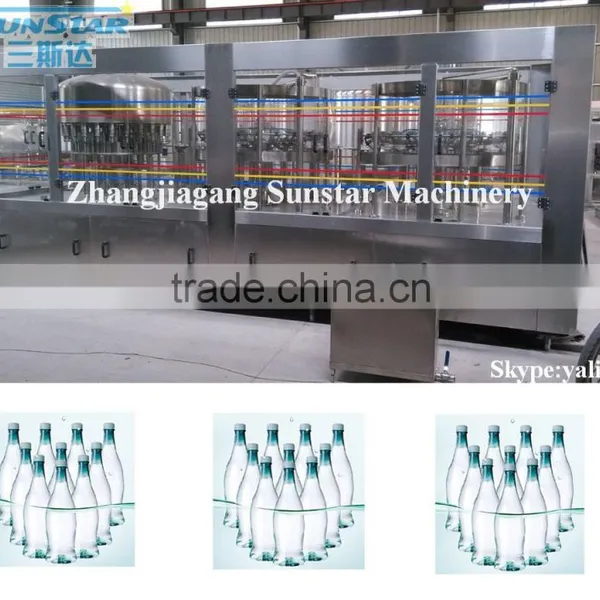

Mineral water plant pictures:
bottle washing
Mineral water plant
Water filling machine ( Normal pressure filling for non-carbonated liquid)
Capping machine
The electric component of mineral water plant:
Mineral/pure water production line:
Pure water/mineral water treatment system--- filling 3in1 ---labeling--- code printer---film packing or carton----end product
We can provide whole mineral water/pure water production line
....
