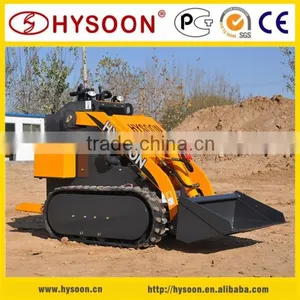

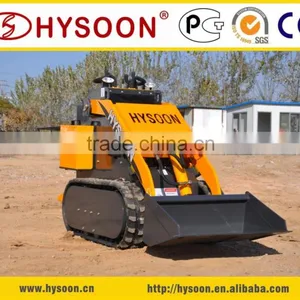

China HY280 mini compact track loaders
1. China HY280 mini compact track loaders specification :
1.Imported American Briggs&Stratton gasoline engine 23HP
2.Italy pump , Italy servo for optional
3.with rubber track

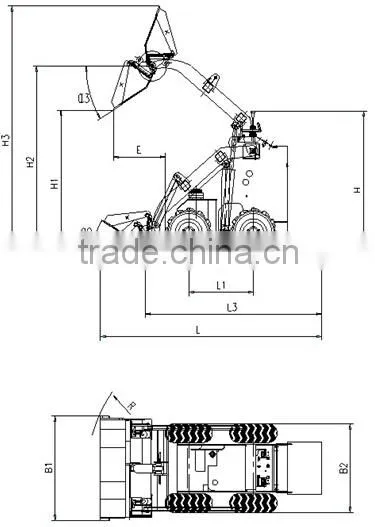

China HY280 mini compact track loaders main specification
Item |
Metric |
Inch |
Max working height (H3) |
2065mm |
81.3inch |
Max pin height (H2) |
1803 mm |
71 inch |
Max discharge height (H1) |
1386 mm |
54.6 inch |
The highest unload distance(E) |
471mm |
18.5 inch |
Max angle of unloading(α3) |
32° |
32° |
Retracting angle (α2) |
33° |
33° |
Angle of departure (α1) |
18° |
18° |
Total height(H) |
1309mm |
51.5inch |
The height from the ground(H1) |
123mm |
4.8inch |
wheelbase(L1) |
690 mm |
27.2 inch |
No bucket height(L3) |
1778 mm |
70.0 inch |
Total width (B2) |
800 mm |
31.5 inch |
Bucket width(B1) |
820 mm |
32.3inch |
Total length (L)(with bucket ) |
2210 mm |
87inch |
Turning radius (R) |
1236mm |
48.7 inch |
2. China HY280 mini compact track loaders pictures:

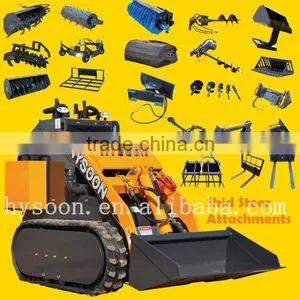

HY280 compact track loaders can do different works by quick change different attachments , like digger , breaker , trencher , 4 in 1 bucket ,fork ,angle blade and so on .

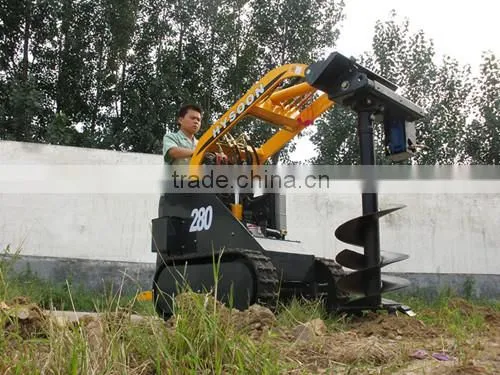

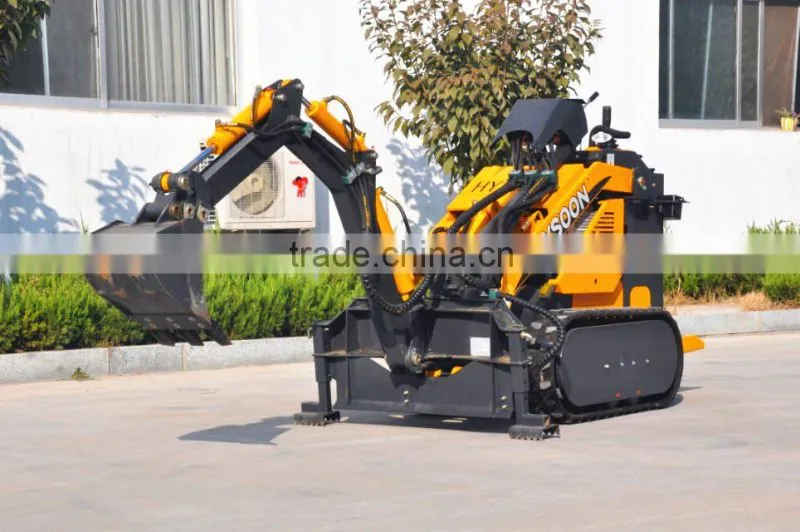

HY280 mini compact track loaders with backhoe HY280 mini compact track loaders with auger

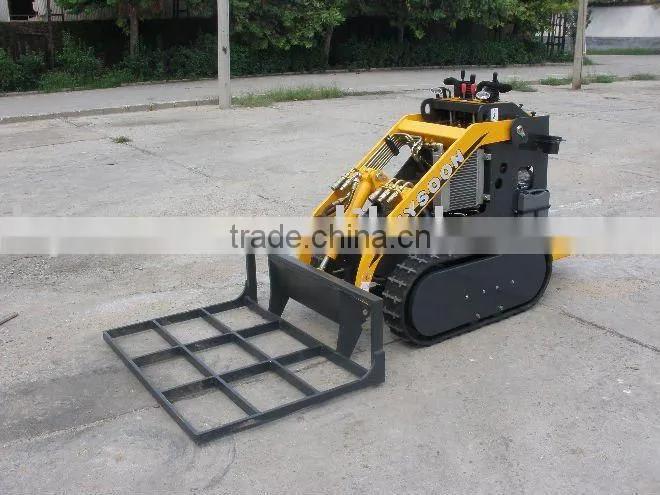

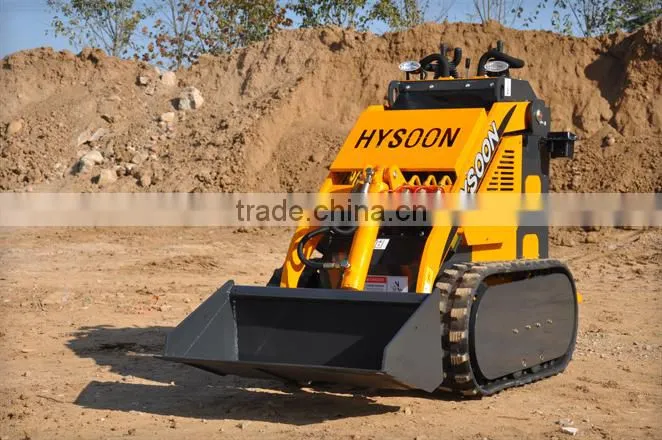

HY280 mini compact track loaders with leveler HY280 mini compact track loaders with bucket

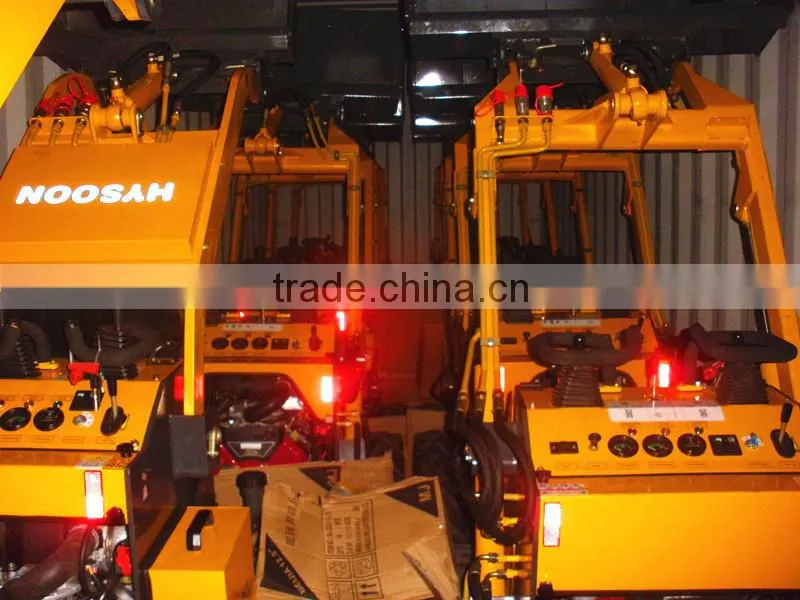

3.Package for HY280 mini compact track loaders CLICK HERE FOR MORE

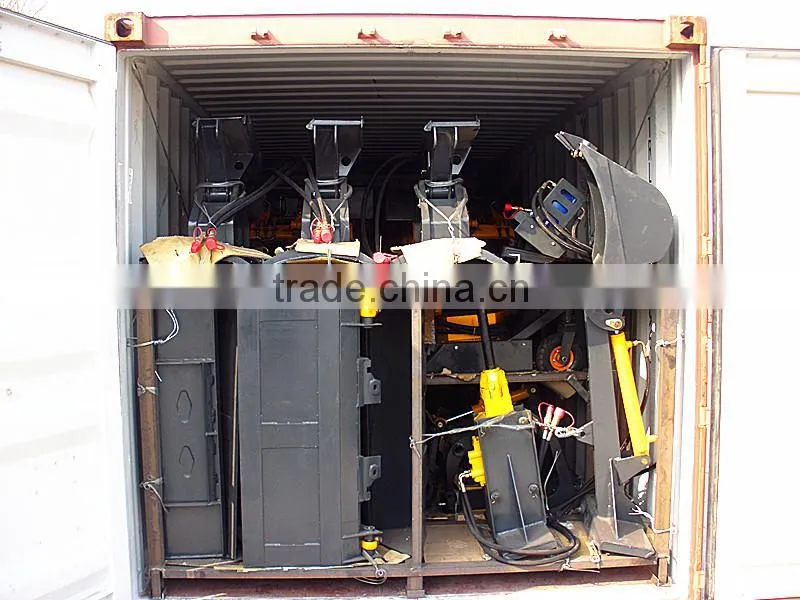

If LCL for HY280 mini compact track loaders ,use plywood & iron frame package , very strong to protect the products .
If FCL , direct load into the container

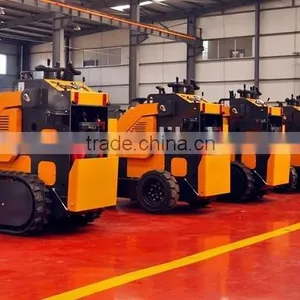

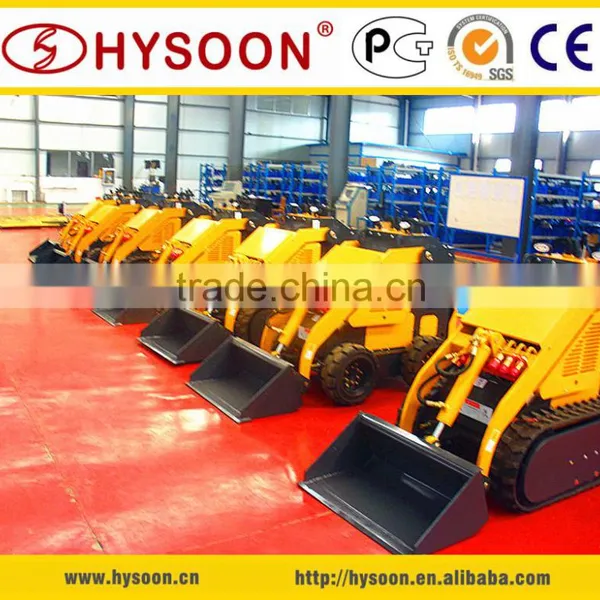

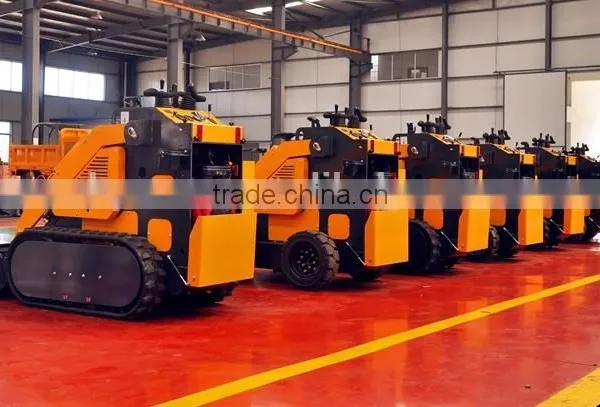

4. Production flow for China HY280 mini compact track loaders
5. Exhibition for China HY280 mini compact track loaders
We attended lots professional exhibitions , for example :
Hannover Agritecnica show in Germany, Shanghai Bauma show , ACE SHOW IN Melbourne Australia , CTT show in Moscow Russia and so on .
Our products have won lots customers loved .Following are some pictures :

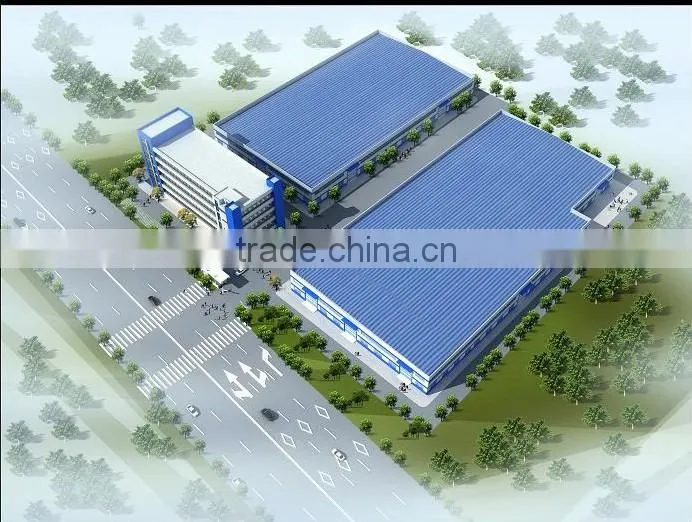

Warmly Welcome you to visit our factory!
CLICK HERE FOR MORE
