Promotion price 1.5Ton Log grapple Fork Wheel Loader
1.Standard Configuration
1)Rated load 1500kg
2)operating weight 4400kg
3)YN 42kw engine (Xinchai EUROIII or Cummins EPA Tier4 Engine for option)
4)Rear view carema and LED lamps
5)Fully hydraulic steering system
6)Big tires (23.5/70-16) ,different tread pattern for option.
Option Configuration
1)Heater and Air Conditioner
2)Quick Hitch and Various Attachments.

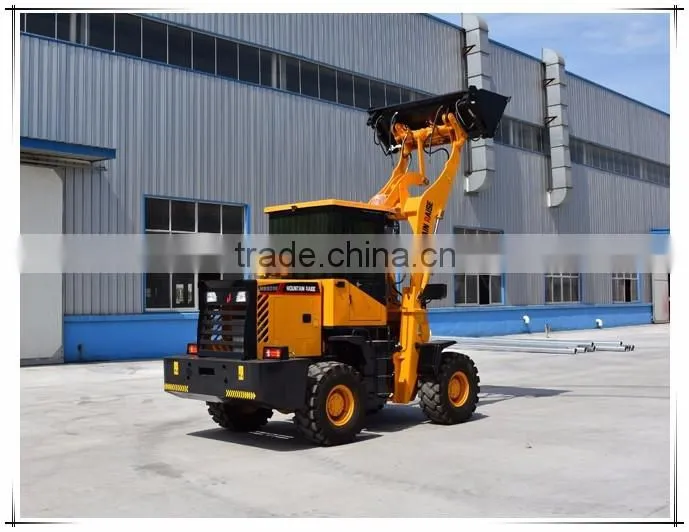

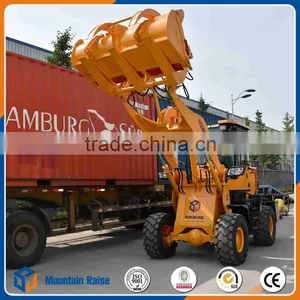

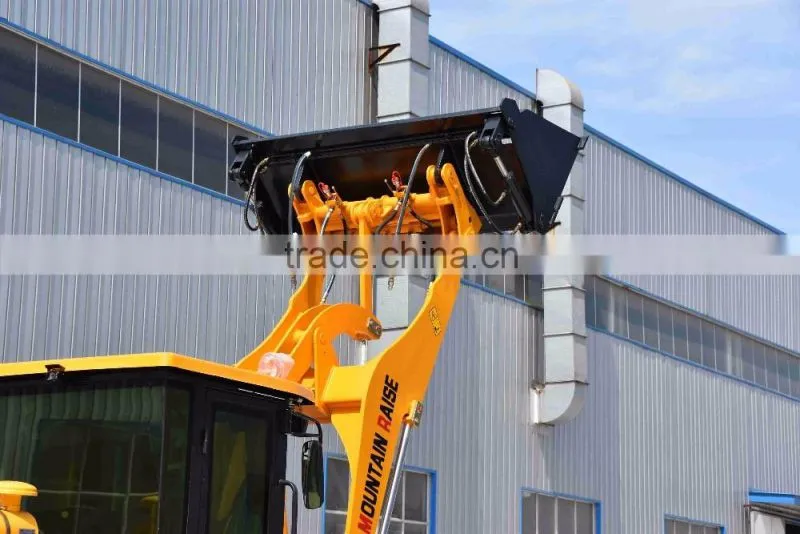

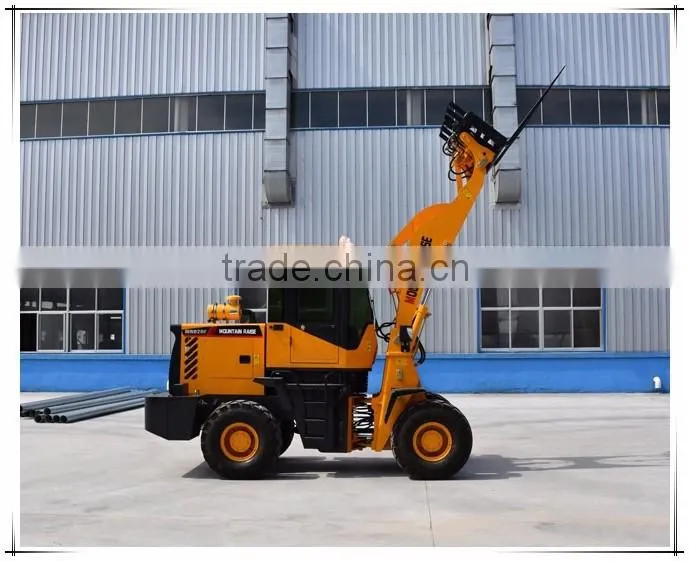

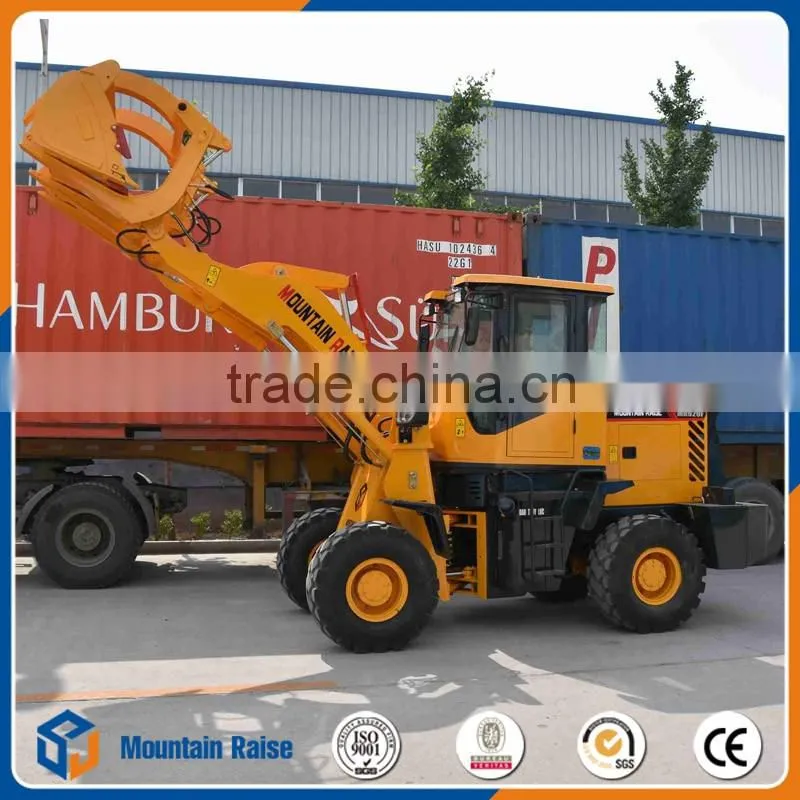

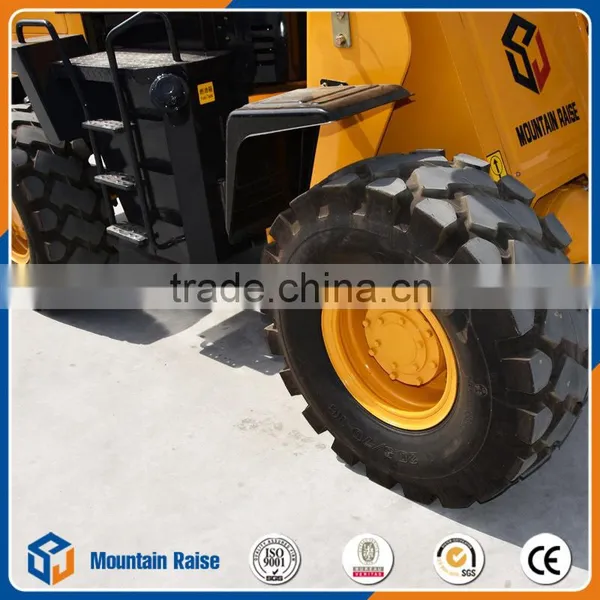

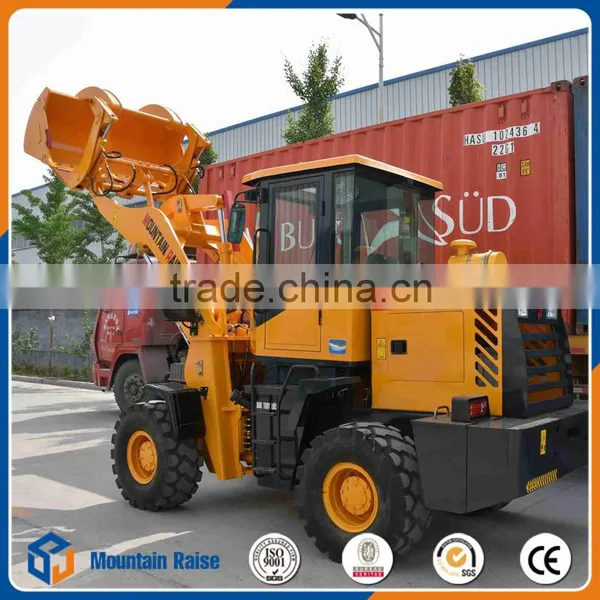

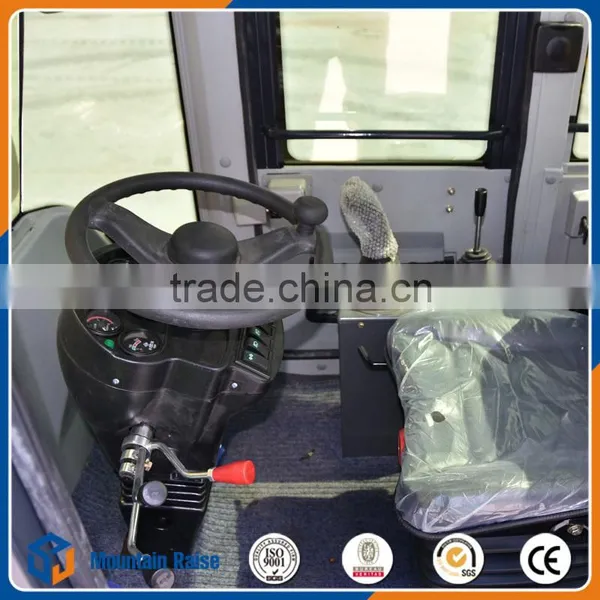

2.Product Show

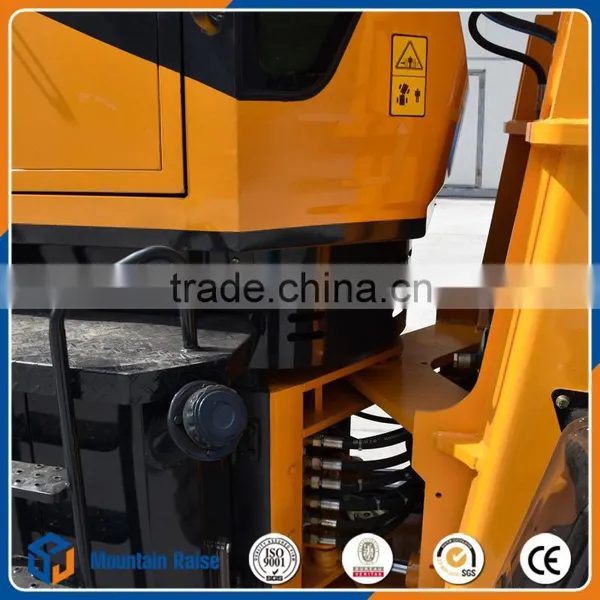

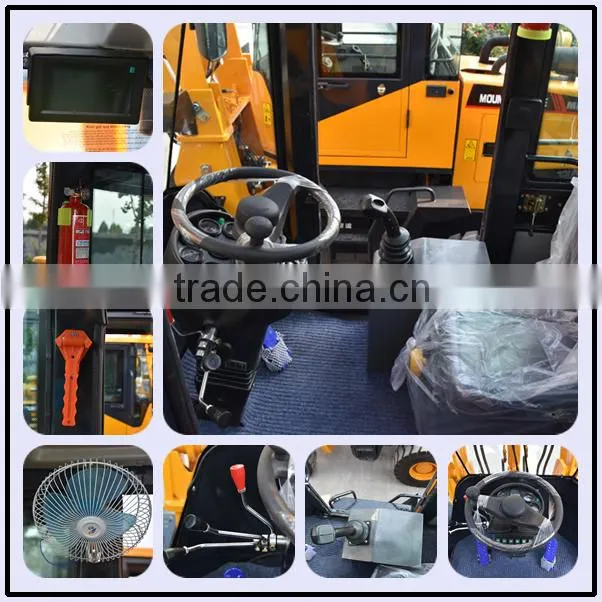

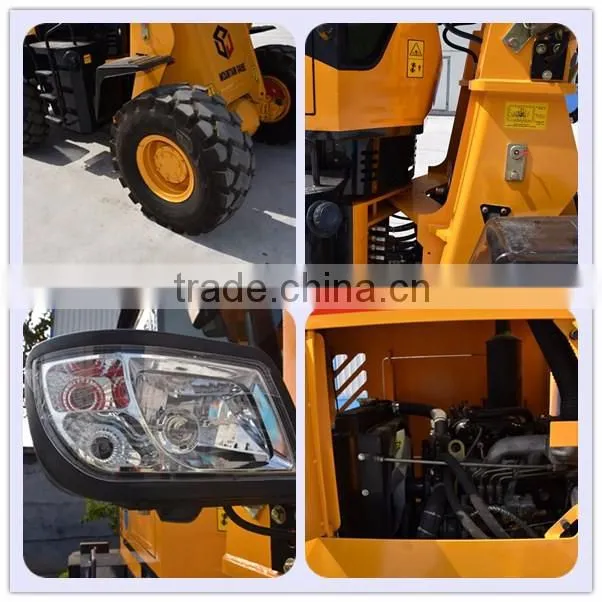

More Details
3.Specification Table
| Main Specification | |
| Rated Load Capacity | 1500 kg |
| Operating Weight | 4400 kg |
| Bucket Capacity | 0.6m3 |
| Bucket Width | 1885mm |
| Dimensions L*W*H | 5545x1855x2740 mm |
| Lifting Height | 4360mm |
| Dumping Height | 3200mm |
| Engine | |
| Model | YUNNEI YN27GBZ |
| Rated Power | 42kw |
| Operating Specifications | |
| Max.Drawbar pull | 43kn |
| Max. Breakout Force | 42kn |
| Hydraulic System Pressure | 16 MPa |
| Hydraulic Cycle Times | 7.6 s |
| Transmission | |
| Type | Countershaft power shift |
| Speed Gears | F4/R4 |
| Axle | |
| Front Axle | Fixed with calipers |
| Rear Axle | Fixed with Osc.frame and calipers |
| Brake System | |
| Service Brake | Air brake |
| Parking Brake | Soft Shaft operation, expanding shoe brake |
| Tires | |
| Size | 20.5/70-16 |
| Tread Pattern | As request |

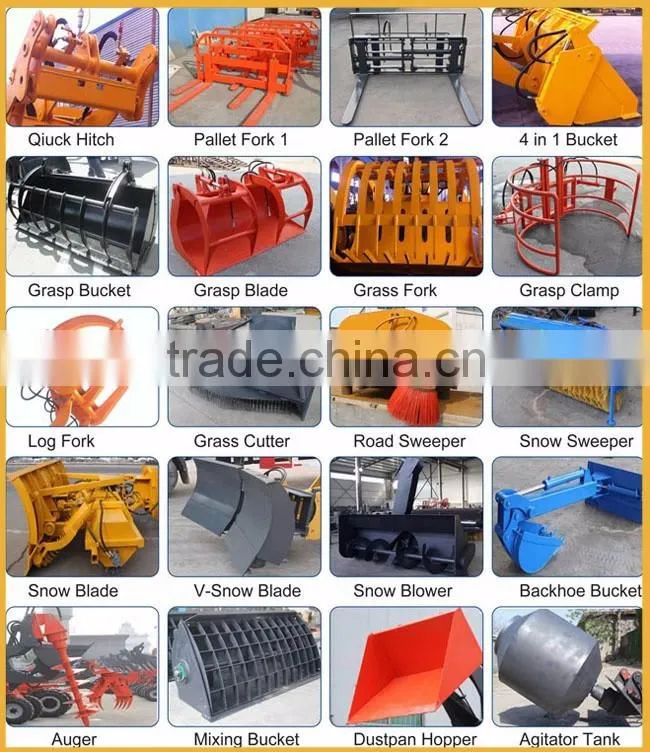

4.Optional Attachment
5.Packing & Delivery
1unit/20'GP container , 3units/40'HQ container. Remove cabin or wheels.
Delivery time within 10 days after order confirmed.
6.Factory & Cooperation
Shandong Mountain Raise Heavy Industry Machinery Co.,LTD located in one of the nine states of
ancient China-Qingzhou City, Shandong Province, owning a professional maintenance team with
senior technicians, ready to provide support services to users and dealers. Select regular manufacturers
for supporting spare parts, bridge, transmissions and other main parts designed and produced by ourselves.
Welcome new and old customers to visit our factory negotiate business!
7.Why Choose Mountain Raise ?
1). We are leading and professional manufacturer of wheel loader in China.
2). Innovation design team, Professional production team, 15 Technical patents.
Accept your customization.
3). High Quanlity & Reasonable Price. The accurate product positioning.
Maybe we are not the lowest price, But we offer products with the highest cost performance.
4). Responsible, in good faith. To guarantee delivery.
Do security by alibaba TRADE ASSURANCE Service.
5). 1 Year Warranty. Offer you accessories for free in 1 year warranty period.
6). Provide technical support for WHOLE life.
7). Accept OEM.
