Multi-function Mini Radlader 1800kg Wheel Loader With Hydraulic System.
| 1. Advantages of our Wheel Loader ,Mini Wheel Loader |

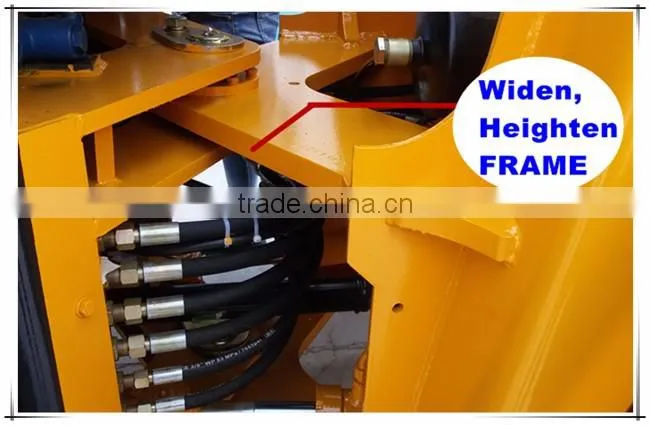

| FRAME | Adopt widen and heighten frame,it can protect the transmission shaft and improve the stability of the whole body. |

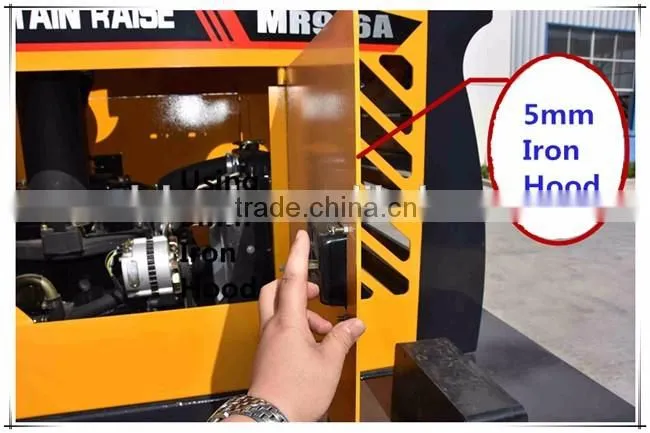

| ENGINE HOOD | Our wheel loaders use total iron rear hood and adopting electrophoresis to deal with the iron before coating with lacquer. |
| CABIN | Of course the cabin has a dormer and rear view camera to broaden user's view. |
| TYRES | 16 P.R high-pressure tyres can stand great pressure and extend the service life. |
| Transmission | With full hydraulic system making easy operating |
| Drive System | CTV of our loader makes drive easily |
| 2. Standard Equipments |
| 1). | Rated load 1800kg |
| 2). | With 0.8m3 Bucket Capacity |
| 3). | New Design and Comfortable Roomy Space Nice view for driver |
| 4). | Standard 16/70-20 Tires |
| 5). | Made in China High Torque,Low Fuel Consumption and High-power 65kw Engine |
| 3. Option Equipment | |
| 1). | Cabin |
| 2). | Pilot Control |
| 3). | Air Conditioner |
| 4.Main Parameters | |
| Rated load | 1800kg |
| Operating weight | 4820kg |
| Bucket Capacity | 0.8m3 |
| Bucket Width | 1825mm |
| DimensionL*W*H | 5550x1860x2755 mm |

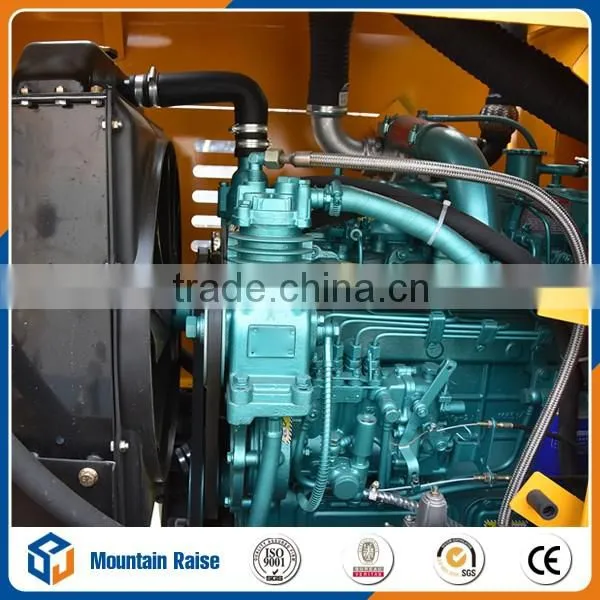

| Engine | |
| Model | YUNNEI YN33GBZ |
| Rated Power | 65kw |
| Max Torque | 256Nm |
| Operating Specifications | |
| Max.Drawbar Pull | 61kN |
| Max. Breakout Force | 60kN |
| Hydraulic System Pressure | 16 MPa |
| Hydraulic Cycle Times | 7.6 s |
| Steering System | |
| Steering Angle Left/Right | 36º±1º |
| Minimum Turing Radius (Over Rear Tire) | 3850 mm |
| Minimum Turing Radius (Over Bucket ) | 4100 mm |
| Transmission | |
| Type | Countershaft power shi |
| Speed Gears | F2/R2 |
| Axle | |
| Brand | Bei Lian |
| Front Axle | Fixed with calipers |
| Rear Axle | Fixed with Osc.frame and calipers |
| Brake System | |
| Service Brake | Single circuit,oil brake |
| Parking Brake | Drum-type shoe brake,spring applied &air released |
| Tires | |
| Size | 16/70-20 |
| Type | Bias-ply |
|

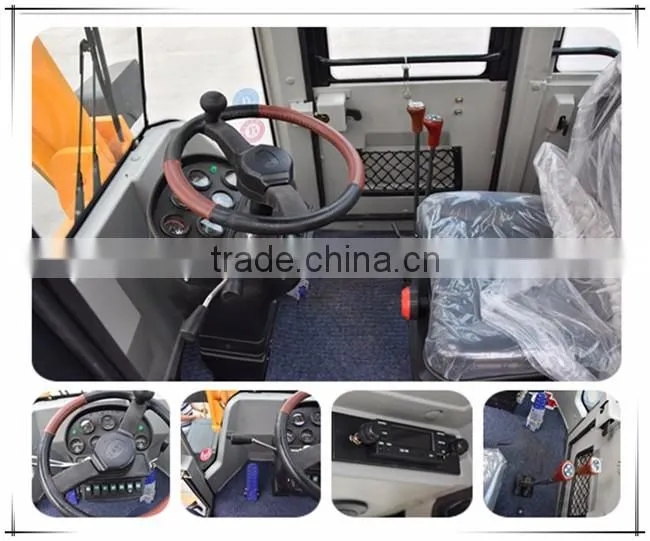

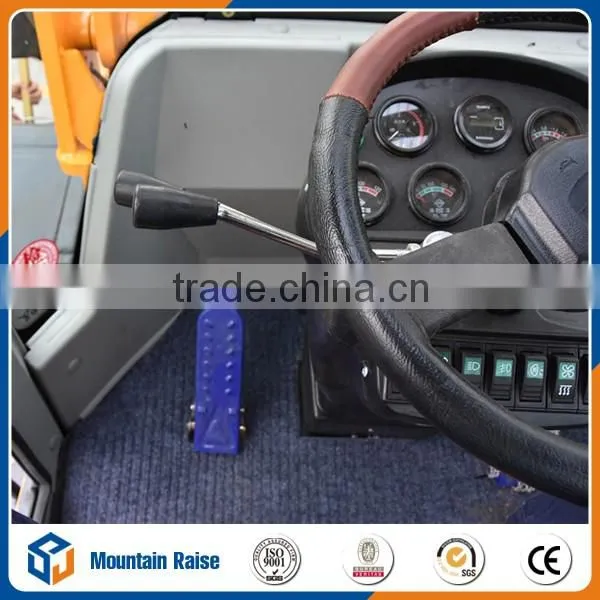

Cabin Details
Comfortable operating environment,luxurious cab,broaden driver's sight. Operaitng convenient,natural,accurate,reduce fatigue.
|
|

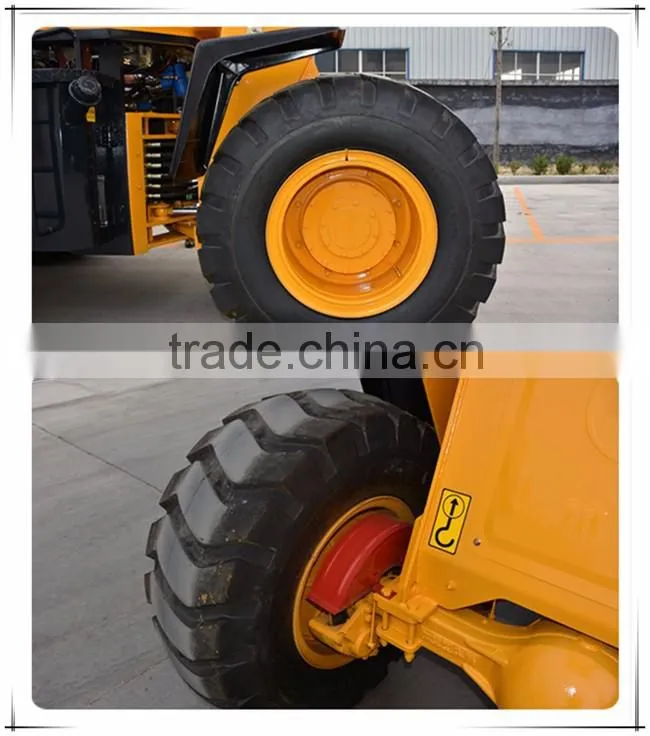

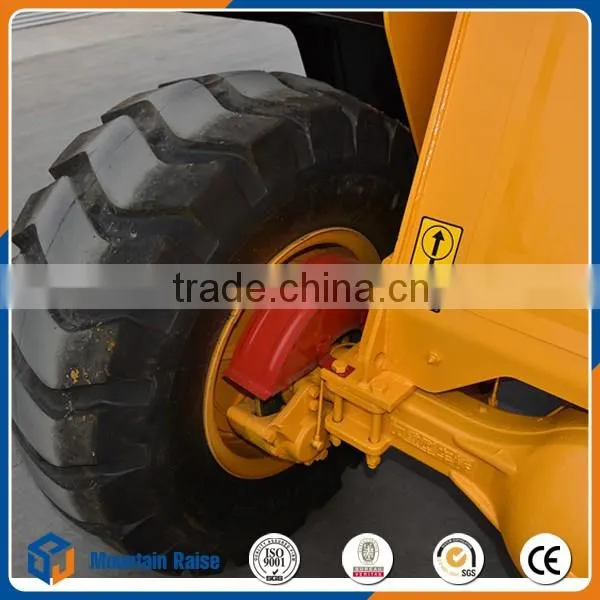

The TYRES
16 P.R High-pressure tires, improve stability of the whole machine and extend the life of the tires |
|

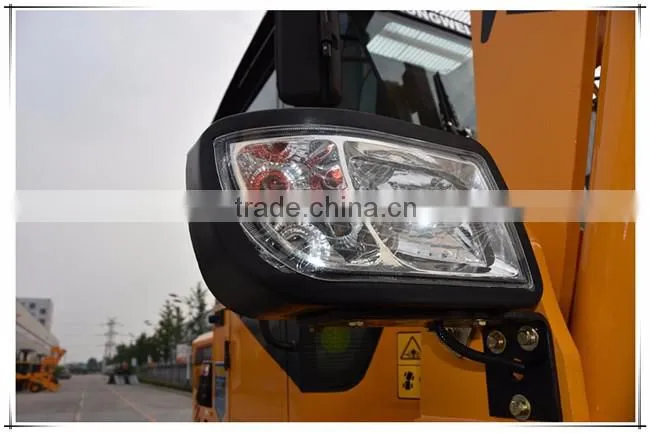

The Lamp
High quailty lamp can lighten the rough load for you! |
Spare Parts |
|
- Please no hesitate to contact me if you have after-service problems of the spare parts. - We guarantee that your request will be handled quickly and appropriately. - Please do not worry about you can't buy the same spare parts. - We can send you the spare parts by plane if you have a service problem under the warranty. - Of course many spare parts will be gifted for you . |
Delivery time: 3 days after the order confirmed
Packaging: pack in 20 GP,remove the tires,
pack in 40 HC, remove the cabin
Factory Introduction
Shandong Mountain Raise Heavy Industry Machinery Co., Ltd
> We are the Factory selling ten series wheel loaders, forkilifts, excavator
and backhoe loader.
> The company's sales and service network throughout the whole country 26 provinces, municipalities and autonomous regions , and export to of Belguim, Germany,Britain, France, the Netherlands, Finland, Syria, Sweden, Kazakhstan,
South Africa, Egypt, Mexico, Australia and other European and International market.
> We try our best to meet customers requirements!
| 1.Why you choose us? |
|
1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts and adapting the best materials of our products.
|
| 2.Which payment terms can we accept? |
|
1)T/T: 30% pre-payment, 70% balance shall be paid before delivery.
|
| 3.What is the warranty of our quotation? |
| 1500 working hours or half a year whichever comes first. |
Other questions, please contact our sales managers. |
