Multi-function zl20 Wheel Loader 1.5 ton Mini loader for Construction.
1. Standard Equipments | ||
1). |
YUNNEI 42kw engine, 4 cylinder |
|
2). |
4 Wheel loader |
|
3). |
23.5-16 standard tires |
|
4). |
0.6m3 Bucket capacity |
|
5). |
CE, TUV, ISO Certification |
|
6). |
China Factory Direct Sale to Customers |
|
7). |
More Than 20 Kinds Of Durable ,Safe and Effective Attachments Suitable For Loaders. |
|
2. Advantages of our wheel loaders | ||
FRAME |
Adopt widen and heighten frame,it can protect the transmission shaft and improve the stability of the whole body. |
|
Engine hood |
Our wheel loaders use total iron rear hood and adopting electrophoresis to deal with the iron before coating with lacquer |
|
Cabin |
Of course the cabin has a dormer and rear view camera to broaden user's view. |
|
Tyres |
16 P.R high-pressure tyres can stand great pressure and extend the service life. |
|
Drive system |
CTV of our loader makes drive easily. |
|
Transmission |
With full hydraulic system making easy operating |
|

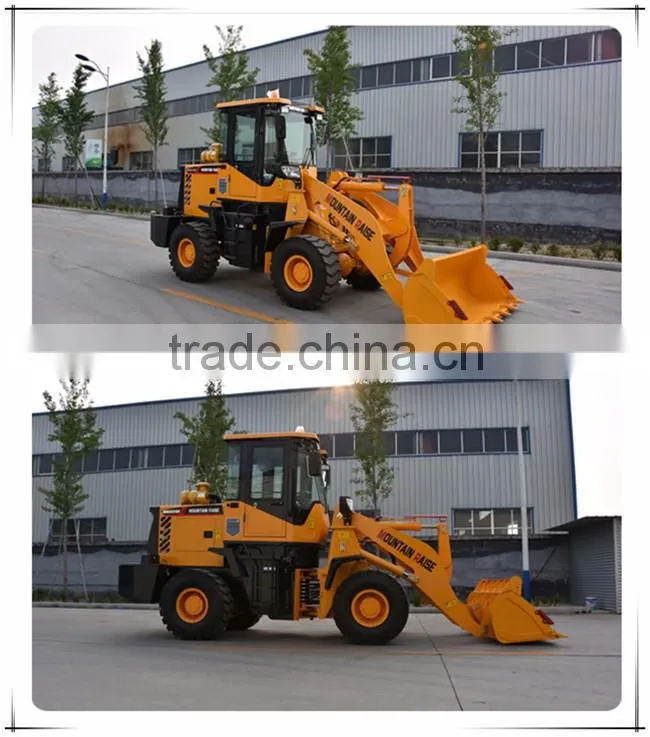

Picture Show

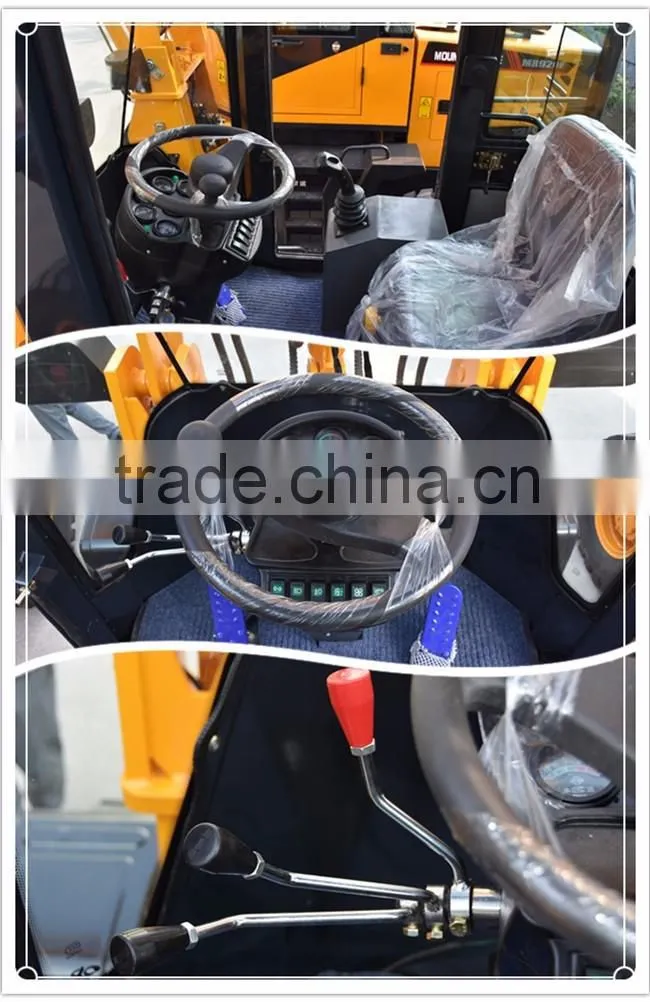

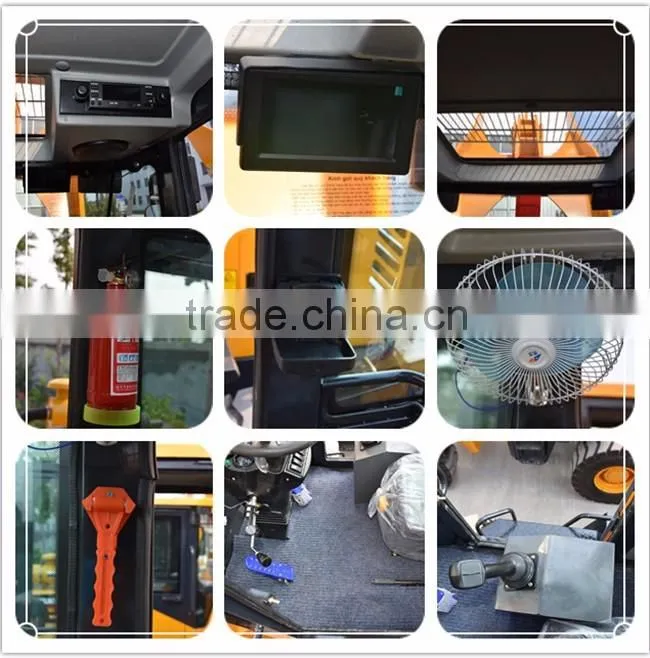

Cabin details
New Design and Comfortable Roomy Space Nice view for driver,complete equipments to meet drivers requirements!

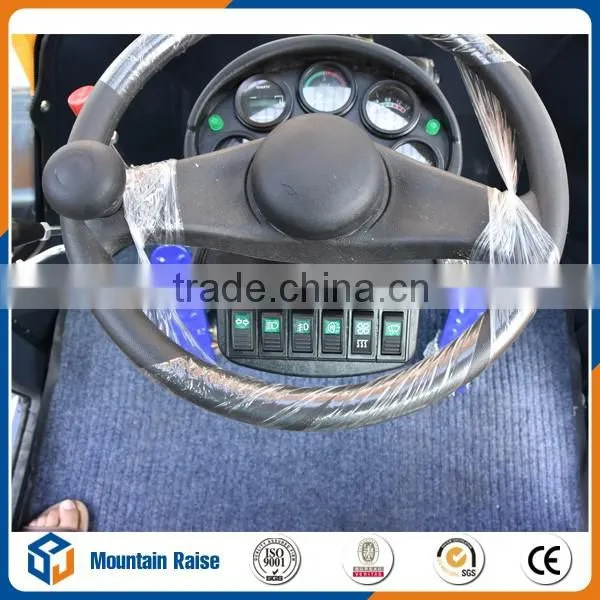

The Luxurious Cab

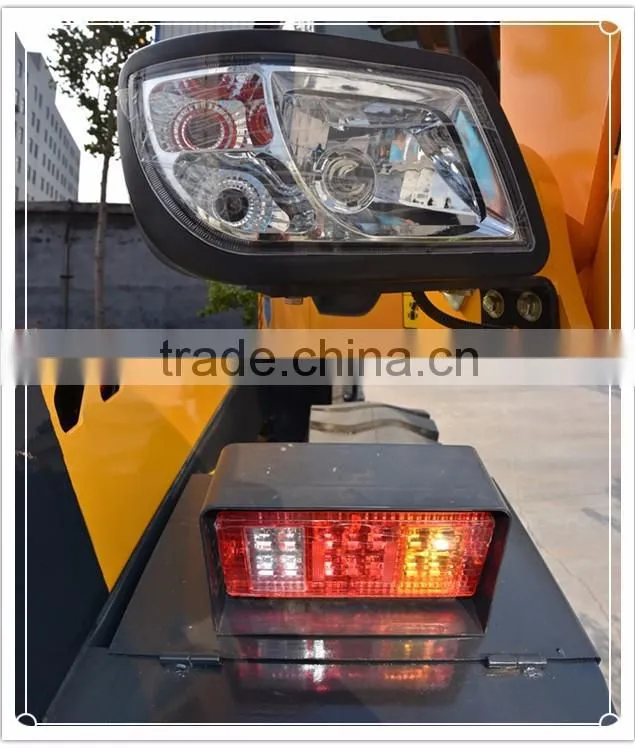

The Lamp
Main Specifications
| Main Parameters | Rated Load Capacity | 1500kg |
| Operating Weight | 4400kg | |
| Bucket Capacity | 0.6m3 | |
| Lifting Height | 4210mm | |
| Dumping Height | 3300mm | |
| Dimension L*W*H(mm) | 5545x1880x2740mm | |
| Engine | Model | YUNNEI27GBZ |
| Rated Power | 42kw | |
| Max. Torque | 256Nm | |
| Operating Specifications | Max.Drawbar Pull | 47kN |
| Max. Breakout Force | 48kN | |
| Hydraulic System Pressure | 16 MPa | |
| Hydraulic Cycle Times | 7.6 s | |
| Steering system | Steering Angle Left/Right | 36º±1º |
| Minimum Turing Radius (Over Rear Tire) | 3850 mm | |
| Minimum Turing Radius (Over Bucket ) | 4100mm | |
| Transmission | Type | Countershaft power shift |
| Speed Gears | F2/R2 | |
| Axle | Brand | Bei Lian |
| Front Axle | Fixed with calipers | |
| Rear Axle | Fixed with Osc.frame and calipers | |
| Brake System | Service Brake | Single circuit,oil brake |
| Parking Brake | Drum-type shoe brake,spring applied &air released | |
| Tires | Size | 23.5-16 |
| Type | Bias-ply |
Attachments
Spare parts
>> Please no hesitate to contact me if you have after-service problems of the spare parts.
>> We guarantee that your request will be handled quickly and appropriately.
>> Please do not worry about you can't buy the same spare parts.
>> We can send you the spare parts by plane if you have a service problem under the warranty.
>> Of course many spare parts will be gifted for you
Delivery Time: 3 working days after the order confirmed.
Packaging: Packing in 20'GP, remove the tires
Packing in 40'HC,remove the cabin or tires
Shandong Mountain Raise Heavy Industry Machinery Co., Ltd
> We are the Factory selling ten series wheel loaders, forkilifts, excavator and backhoe loader.
> The company's sales and service network throughout the whole country 26 provinces, municipalities and autonomous regions , and export to of Belguim, Germany,Britain, France, the Netherlands, Finland, Syria, Sweden, Kazakhstan, South Africa, Egypt, Mexico, Australia and other European and International market.
> We try our best to meet customers requirements!
1.Why you choose us?
1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts and adapting the best materials of our products.
2)Competitive Price: Concentration of mechanized production in large quantities
3)Service Team: Working 24 hours one day and professional maintenance team .
Most problems can be solved within 24 hours.
4)Fast Delivery: 10-25 working days in factory after receiving pre-payment.
2.Which payment terms can we accept?
1)T/T: 30% pre-payment, 70% balance shall be paid before delivery.
2)L/C: 100% irrevocable L/C at sight without "soft clauses" can be accepted.
3.What is the warranty of our quotation?
1500 working hours or half a year whichever comes first.
Other questions, please contact our sales managers.
