avant small construction machine 2.5 ton mini paylader with various attachment
1. Parameter
Main specification |
|
Rated Load |
2500 kg |
Operating Weight |
7400 kg |
Bucket Capacity |
1.3m³ |
Bucket Width |
2235mm |
Dimensions L*W*H(mm) |
7065x2235x3095 mm |
Engine Model |
WEICHAI DEUTZ |
Rated Power |
92kW |
Max. Torque |
500Nm |
Max.Drawbar Pull |
92kN |
Max. Breakout Force |
130kN |
Hydraulic System Pressure |
16 MPa |
Steering Angle Left/Right |
36º±1º |
Minimum Turing Radius (Over Rear Tire) |
5029 mm |
Minimum Turing Radius (Over Bucket ) |
5500 mm |
Transmission Type |
YJ320B/BEILIAN280 |
Speed Gears |
F2/R2 |
Brand |
Meritor/Hualu |
Front Axle |
Fixed with calipers |
Rear Axle |
Fixed with Osc.frame and calipers |
Service Brake |
Single circuit,oil brake |
Parking Brake |
hand operated |
Tire |
17.5-25 |
Type |
Wave pattern |

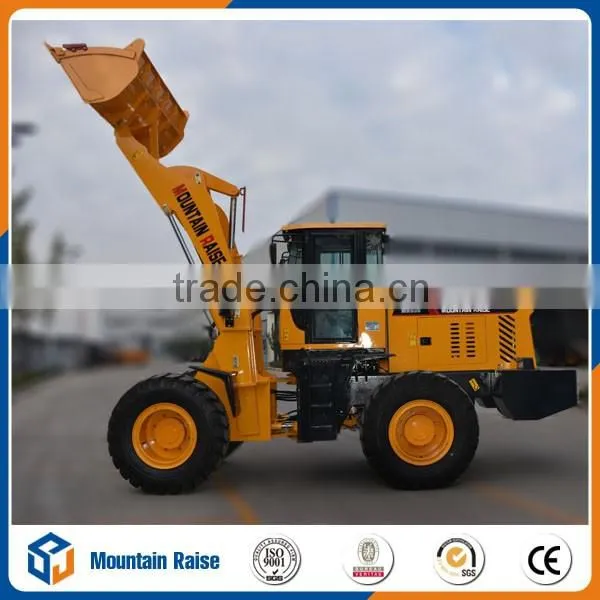

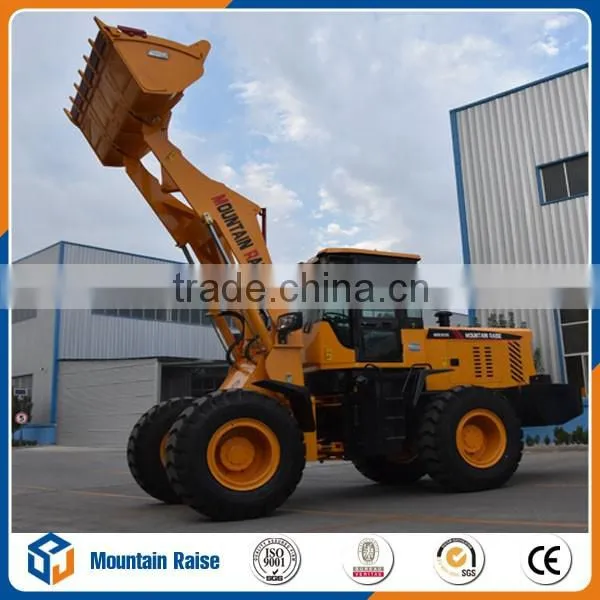

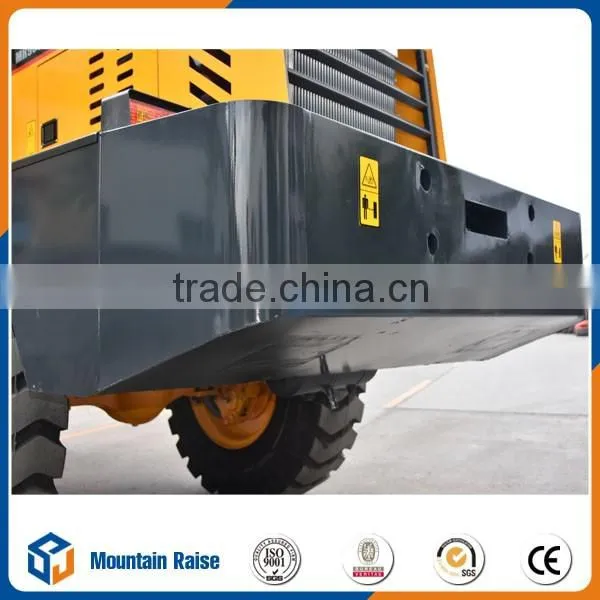

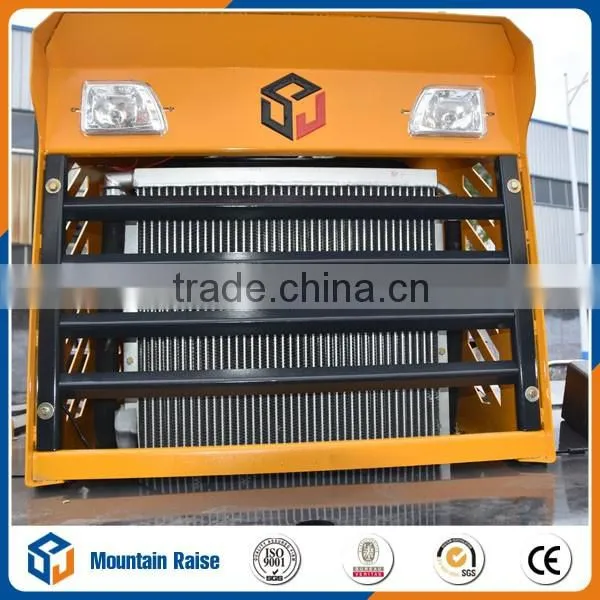

2. Product Picture
Standard Configuration
1> Rated load 2.5 ton
2> Hydraulic pilot control
3> Rear view camera and LED lamps
4> Fully hydraulic steering system, easily Operation
5> New design cabin, more space and comfortable
6> Heater and air conditioner for optional.
7> Various working devices of attachments, such as pallet fork, snow bucket,log/grass fork, anger drill..

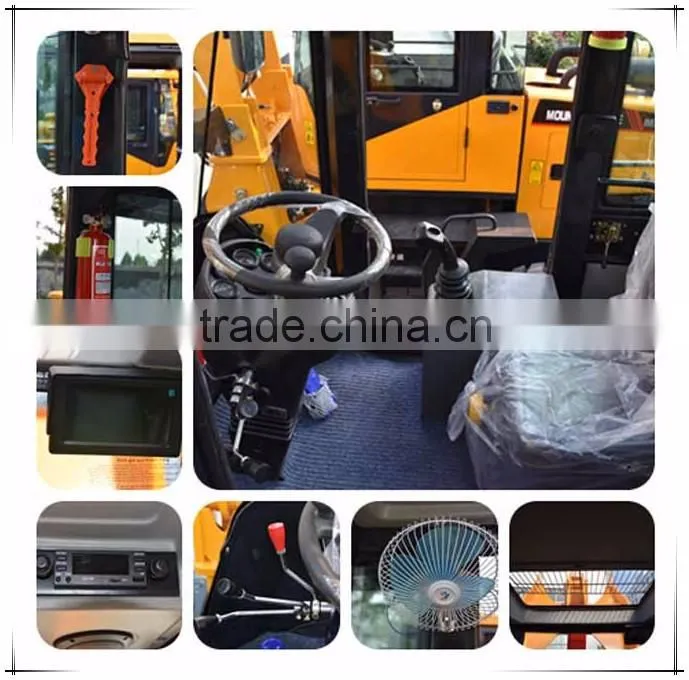

Cab Detail:
With rear view camara, skylight,hammer
Open view for operator
New design for big space and comfortable
Double low-high speed control handle
Hydraulic pilot control, easy for operate

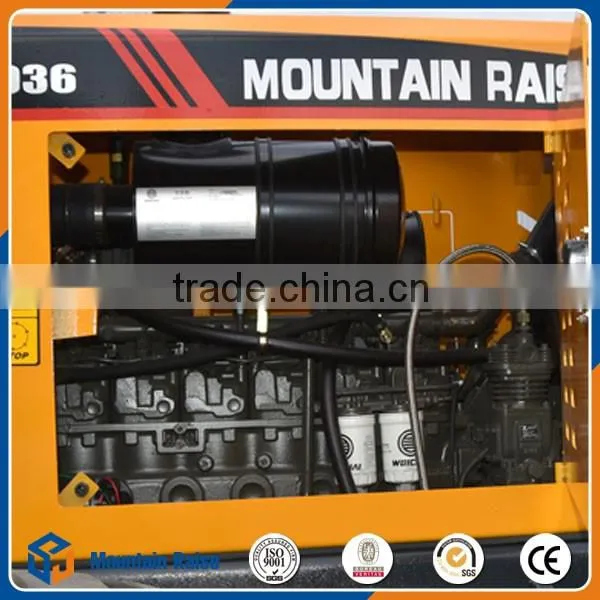

Engine Power:
Famous Brand engine,Germany technoligy
Deutz 92kw more powerful

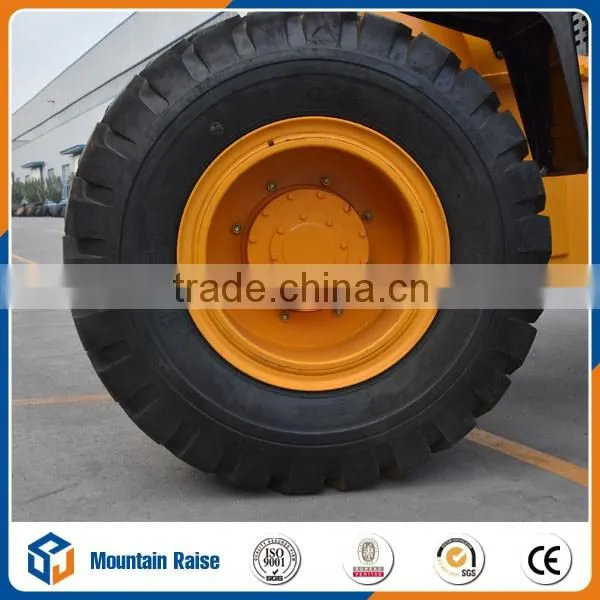

Moving Tire:
25layer high pressure tiye, can load more weight
prolong tire life
3. Factory Show
Shandong Mountain Raise Heavy Industry Machinery Co.,Ltd is specialized in wheel loaders, terrain forklift, backhoe loader and agricultural machines as a manufacturer and exporter in China, all of our products are CE and TUV certification.
4. Fast Delivery
1. 2 sets in 1*40HQ
Triangle wood and 100mm wire fixed
2. Delivery time: 10 days after receiving your deposit
3. Payment term:30% deposit;70%balance before shipping
5. World Wide Customer

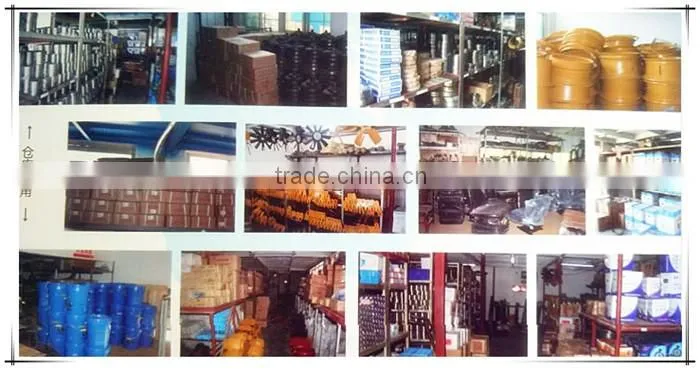

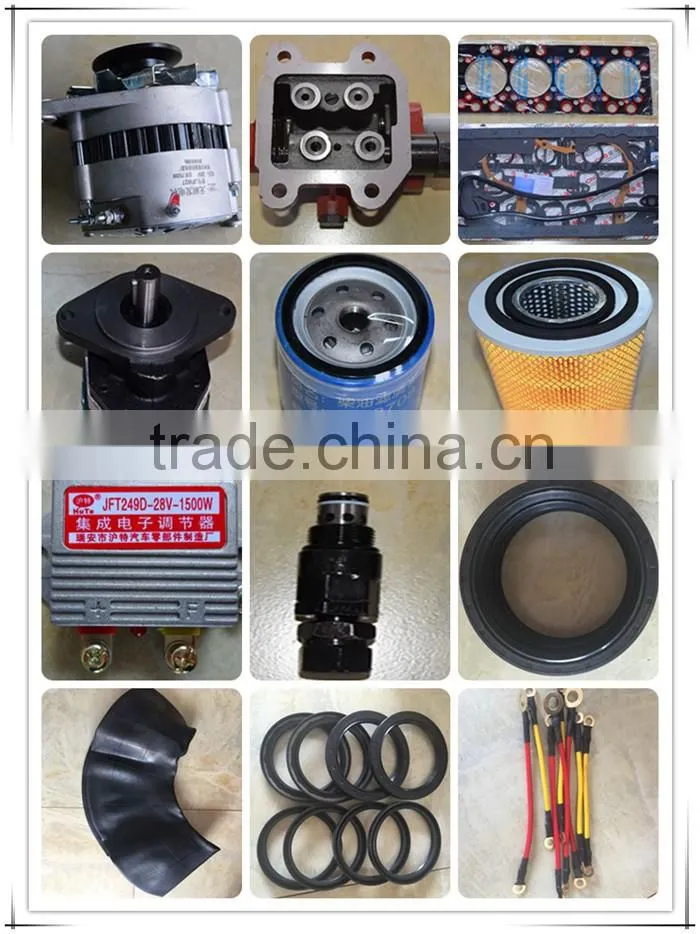

6. Warranty and spare parts
WE ARE ON LINE @24*7 HOURS, IF HAVE ANY MORE COMMNETS, PLEASE CONTACT US.
