"TAISHAN" BRAND DB2000-1A DIESEL FUEL INJECTION PUMP TEST BENCH TEST MACHINE PERFORMANEC

Quick Details

• Place of Origin: Shandong, China (Mainland)
• Brand Name: Taishan
• Model Number: DB2000-IIA
• Power: Electronic

Packaging & Delivery

<:article id=richTextContainer>

Specifications

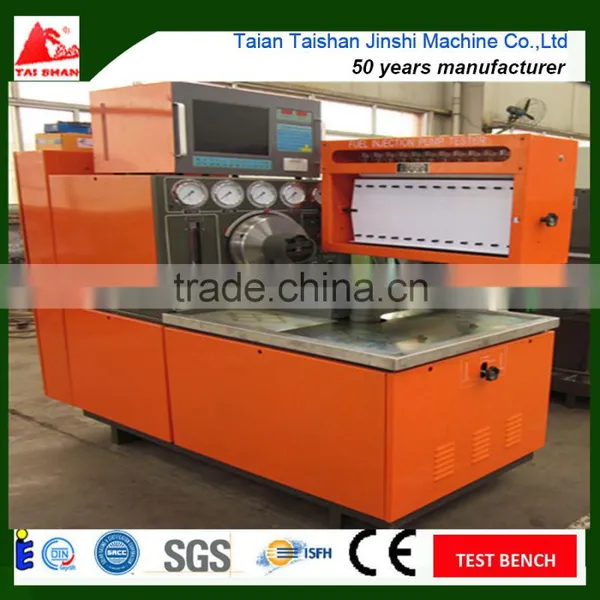

DB2000 series fuel injection pump test bench
This fuel injection pump test bench is a new digital indicating test stand designe

MODEL:

DB2000 SERIES FUEL INJECTION PUMP TEST BENCH

DESCRIPTION:

DB2000 series fuel injection pump test bench is a new digital indicating test stand designed in order to meet customers demands. It adopts advanced technology of frequency conversion, speed change and industrial controlling computer with the advantages of wide speed-regulation, steady performance and convenience operation. The test stand also has compact structure, reasonable distribution, elegant shape, especially it is easy to install and operate. Technical data includes rotating speed, oil measuring frequency and oil temperature can be indicated digitally and printed easily. Its ideal adjusting equipment of all kinds of injection pump.

 MAIN FUNCTIONS

1.The amount and uniformity of oil supply in each cylinder of injection pump

2.The start point and interval angle of oil supply of injection pump

3.The adjusting and testing of speed regulators working performance

4.The test of sealing performance of injection pump

5.The observation of oil return amount of distribution pump at different speed

6.Check pressure compensator of distribution pump

7.Measure the working performance of advance device and air governor

8.Do experiment on air governor with vacuum detector

9.Check the injection pumps electromagnetic valve

MAIN TECHNICAL PARAMETERS:

1.Output power:5.5kw, 7.5kw, 11kw, 15kw, 18.5kw

2.Electronical supply3-Phase or 2 phase 380V or 220V/50HZ

3.Interaxe height: 125mm

4.Graduates: 45ml, 150ml

5.Volume of fuel tank: 60L

6.Feeding fuel pressure: Low:0-0.4Mpa High: 0-4Mpa

7.Range of speed: 0-4000RPM

8.Air pressure: 0~0.2

ntrol temperature of fuel oil: 40±2

10.DC.: 12V/24V

11.Opening pressure : 17.5±0.2Mpa

12.Testable cylinders of pump: 12
