12PSB DB2000-IA diesel fuel injection pump test bench High quality supplier
I. Features and usage

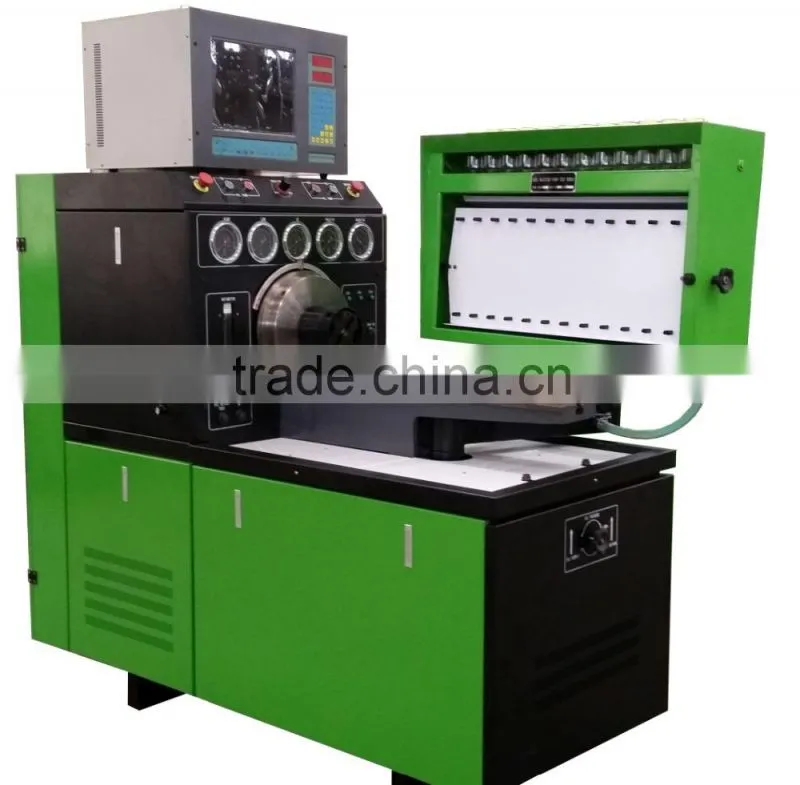

DB2000-IA injection pump test stand is a new digital indicating test stand designed in order to meet customers’ demands. It adopts advanced technology of frequency conversion, speed change and industrial controlling computer with the advantages of wide speed-regulation, steady performance and convenience operation. The test stand also has compact structure, reasonable distribution, elegant shape, especially it is easy to install and operate. Technical data includes rotating speed, oil measuring frequency and oil temperature can be indicated digitally and printed easily. It’s ideal adjusting equipment of all kinds of injection pump.
The main adjusting items of DB2000-IA injection pump test stand are as follows:
1. Test capacity and uniformity of fuel supply in each cylinder of injection pump.
2. Check supplying interval angle of injection pump statically.
3. Check working performance of mechanic and pneumatic governor.
4. Test sealing performance of injection pump.
5. Do an experiment on advance device and air governor with accessories.
6. Measure oil return capacity and pump’s inner pressure at various speeds.
7. Check pressure compensator of distribution pump.
8. Adjust working performance of vacuum governor.
II. Main technical data
Model |
DB2000-IA |
Rotating speed range of main shaft (rpm) |
0~4000 |
Rotation direction of main shaft |
Positive, negative |
Testable cylinders of injection pump |
12 |
Maximum output power (kw) |
5.5/7.5/11/15 |
Height from center line of main shaft to work table (mm) |
125 |
Capacity of fuel tank (L) |
60 |
|
Fuel supply pressure of fuel system (Mpa) Low Pressure High Pressure |
≤ 0.4 ≤ 4 |
Supply capacity of fuel system (L / min) |
≥8 |
Oil measuring frequency |
0-1000/50 |
Controlling temperature of fuel (℃) |
40±2 |
DC. voltage (V) |
12/24 |
Power of motor (kw) |
5.5/7.5/11/15 |
Pressure of air way (Mpa) |
-0.1-1 |
Overall dimension (mm) (length×width×height) |
1820×850×1700 |
Weight (kg) |
1350 |
Standard model of fuel injector |
ZS12J1 |
Opening pressure (Mpa) |
17.5±0.2 |

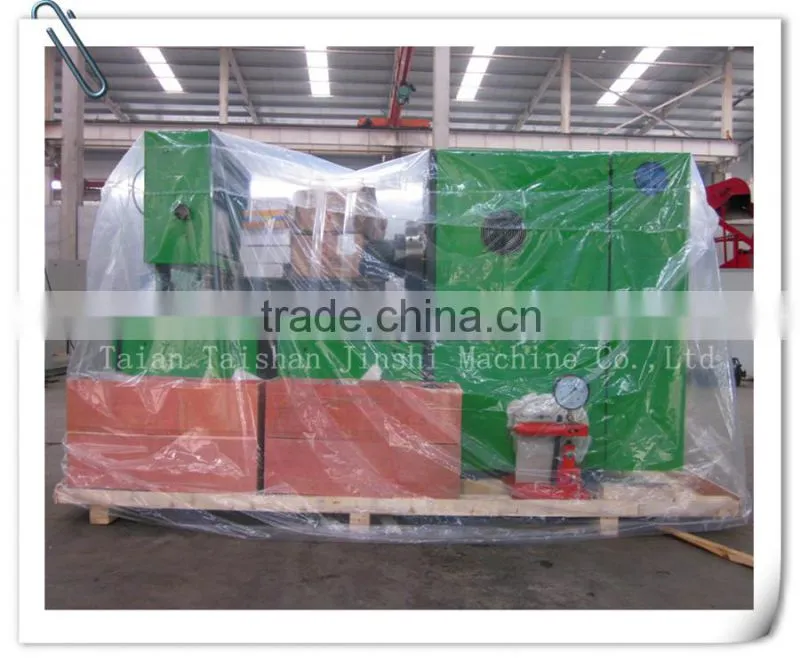

The oil-collecting tank of the test bench should be supported on the working table and the frame firmly with wooden blocks when packing.
The test bench must be covered with plastic proof and the top cover of the packing case should better be hammered with a layer of oil felt to prevent water or rain.
Avoid violent shock during transportation. Do not let the rope touch bench directly to avoid damaging surface when hoisting after unpacking.
-------------------------------------------------------------------------------------------------------------------
