Home > Products > BACKHOE LOADER > mini Backhoe Loader WZ30-25 Wheel Excavator with bucket

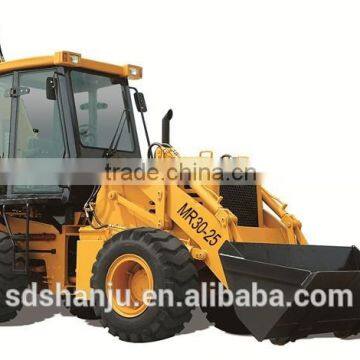

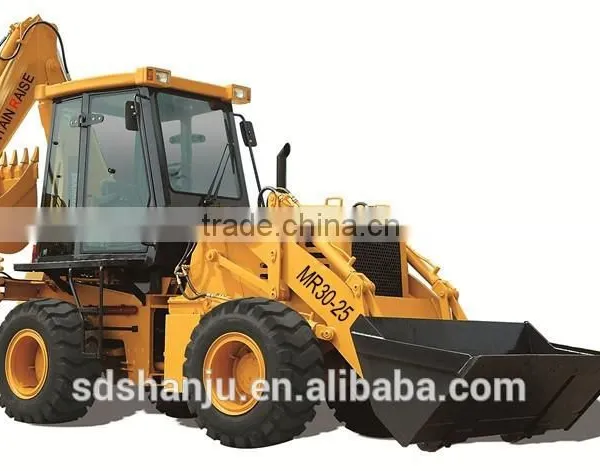

mini Backhoe Loader WZ30-25 Wheel Excavator with bucket
USD $28,000 - $30,000
/ Unit
1 Unit(Min.Order)
- 1 Unit / Units per Month
- qingdao
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition: | New | Brand Name: | MOUNTIAN RAISE | Model Number: | MR30-25 |
| Place of Origin: | Shandong, China | Type: | Backhoe Loader | Moving Type: | Wheel Loader |
| Dimension(Long * Breadth * High): | 6239*2268*3760 | Rated Load: | 2500kg | Certification: | ISO9001 / CE |
| Warranty: | 1 Year | After-sales Service Provided: | Overseas service center available |
Product Description
mini Backhoe Loader WZ30-25 Wheel Excavator with bucket
| Main Specifications | |
| Overall Dimension | 6239x2268x3760mm |
| Operate weight | 7800kgs |
| Wheelbase | 2250mm |
| Dumping distance | 1050mm |
| Max. Dumping Height | 2742mm |
| Dumping Distance of Bucket | 1062mm |
| Front Bucket Capacity | 1.0m³ |
| Front Bucket Load | 2500kg |
| Tread Width | 1640mm |
| Mini Ground Clearance | 300mm |
| Departure Angle | 19° |
| Max. Digging Depth | 4503mm |
| Back Bucket Capacity | 0.3m³ |
| Back Bucket Load | 100kg |
| Breakout Force | 38kN |
| Max.Traction Force | 39KN |
| Rotary Angel of Bucket | 190° |
| Hub Reduction Type | One-stage Hub Reduction |
| Engine | |
| Model | YTR4108G60-1 |
| Rated Power | 55kw |
| Pattern | Straight, Direct Injection, Four-stroke, Direct-spraying Combustion Chambe |
| Cylinder Number-Inner Diameter-Stroke | 4-108×120 |
| Rated Rotational Speed | 2400r/min |
| Min. Fuel Consumption | ≤216g/km.h |
| Max. Torque | ≥261.7N.M/1800r/min |
| Displacement | 4.4L |
| Transmisson System | |
| Type | Counter Shaft Power-shift |
| Clutch Pilot Oil Pressure | 1373Kpa—1569 Kpa |
| Gear Number | Two Advance Gears, Two Reverse Gears |
| Max. Speed | 22Km/h |
| Steering System | |
| Steering Gear Model | BZZ5-250 |
| Steering Angle | ±36° |
| Min. Turning Radius | 5018mm |
| System Pressure | 12Mpa |
| Torque Converter | |
| Model | YJ280 |
| Type | Single-stage, Single-phase Three-element |
| Peak Efficiency | 84.40% |
| Inlet Pressure | 0.4Mpa—0.55 Mpa |
| Outer Pressure | 1.2Mpa—1.5 Mpa |
| Cooling Type | Oil Cold Pressure Circulation |
| Drive Axle | |
| Manufacturer | Feicheng Axle Plant |
| Main Drive Type | Double-stage Reduction Type |
| Hub Reduction Type | One-stage Hub Reduction |
| Rated Axle Load | 7.5t |
| Braking System | |
| Parking Brake | Operating Force to Exert Brake,Manual Operating Force to Relieve Brake |
| Service Brake | Air-over-oil Caliper Disc Brake, External, Self-regulation,Self-balancing |
| Tyre Size | |
| Specification | 16/70-20 |
| Air Pressure of Front Tyre | 0.22 Mpa |
| Air Pressure of Rear Tyre | 0.22 Mpa |
| Hydraulic System | |
| Breakout Force of Bucket | 46.5KN |
| Breakout Force of Bucket Rod | 31KN |
| Lifting Time of Bucket | 5.4S |
| Fall Time of Bucket | 3.1S |
| Dumping Time of Bucket | 2.0S |
