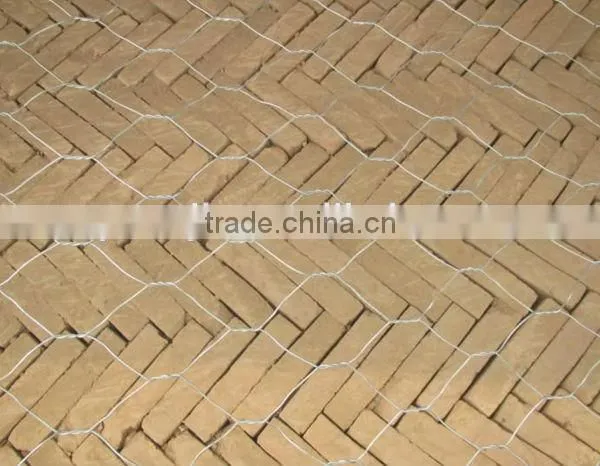

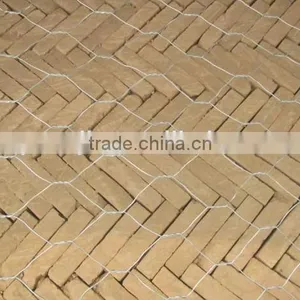

High quality Gabion Wire Mesh and stone cage

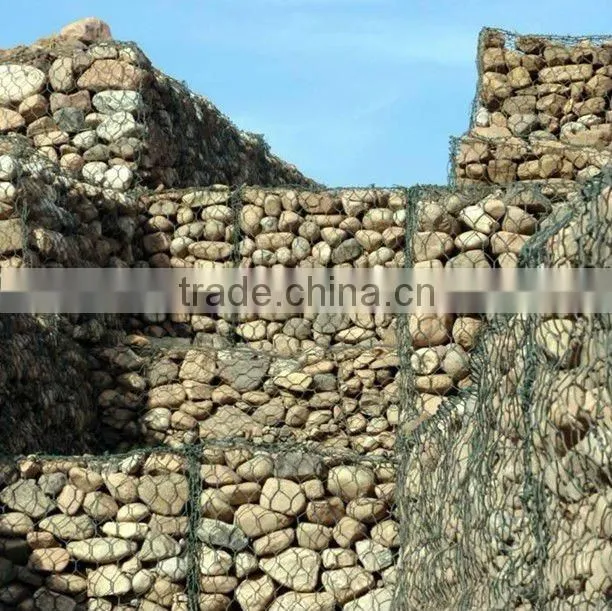

1.Gabion Mesh also named Stone Cage Mesh, is a new kind of ecological grid structure successfully applied to water conservancy project,highway, railway engineering, dike protection projects,realized the organic combination of engineering structure and ecological environment well.At the same time it has its own advantages compared with some traditional rigid structure , so it has become the frist choice structural style wordwide for protection of river bed ,landslide,debris flow and rock fall and enviroment protection.

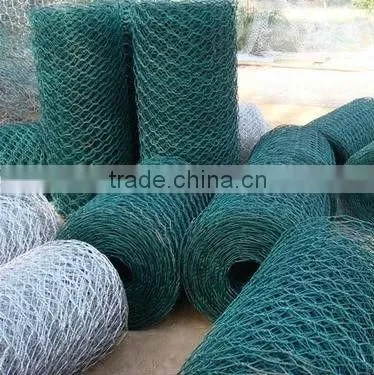

Zinc coating:240-290g/m2 materials: hot dipped galvanized and PVC coated gabion box
mesh wire: 2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm
selvedge wire diameter: 2.4mm,2.7mm,3mm,3.4mm,4mm

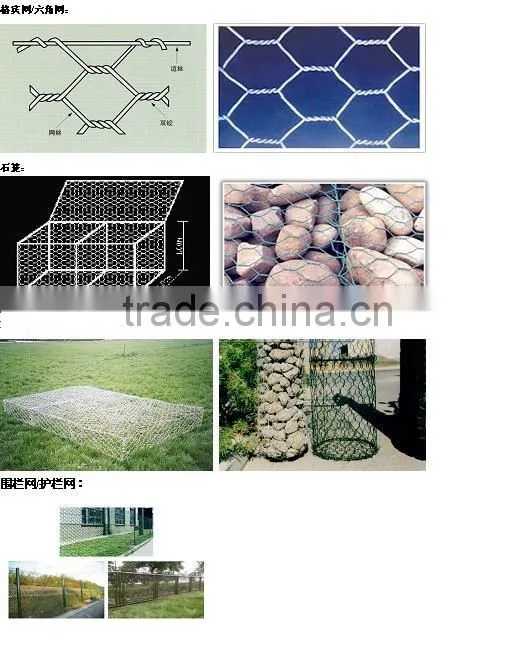

mesh hole : 6*8cm,8*10cm,10*12cm,12*15cm Tie wire/lacing wire : 2.2mm, 3%,5%,8% of weight
Box size : 2x1x1m,2x1x0.5m,6x2x0.3m,as your request
2.Feature:
(1) the economy. Just a stone into the gabions and seal it.
(2) the construction is simple, no special techniques.
(3) there is a strong withstand natural damage and corrosion and resistance to adverse climate impacts ability.
(4) can withstand a wide range of deformation, but not collapse.
(5) the mud between the stones is conducive to plant production, can be fused with the surrounding natural environment as a whole.
(6) has good permeability, can prevent the damage caused by hydrostatic. (7) to save transportation costs. It can be folded together for transport and assembly on site.
(8) environmental protection. Cadmium (cd) <10ppm, lead (Pb) <50ppm, other harmful substances such as mercury (Hg), hexavalent chromium (Cr6 +), polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE) is not detected, in full compliance with RoSH environmental standards.
3.Packing:

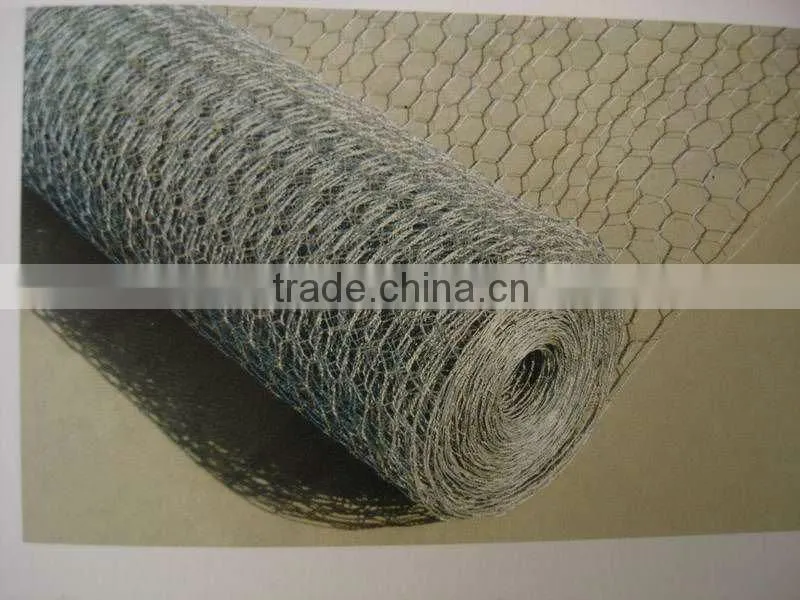

in rolls with moisture proof paper or otherwise according to specific requirements.
4.Application:
(1) control and guide the rivers and floods
(2) the diversion dam and spillway dam
(3) rock fall protection
(4) to prevent water from soil erosion
(5) bridge protection
(6) the structure of the solid earth
(7) coastal defense works
(8) port project

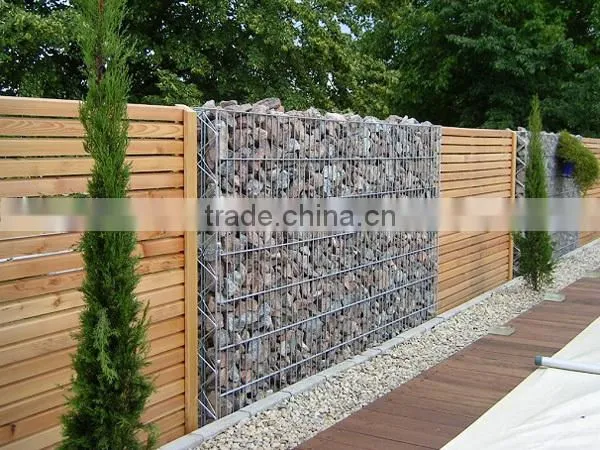

(9) Retaining Walls
(10) road protection
5. Ertification:
