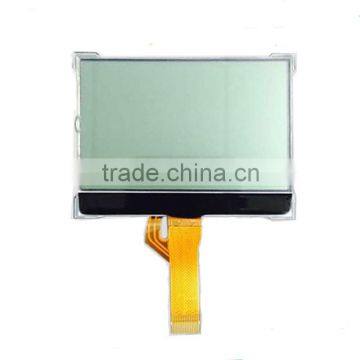

Graphic Mono LCD display with FSTN /POSITIVE /4-line SPI interface with ST7567 with 128x64 dots
US$ 2.8 - 4
/ Piece
1000 Pieces(Min. Order)
- Hongkong
You May Like
-
Graphic Mono LCD display with FSTN /POSITIVE /4-line SPI interface/ ST7567 with128x64 dots
-
Monochrome LCD 128x64 FSTN /POSITIVE LCD display graphic lcd screen ST7567 with 4-line SPI interface
-
Monochrome 16x2 dots graphic lcd display LCD module with MCU interface LCD screen
-
MonochromeLCD display with FSTN /POSITIVE graphic with 4-line SPI interfacewith 128x64 dots
-
Monochrome graphic lcd with16x2dots display with MPU interface lcm screen
-
Monochrome graphic lcd display with FSTN /POSITIVE /4-line SPI interface with 128x64 dots LCM module
Product Details
| Place of Origin | Guangdong, China | Brand Name | SAEF | |
| Model Number | SF-BS12864H-GW | Type | Graphic |
Product Description
Graphic Mono LCD display with FSTN /POSITIVE /4-line SPI interface with ST7567 with 128x64 dots
Item | Standard Value |
Display Pattern | Graphic |
Color | Mono. |
Module Dimension (W x H x T) | 65*84.4*7.8MM |
Viewing Area (W x H) | 57.6X36.6MM |
Active Area (W x H) | 55.02X32.63MM |
DOT Size (W x H) | 0.415X0.495MM |
DOT Pitch (W x H) | 0.43X0.51MM |
LCD Type | FSTN, Positive |
Polarizer Type | Transflective |
View Direction | 6H |
LCD Controller & Driver | ST7567 |
LCD Driving Method | 1/65 duty, 1/9 bias |
Interface Type | 4-line SPI |
Backlight Type | LED/Single Side |
Backlight Color | White |
DC-DC Converter | Build-in |
EL/CCFL Driver type | Build-in |
Operation Temperature | TOPL = -20 - TOPH = 70 oC |
Storage Temperature | TOPL = -30 - TOPH = 80 oC |
