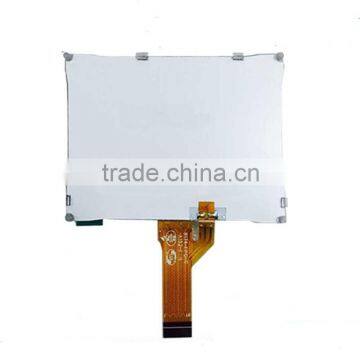

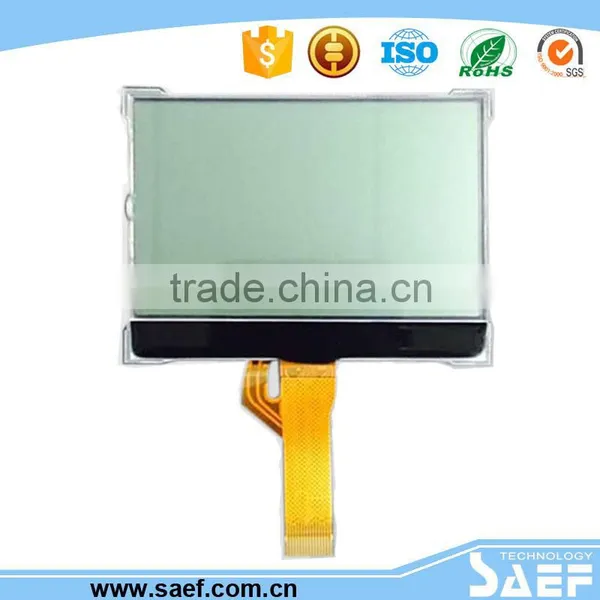

monochrome lcd panel with 128x64 and mono TFT lcd display for industrial lcd
Item |
Standard Value |
Display Pattern |
Graphic |
Color |
Mono. |
Module Dimension (W x H x T) |
65*84.4*7.8MM |
Viewing Area (W x H) |
57.6X36.6MM |
Active Area (W x H) |
55.02X32.63MM |
DOT Size (W x H) |
0.415X0.495MM |
DOT Pitch (W x H) |
0.43X0.51MM |
LCD Type |
FSTN, Positive |
Polarizer Type |
Transflective |
View Direction |
6H |
LCD Controller & Driver |
ST7567 |
LCD Driving Method |
1/65 duty, 1/9 bias |
Interface Type |
4-line SPI |
Backlight Type |
LED/Single Side |
Backlight Color |
White |
DC-DC Converter |
Build-in |
EL/CCFL Driver type |
Build-in |
Operation Temperature |
TOPL = -20 - TOPH = 70 oC |
Storage Temperature |
TOPL = -30 - TOPH = 80 oC |
customer visiting&Memorable moment
monochrome LCD workshop
monochrome LCD module package
1.What is your delivery method?
DHL , UPS , FEDEX ,TNT
2. What is the lead time of the products?
MP LT: 3-4 wks, Hot run: 2 weeks.
3. Payment methods?
T/T in advance
4. How long is the warranty period?
Generally the warranty period is one year.
5.What is the Product MOQ?
NO MQQ
6.What is the products application?
Intelligent home appliances. Medical cosmetology instrument. The car instrument. Numerical control panel etc.
