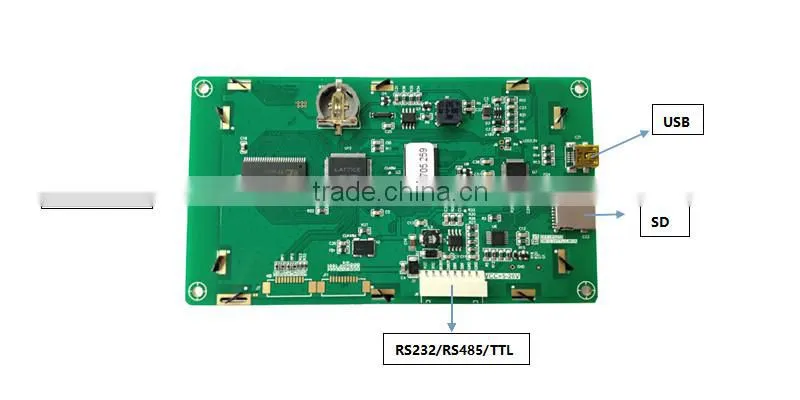

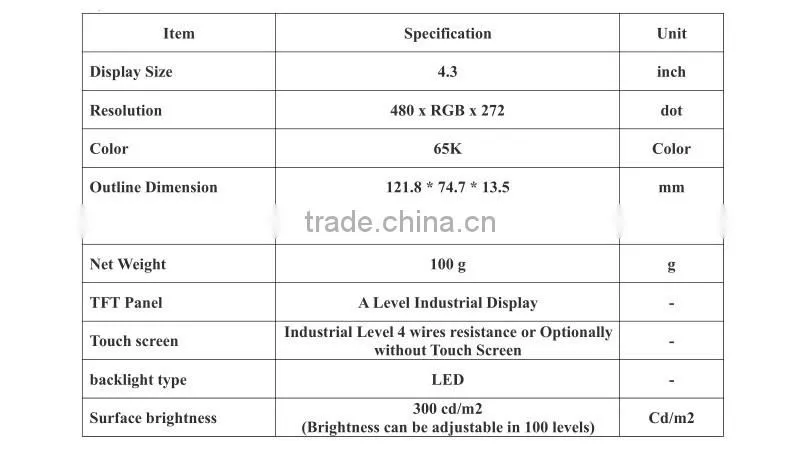

tft 4.3 " lcd RS232 / TTL interface module with controller board LCD display 480 x RGB x 272 for home application
– Built-in standard 8*12,8*16,12*24,16*32,32*64 ASCII font, 12*12,16*16,24*24GBK and
32*32,64*64 GB2312font, Customizable arbitrary windows font.
– Support downloading picture format of BMP,JPEG,WMF,PNG and GIF
– Support optional position text, picture, GIF animation and GUI display.
– Support a variety of configuration control: Button control, Text control, Meter control, ICON
control, Animation control, Progress Bar control, Slider control, the Drop-Down Menu control, QR
Code control and Select control and so on.
– Support system pop-up built-in virtual keyboard input.
– Support Chinese and English input method.
– Support sliding around toggle screen.
– Support User-defined any instruction input.
– Support User-defined any instruction output
– Support internal instructions operation, No need external MCU to realizing button mutex and
buttons with text display and so on.
– Baud Rate ranges1200-2Mbps.
– 255 grade backlight adjustment and Automatic screen saver mode.
– Support SD card field upgraded and offline production function.
APPLICATION
Widely Used In Many Various Industrial Field in over 50 Countries.
