Product Details
Place of Origin: | Guangdong, China | Brand Name: | SAEF | Model Number: | SFEM700-8048A-N |
Type: | TFT |
Product Description
LCD display RS232 / TTL interface, 800 x RGB x 480 graphic lcd module 7 inch tft for industrial field

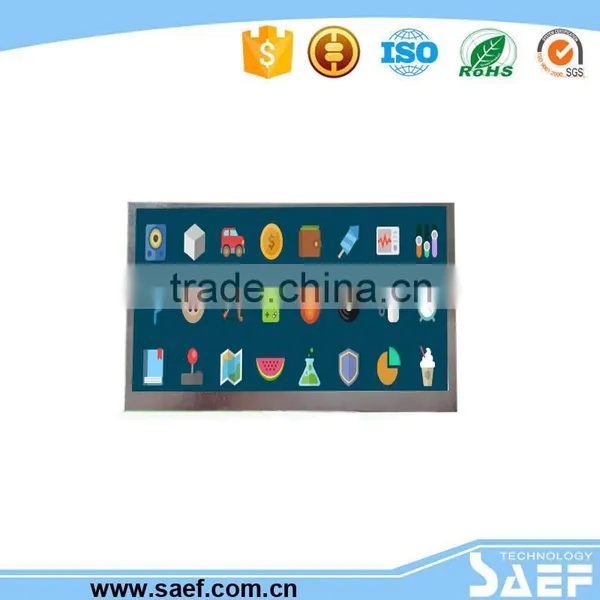

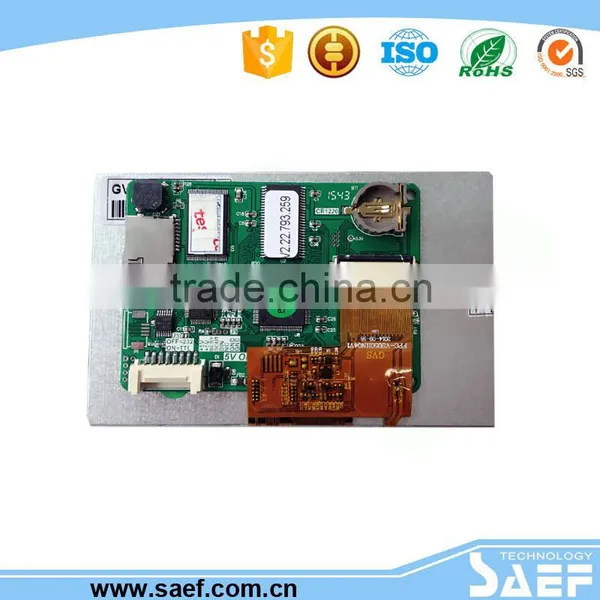

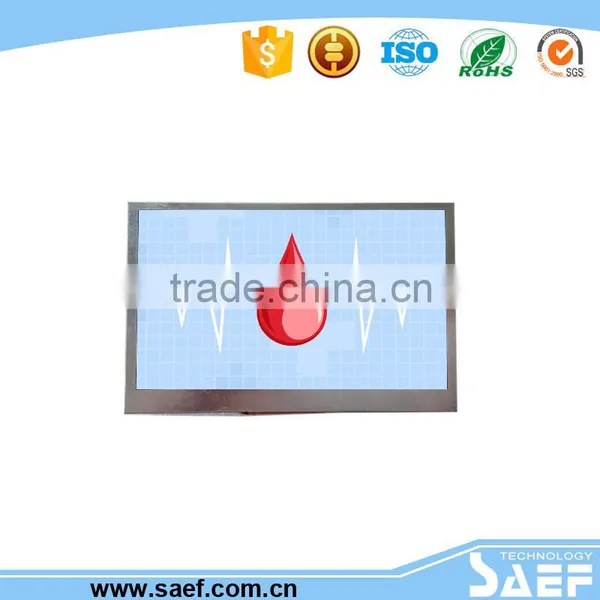

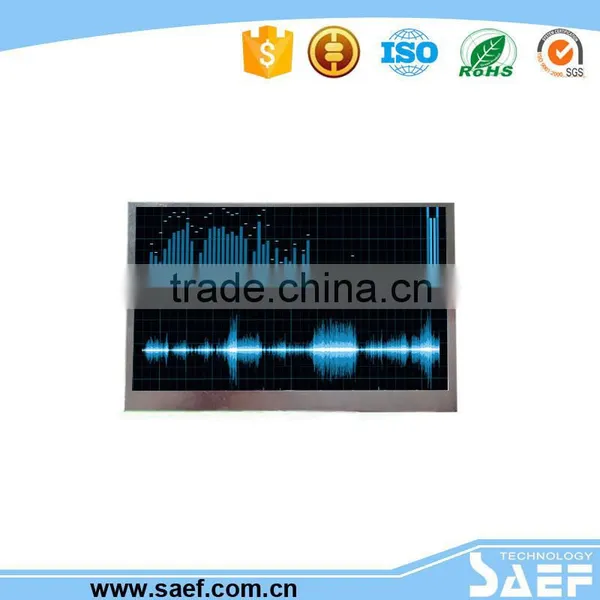

The product picture:
Physical Parameter:
Display Size | 7.0inch |
Resolution | 800xRGBx480 |
Color | 65K |
Font | ASCII,GBK,GB2323built-in,Canbedefined anyWINDOWSFont |
OutlineDimension | 190.4x110.0x17.5 mm |
VADimension | 154.0x85.9 mm |
NetWeight | 260 g |
TFT Panel | A Level Industrial Display |
Touch screen | Industrial Level 4 wires resistance or Optionally |
Backlight type | LED |
Surface brightness | 350cd/m2 (Brightnesscanbeadjustablein100levels) |
Backlight life | 30,000 hours |
Contrastratio | 500:1 |
Viewingangle | 70º/ 70º/ 50º/ 70º(L/R/U/D) |
Operating Temp. | -20 ºC ~ + 70 ºC |
Storage Temp. | -30 ºC ~ + 80 ºC |
Screen mode | Digital |
Performance parameter:
CPU | Cortex M3 + FPGA |
Interface | RS232 3.3V, CMOS/TTLInterface (ExtendtoRS485soon) |
Picture downloading | USB&SDcard&UART,SupposeUSBforRD, SDcardforMassproduction |
Flash memory | Standard1GB,Extension2GB |
PictureRemoteupgrade | Support |
Coverage | 8 |
Keyboardinterface | Supportexternalexpansion4*4matrix Keyboard |
RTC | Support |
RefreshRate | 65 Hz |
Refreshtimeforfull screenpicture | 48 ms (Industry Leading) |
RefreshTimeforSingle color | 7.5ms (Industry Leading) |
TextDisplaySpeed | 16*16dotmatrix:0.35ms (IndustryLeading) |
Memoryamountfor picture | 208images |
Voltage range | 5.0–26.0 V |
Power | Vdd x Idd |
General description:
· With CPU & Driving Device
· Controlled by any MCU with CPU & Driving Device
· Display Picture / Text / Curve / Video via Commands
· 65K color TFT display
· With / Without Resistive Touch Screen
· RS232 / TTL interface, with USB port, SD card and UART
· Wide voltage range (5V – 35 V )
· Widely used in many industrial field
· Easy to use. Powerful function. Saving cost and time.
Hardware characteristics and function:
– Built-in standard 8*12,8*16,12*24,16*32,32*64 ASCII font, 12*12,16*16,24*24GBK and
32*32,64*64 GB2312font, Customizable arbitrary windows font.
– Support downloading picture format of BMP,JPEG,WMF,PNG and GIF
– Support optional position text, picture, GIF animation and GUI display.
– Support a variety of configuration control: Button control, Text control, Meter control, ICON
control, Animation control, Progress Bar control, Slider control, the Drop-Down Menu control, QR
Code control and Select control and so on.
– Support system pop-up built-in virtual keyboard input.
– Support Chinese and English input method.
– Support sliding around toggle screen.
– Support User-defined any instruction input.
– Support User-defined any instruction output
– Support internal instructions operation, No need external MCU to realizing button mutex and
buttons with text display and so on.
– Baud Rate ranges1200-2Mbps.
– 255 grade backlight adjustment and Automatic screen saver mode.
– Support SD card field upgraded and offline production function.
– Customization based on customer’s demand.
Standard specification for reliability:
Functions, performance, appearance, etc. shall be free from remarkable deterioration within
50,000 hours under ordinary operating and storage conditions room temperature (25±10℃), normal
humidity (45±20% RH), and in area not exposed to direct sun light. (Life time of backlight, please refer to Data about backlight.)
Testing report:
Widely Used In Many Various Industrial Field in over 50 Countries.
