TFT 5 " lcd module 800 x RGB x 480,RS232 / TTL interface LCD display Widely used in many industrial field

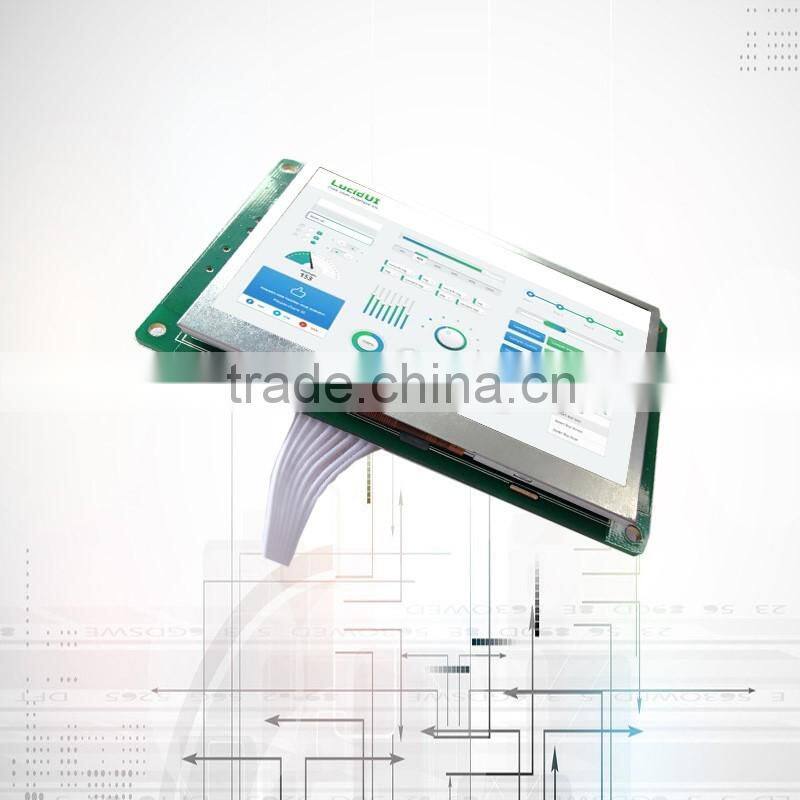

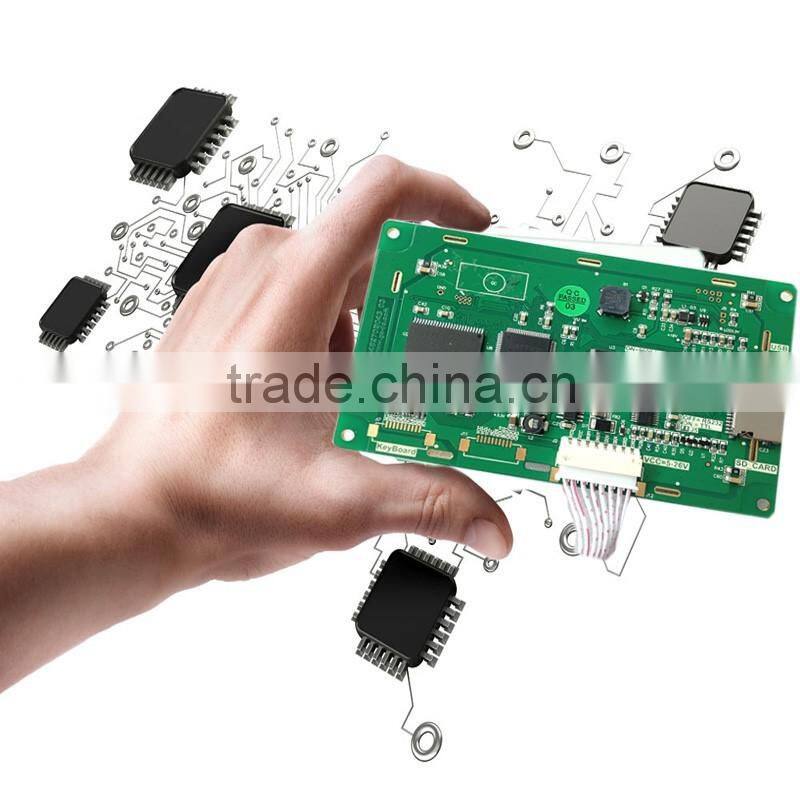

The product picture:
Physical Parameter:
Display Size |
5.0 inch |
Resolution |
800 x RGB x 480 |
Color |
65K |
OutlineDimension |
143.7 * 81.0 * 13.5 mm |
VADimension |
108.0 x64.8 mm |
NetWeight |
260 g |
TFT Panel |
A Level Industrial Display |
Touch screen |
Industrial Level 4 wires resistance or Optionally |
Backlight type |
LED |
Surface brightness |
350cd/m2 (Brightnesscanbeadjustablein100levels) |
Backlight life |
30,000 hours |
Contrastratio |
500:1 |
Viewingangle |
70/70/50/70(L/R/U/D) |
Operating Temp. |
-20 ºC ~ + 70 ºC |
Storage Temp. |
-30 ºC ~ + 80 ºC |
Screen mode |
Digital |
Keyboard interface |
Support external expansion 4 * 4 matrix Keyboard |
Performance parameter:
CPU |
Cortex M3 + FPGA |
Interface |
RS232 / TTL UART Interface (Extend to RS485 so on ) |
Picture downloading |
MiniUSB2.0(12Mbps) & SD card |
Flash memory |
Standard 128 m, Extension 2 GB |
RefreshRate |
60 Hz |
Refresh time for full |
48 ms ( Industry Leading) |
Refresh Time for Single |
7.5 ms (Industry Leading) |
Memoryamountfor picture |
208images |
Text Display Speed |
16*16 dot matrix: 0.35 ms (Industry Leading) |
Voltage range |
5.0 - 26.0 V |
Power |
Vdd x Idd |
Hardware characteristics and function:
Built-in standard 8*12,8*16,12*24,16*32,32*64 ASCII font, 12*12,16*16,24*24GBK and
32*32,64*64 GB2312font, Customizable arbitrary windows font.
– Support downloading picture format of BMP,JPEG,WMF,PNG and GIF
– Support optional position text, picture, GIF animation and GUI display.
– Support a variety of configuration control: Button control, Text control, Meter control, ICON
control, Animation control, Progress Bar control, Slider control, the Drop-Down Menu control, QR
Code control and Select control and so on.
– Support system pop-up built-in virtual keyboard input.
– Support Chinese and English input method.
– Support sliding around toggle screen.
– Support User-defined any instruction input.
– Support User-defined any instruction output
– Support internal instructions operation, No need external MCU to realizing button mutex and
buttons with text display and so on.
– Baud Rate ranges1200-2Mbps.
– 255 grade backlight adjustment and Automatic screen saver mode.
– Support SD card field upgraded and offline production function.
– Customization based on customer’s demand.

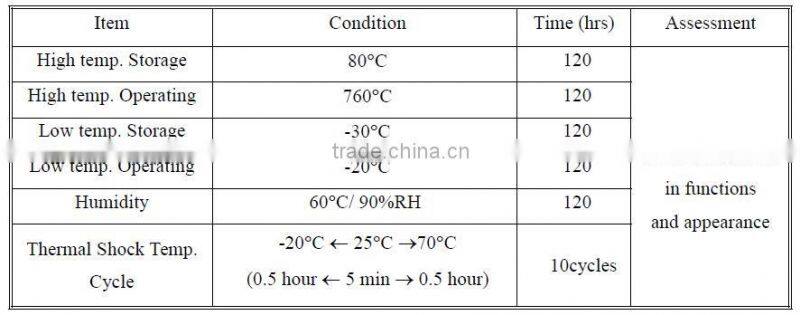

Standard specification for reliability:
Functions, performance, appearance, etc. shall be free from remarkable deterioration within
50,000 hours under ordinary operating and storage conditions room temperature (25±10℃), normal
humidity (45±20% RH), and in area not exposed to direct sun light. (Life time of backlight, please refer to Data about backlight.)

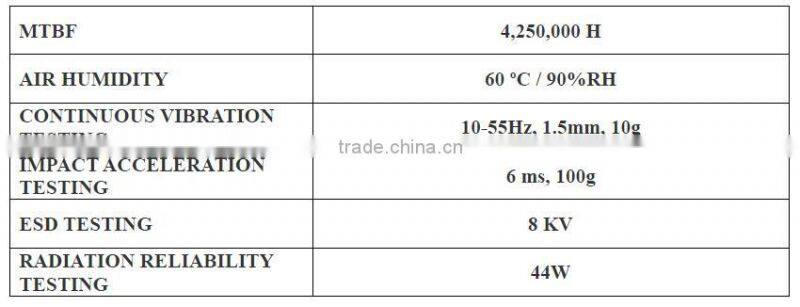

Testing report:
Widely Used In Many Various Industrial Field in over 50 Countries.
