7 inch 800*480 tft lcd module with RS232 / TTL interface ,with USB port, SD card and UART

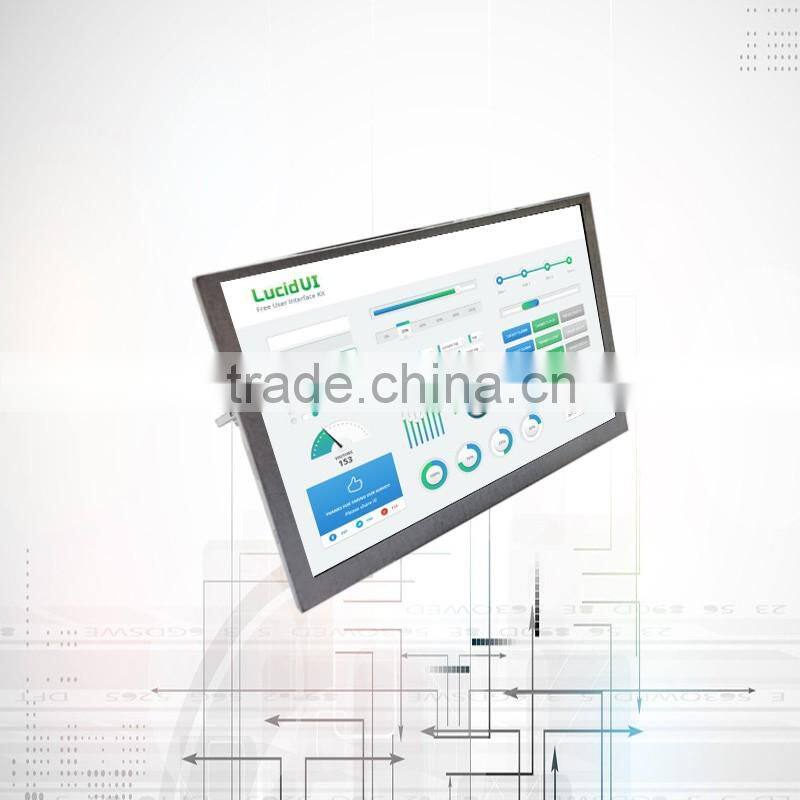

The product picture:
Physical Parameter:
Display Size |
7.0 inch |
Resolution |
800xRGBx480 |
Color |
65K |
Font |
ASCII,GBK,GB2323built-in,Can be defined any WINDOWS Font |
Outline Dimension |
190.4x110.0x17.5 mm |
VA Dimension |
154.0 x 85.9 mm |
Net Weight |
260 g |
TFT Panel |
A Level Industrial Display |
Touch screen |
Industrial Level 4 wires resistance or Optionallywithout Touch Screen |
Backlight type |
LED |
Surface brightness |
350cd/m2 (Brightnesscanbeadjustablein100levels) |
Backlight life |
30,000 hours |
Contrast ratio |
500:1 |
Viewing angle |
70º/ 70º/ 50º/ 70º(L/R/U/D) |
Operating Temp. |
-20 ºC ~ + 70 ºC |
Storage Temp. |
-30 ºC ~ + 80 ºC |
Screen mode |
Digital |
Performance parameter:
CPU |
Cortex M3 + FPGA |
Interface |
RS232 3.3V, CMOS/TTL Interface (ExtendtoRS485soon) |
Picture downloading |
USB&SD card &UART ,Suppose USB for RD, SD card for Mass production |
Flash memory |
Standard1GB,Extension2GB |
Picture Remote upgrade |
Support |
Coverage |
8 |
Keyboard interface |
Support external expansion 4*4 matrix Keyboard |
RTC |
Support |
Refresh Rate |
65 Hz |
Refresh time for full screen picture |
48 ms (Industry Leading) |
Refresh Time for Single color |
7.5ms (Industry Leading) |
Text Display Speed |
16*16 dot matrix :0.35ms (Industry Leading) |
Memory amount for picture |
208 images |
Voltage range |
5.0–26.0 V |
Power |
V dd x I dd |
General description:
· With CPU & Driving Device
· Controlled by any MCU with CPU & Driving Device
· Display Picture / Text / Curve / Video via Commands
· 65K color TFT display
· With / Without Resistive Touch Screen
· RS232 / TTL interface, with USB port, SD card and UART
· Wide voltage range (5V – 35 V )
· Widely used in many industrial field
· Easy to use. Powerful function. Saving cost and time.
Hardware characteristics and function:
– Built-in standard 8*12,8*16,12*24,16*32,32*64 ASCII font, 12*12,16*16,24*24GBK and
32*32,64*64 GB2312font, Customizable arbitrary windows font.
– Support downloading picture format of BMP,JPEG,WMF,PNG and GIF
– Support optional position text, picture, GIF animation and GUI display.
– Support a variety of configuration control: Button control, Text control, Meter control, ICON
control, Animation control, Progress Bar control, Slider control, the Drop-Down Menu control, QR
Code control and Select control and so on.
– Support system pop-up built-in virtual keyboard input.
– Support Chinese and English input method.
– Support sliding around toggle screen.
– Support User-defined any instruction input.
– Support User-defined any instruction output
– Support internal instructions operation, No need external MCU to realizing button mutex and
buttons with text display and so on.
– Baud Rate ranges1200-2Mbps.
– 255 grade backlight adjustment and Automatic screen saver mode.
– Support SD card field upgraded and offline production function.
– Customization based on customer’s demand.
Standard specification for reliability:
Functions, performance, appearance, etc. shall be free from remarkable deterioration within
50,000 hours under ordinary operating and storage conditions room temperature (25±10℃), normal humidity (45±20% RH), and in area not exposed to direct sun light. (Life time of backlight, please refer to Data about backlight.)

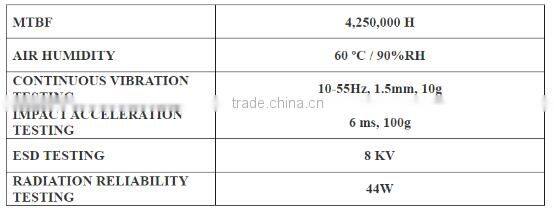

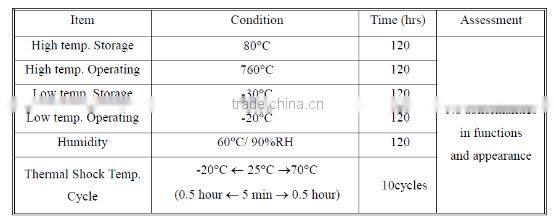

Testing report:
Widely Used In Many Various Industrial Field in over 50 Countries.
