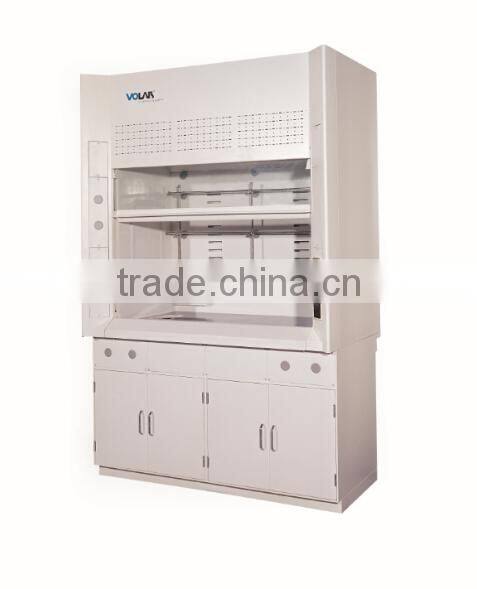

Factory Direct Sale Laboratory Fume Hood Price Fume Hood Cupboard

Size:1200*800*2350 , 1500*800*2350*, 1800*800*2350 (optional)

Upper Part

Using 1.0mm thick cold rolled steel, made through cutting, bending, welding, stamping and grinding, with surface treatment of acid washing, phosphating and epoxy electrostatic powder coating, impact test qualified, lined with 5mm thick compact panel, providing three-stage exhaust design, control panel is located on the side plate for convenient observation and operation.

Lower Part

Using 1.0mm thick cold rolled steel with Epoxy powder coating, with embedded aluminum alloy handle and 316L stainless steel hinge (opening maximum at 145°), providing adjustable feet which consist of stainless steel screw, nylon cover and rubber material, with anti-skidding, shock absorbing, chemical resistant, corrosion resistant and strong bearing abilities.

Viewable Window

Using :≥5mm anti-explosion toughened glass, available to stop at any height of the rain slider, the main window can slide around.

Top - Wilsonart solid physiochemical board / Trespa board / Epoxy Resin board , thickness 13/16/19mm, catcher 26mm (optional)

Accessories

Socket - anti-dust, splash proof safety socket with automatic closing lid, size of 60×60mm, 10A/16A /220V

Light - round energy saving light hidden in top ceiling, not directly contact with the air in the fume hood, easy to be replaced

Control Panel - multi-function socket, lighting , fan and fan valve control

Sink - using imported PP material , chemical resistant , corrosion resistant and organic resistant

Tap - using copper material with high gloss epoxy powder spayed surface, acid and alkali resistant, corrosion resistant, providing single/double/triple outlet types for choice, with detachable nozzle and ergonomic PP handle

Sewer System - using high-density imported PP trap, corrosion resistant, chemical resistant and organic resistant, with filtering and smelly odor blocking function.

Specific Standards

Available Opening Height : 0—800 mm

Face Velocity : 0.4—0.6m/s

Noise :<60db,

Airflow Speed:1080—1700m³/h;

Electricity :AC220V—380V/0.09—4kw
