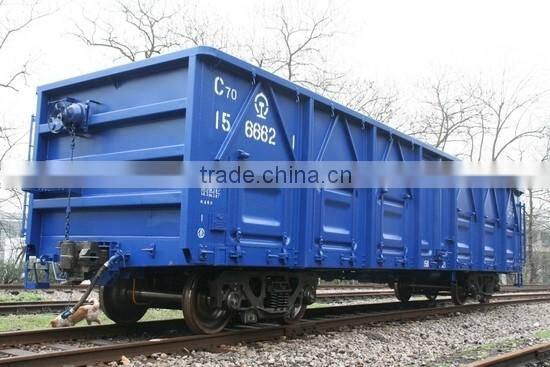

wind power plants, wind power planet carrier

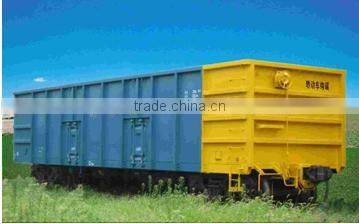

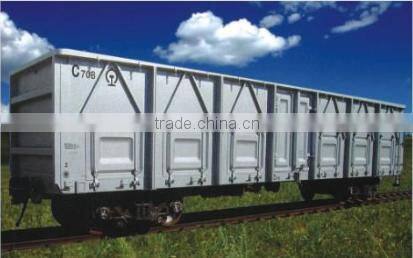

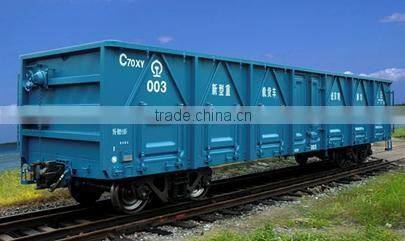

Specification
Type: G11 Gauge: 1435 standard
Bogie Type: K6 or K5 Loading capacity: 70t
Tare weight: less than 23.8t Tare-to-load ratio: 0.33
Speed: 120 km/h Volume size: 77m3
m3 per ton: 1.1 Internal width of wagon body at steel jointing channel: 2792mm
Load per meter of track: 6.69t/m Braking ratio: empty 61.3% and loaded 34%
Size: length of wagon 13976mm, fixed distance of wagon 9210mm, Max width of wagon 3243mm,Max height of wagon 3095mm, Internal length/widen/height size 13000mm/2892mm/2050mm,height from rail top to floor top when empty 1082mm,height from top of rail to coupler center when empty 800mm,
Air brake type: 120 control valve and standard chain type hand brake, Z8A roller bearing bogie,
Min radius of curvature negotiated: 145m,
Clearance limit: in conformance with Chinese National Standard GB146.1-1983 《Moving Dimensions for Locomotives and Rolling Stocks on standard gauge》
Top quality
we obtains the technology to manufacture many types of Meter-gauge and Wide-gauge railway the bogie of wagons, which can meet different requirements of all kinds of special purpuse railway and fittings wagons of the customers at home and abroad
Capability

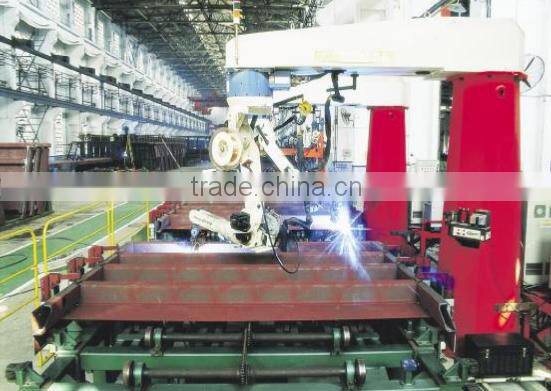

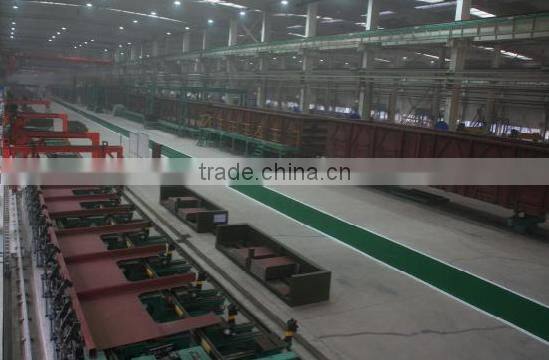

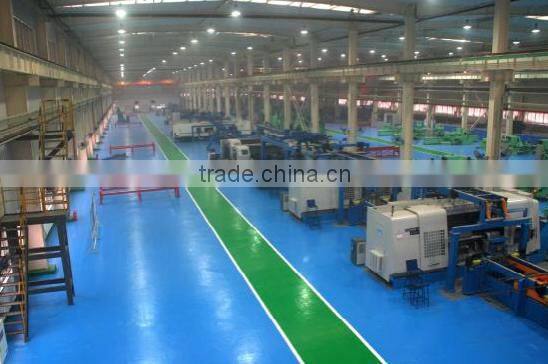

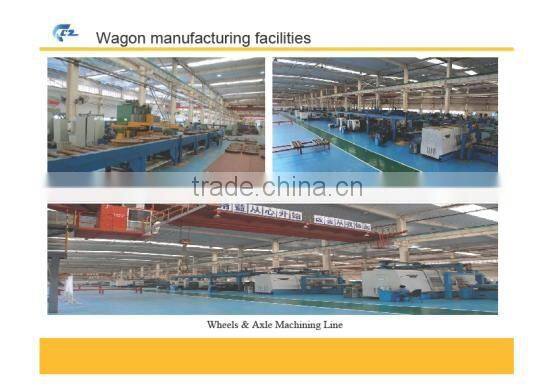

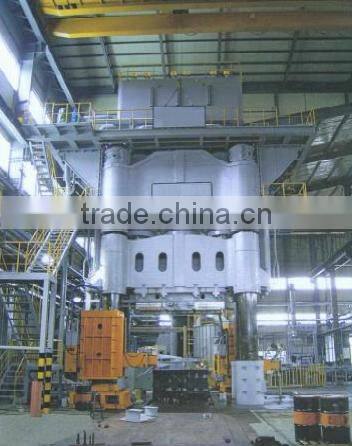

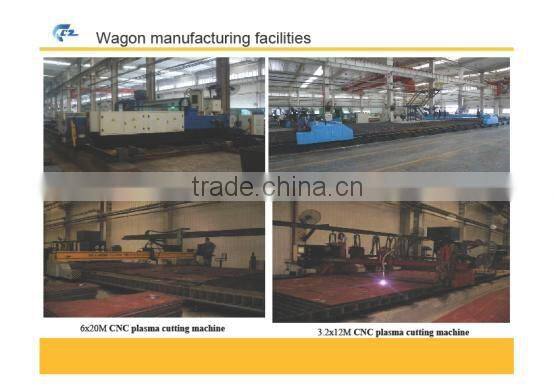

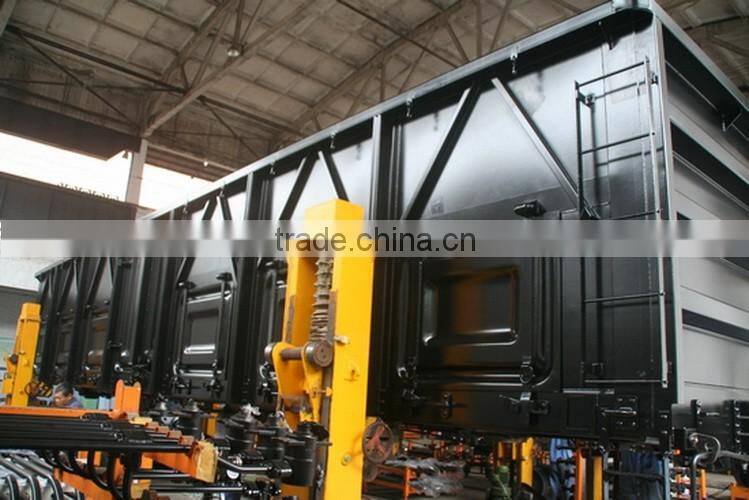

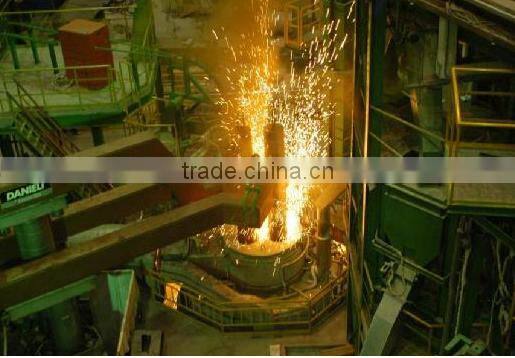

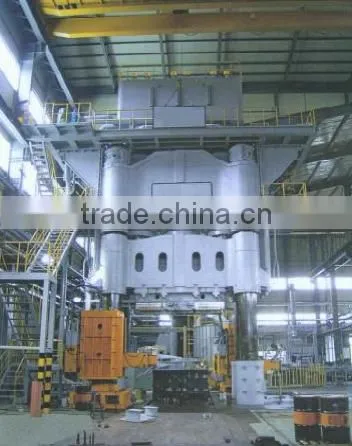

we have great production capability of Railway products, steel fabrication, forging and casting steel, heat treatment and Mechanical Machining
Diversity
we also manufacture Engineering machinery parts, fittings for ships, fitings for Automobile and other products and wind power products
our company has a strong ability in self-development and has the competitive advantage in developing railway wagon fittings of which the types and quantities are relatively many, and has developed a variety of fittings product.
Main products:
Domestic
Bolster, Side Frame, Adapter, Side Bearer Brace, wagon coupler piece, impacting brace, center plate brace, pope lug, Draw hook, forged center plate, coupler yoke, bracket, draft gear component, front cover, rear gear used in the "three-piece" bogie
Abroad:
Draft sil, joint head, coupler, russia bolsters and side frames, cast&forge center plate, E steel, C steel, E steel castings, narrow-gauge, meter-gauge, wide-gauge bogies and parts

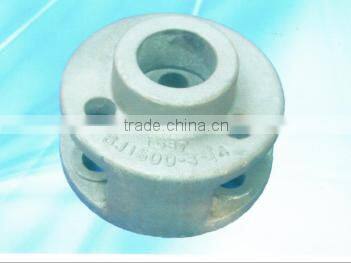

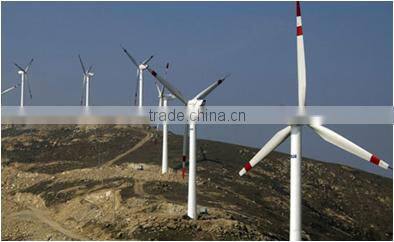

wind power plants, wind power planet carrier
Strive for the best
Favorable Comment
We are bronze supplier for the CATERPILLAR, one of the best companies in the world

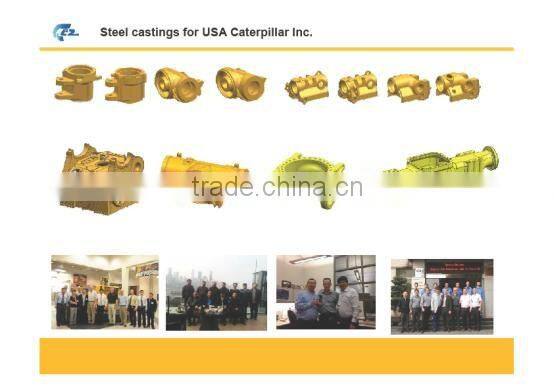

This is some of the steel castings for USA Caterpillar Inc.
The Caterpillar's visit at our factory
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
