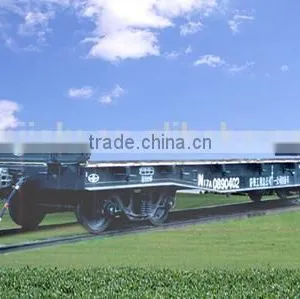

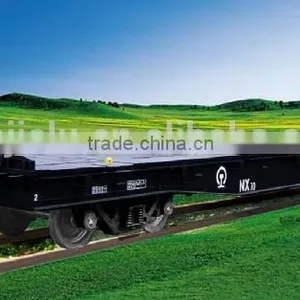

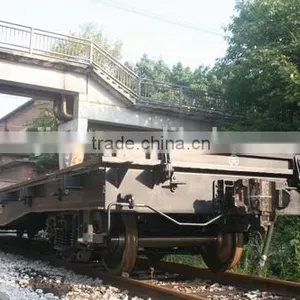

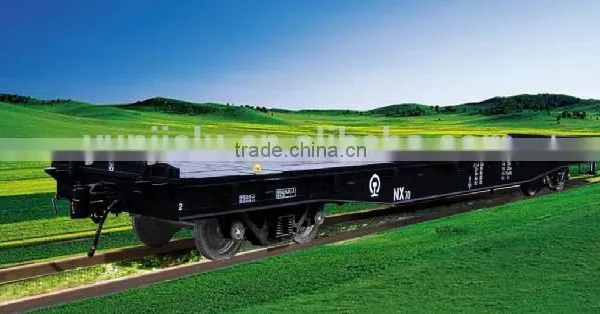

NX70 Platform Freight Wagon Manufacturer Quality Guaranteed Best Price
US$ 1 - 1
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Platform Wagon
Preload:
> 50t
Dimensions (L x W x H) (mm):
13976mm*3243mm*3095mm
Payment & Shipping
Payment Methods:
Port of Shipment:
In Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
k2 Bogie Direct From Factory Best PriceUS$ 1 - 1MOQ: 1 Set -
Railway Bogie Bolster, Sideframe Forged Bearing,,Railway Casting Bogie Parts ManufacturerUS$ 1 - 1MOQ: 1 Set
-
Railway Wagon Bogie Casting Parts, Railway Wagon ComponentsNegotiableMOQ: 1
-
Semi Trailer Railway Train Trailer Truck Reliable Chinese SupplierUS$ 10,000 - 10,000MOQ: 1 Piece
-
Stainless Steel Storage Tank, Storage Tank, G11 Type Acid Storage TankUS$ 10,000 - 10,000MOQ: 1 Set
Type
Platform Wagon
Dimensions (L x W x H) (mm)
13976mm*3243mm*3095mm
Material
Steel welding
Place of Origin
Chongqing, China
Brand Name
CQCZ
Model Number
NX70
Product Description
Specifications
Type: NX70 Gauge: 1435mm standard Bogie Type: K5 or K6
Volume size: 77m3 Loading capacity: 70t
Tare weight: less than 23.8t Axle load: 23t (+2% -1%)
Equivalent length: 1.5 High of center of gravity empty: 738mm
Tare-to-load ratio: 0.3 Load per meter of track: less than 5.73 t/m
Min radius of curvature negotiated: 145m Design Speed: 120 km/h
Braking distance: less than 1400m (loaded & emergent) Whole wagon braking leverage: 7.8
Braking ratio: empty 24.1% and loaded 17.9% (common braking level)
Clearance limit: in conformance with Chinese National Standard GB146.1-1983 《Moving Dimensions for Locomotives and Rolling Stocks on standard gauge》
Basic dimensions:
Length of wagon: 16366mm Fixed distance of wagon: 10920mm,
Length of bottom frame: 15440mm Max width of wagon: 3157mm
Max height of empty wagon: ? mm Max width of bottom frame: 2960mm
Height from top of rail to floor top when empty: 1216mm
Height from top of rail to loading face of International container when empty: 1216mm
Height from top of rail to coupler center when empty: 880mm
Wheel diameter: 840mm
Max load on loading unit length: 1m-30t , 2m-35t, 3m-45t, 4m-50t, 5m-55t
Containers loading: 45/48/50 ft international container or 1AAA/1AA/1A/1AX/1CC/1C/1CX type container stated in ISO668 items.

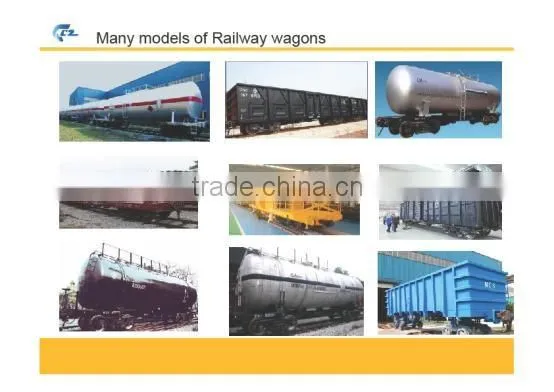

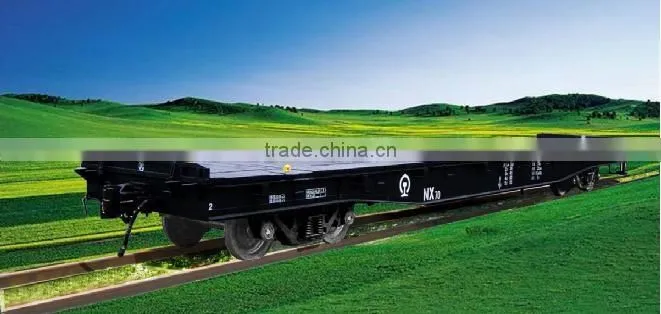

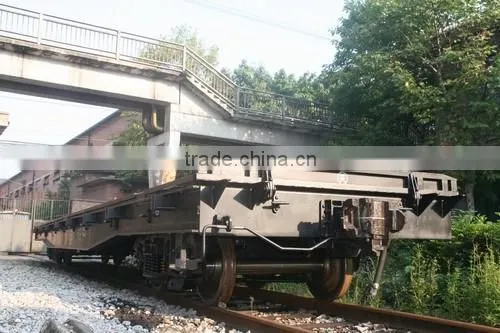

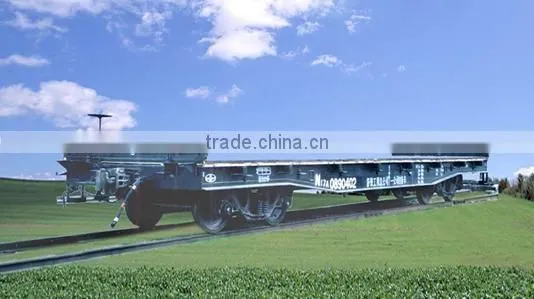

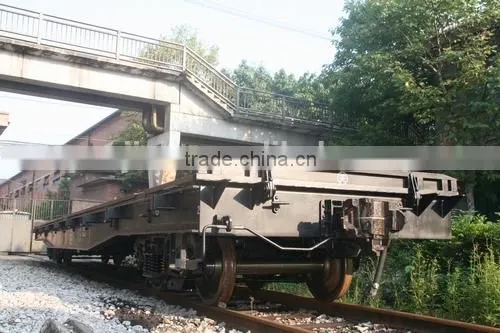

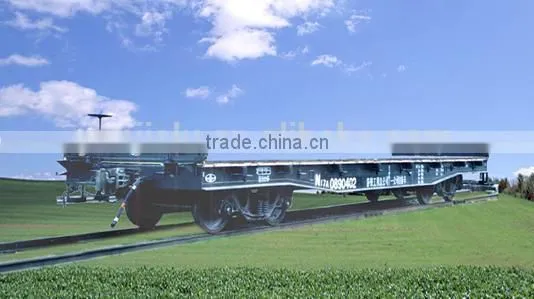

Products Show
Our Service
Top quality
we btains the technology to manufacture many types of Meter-gauge and Wide-gauge railway the bogie of wagons, which can meet different requirements of all kinds of special purpuse railway and fittings wagons of the customers at home and abroad
Capability
we have great production capability of Railway products, steel fabrication, forging and casting steel, heat treatment and Mechanical Machining
Diversity

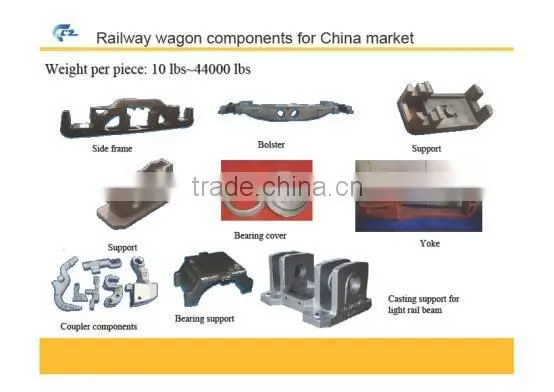

we also manufacture Engineering machinery parts, fittings for ships, fitings for Automobile and other products and wind power products
Our Company

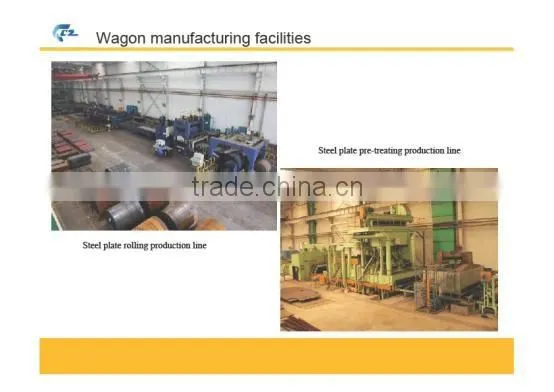

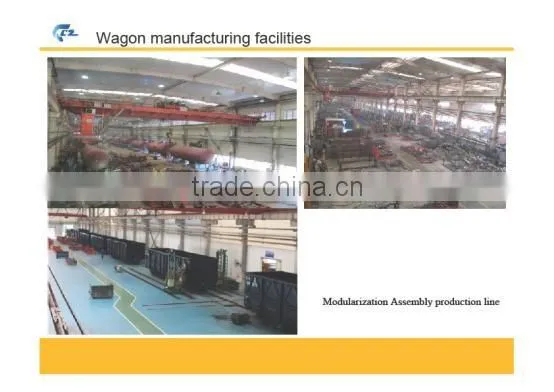

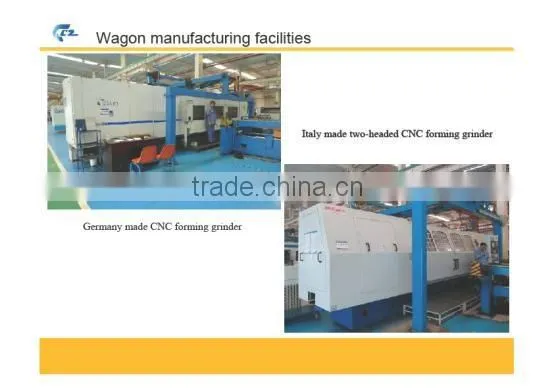

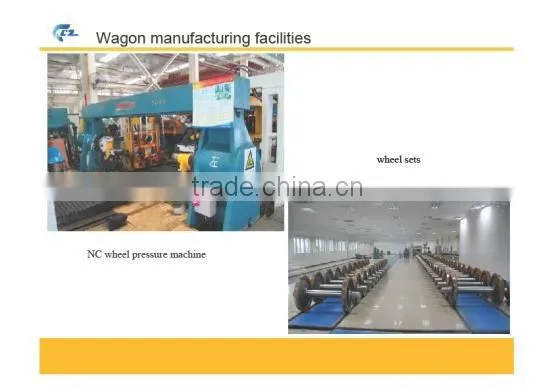

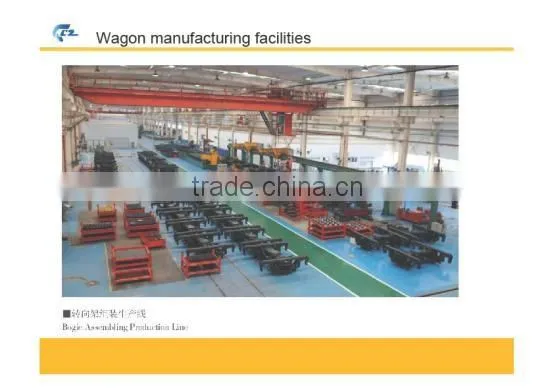

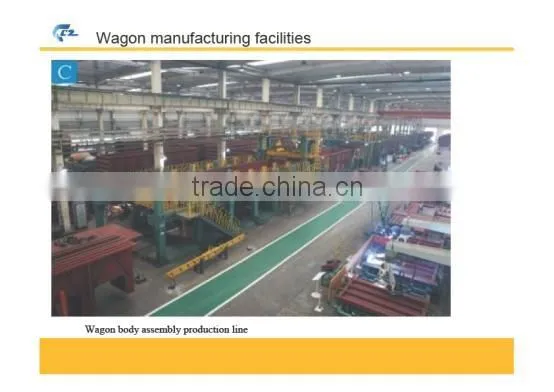

Facilities
Our Certifications
Creat for the best
CCHIC is equiped with advanced means of measuring and resting as well as perfect quality controle system, we are awarded variety of certificates.
Customer Photo
Favorable Comment
We are bronze supplier for the CATERPILLAR, one of the best companies in the world
This is some of the steel castings for USA Caterpillar Inc.
The Caterpillar's visit at our factory
