Highly Recommeded Suppliers "Taishan"_12PSDB-E Diesel Pump Test Stand
- Qingdao/Tianjin/Shanghai
- Credit Card
You May Like
-
Selected Trade Assurance Suppliers 12PSDB-E Fuel Injection Diesel Pump Test Bank
-
Test Bench Fuel Injection Pump For12 Nozzle
-
50 Years History-professional 12PSDB-E Automobile Engine Test Bed for Diesel Fuel Injection Pump Test
-
Rest Assured With Safe Sourcing- Diesel Fuel Injection Pump Test Bench 12PSDB-E
-
Top Quality 12PSDB-E Diesel Fuel Injection Pump Test Machine
-
12PSDB-E Test Strictly Diesel Engine Pumping Specification,estimated Resale Profits up tp 200%
Product Details
| Type | Fuel Pump | Size | Standard Size | |
| Car Make | Diesel Engine | OE NO. | ACT | |
| Place of Origin | Shandong, China | Brand Name | Taishan | |
| Model Number | 12PSDB-E | Warranty | 1 Years |
Product Description
---------------TaiShan jinshi --------------TaiShan jinshi --------------TaiShan jinshi---------------
To be working more safe & more convient every day .
( NEW designs for 2016 NEW YEAR)
(just FOR you ONLY by TaiShan jinshi)
Be NO1 get these new designs RIGHT NOW
The versatile and high performance component test bench 12PSDB150E same to EPS619

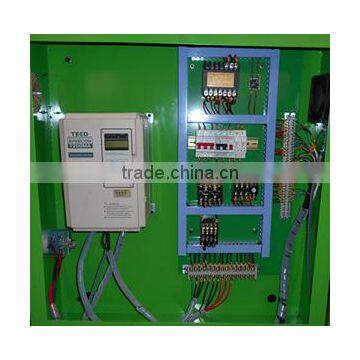

The "12PSDB-E Diesel Fuel Injection Pump Test Bench" adopt high quality frequency conversing device. speed can be preset.. Installed industrial embedded. digital meter display. Super-large digital tube display RPM, count, two sides button, convenient operation. digital meter display RPM, oil temperature, gears.etc
| Model | 12PSDB150E |
| Rotation speed range of main shaft(rpm) | 0~4000 |
| Rotation direction of main shaft | Positive,negative |
| Testable cylinders of injection pump | 12 |
| Maximum output power(kw) | 5.5,7.5,11,15,18.5,22 |
| Height from center line of main shaft to work table(mm) | 125 |
| Capacity of fuel tank(L) | 60 |
| Fuel supply pressure of fuel system(Mpa)High Pressure | ≤0.4 |
| Fuel supply pressure of fuel system(Mpa)Low Pressure | ≤4 |
| Supply capacity of fuel system(L/min) | ≥8 |
| Oil measuring frequency | 0-1000/50 |
| Controlling temperature of fuel(℃) | 40±2 |
| Dc.voltage(V) | 12/24 |
| Power of motor(KW) | 5.5,7.5,11,15,18.5,22 |
| Pressure of air way(Mpa) | 0~0.2 |
Overall dimension(mm)(length*width*height) Weight | 2000*1200*17300 780KG |
---------------TaiShan jinshi --------------TaiShan jinshi --------------TaiShan jinshi---------------
