Product Details
| Type | Fuel Pump | Size | Standard Size | |
| Car Make | Diesel Engine | OE NO. | ACT | |
| Place of Origin | Shandong, China | Brand Name | Taishan | |
| Model Number | DB2000-1A | Warranty | 1 Years |
Product Description
-------------TaiShan jinshi --------------TaiShan jinshi --------------TaiShan jinshi---------------
To be working more safe & more convenient every day .
( NEW designs for 2016 NEW YEAR)
(just FOR you ONLY by TaiShan jinshi)
Be NO1 get these new designs RIGHT NOW
---------------TaiShan jinshi --------------TaiShan jinshi --------------TaiShan jinshi---------------

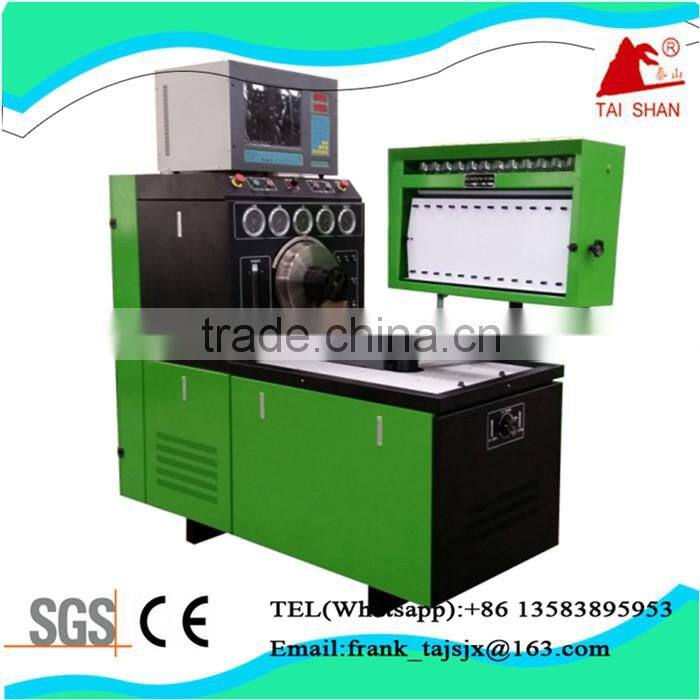

DB2000-IA high power disel fuel injection pump test bench by manufacturers
1.Frequency-changing and speed-regulation
2.Measuring fuel quantity of each cylinder at various rotation speeds
3.Checking of each line's injection timing with static
4.Checking of the mechanical speed governors
5.Checking of the electromagnetic valve of distributor pump
6.Checking of the pneumatic speed governors
7.Checking of the pressure compensators
8.Measurement of the reflux delivery of distributor pump
9.Measurement of the distributor pump's body internal pressure
10.Checking of sealing of the in-line injection pump body
11.Test of distribution pumps VE inner pressure
12.Supply engine oil lubricating(special order)
Parameter_______
Model | DB2000-IA |
Rotating speed range of main shaft (rpm) | 0~4000 |
Rotation direction of main shaft | Positive, negative |
Testable cylinders of injection pump | 12 |
Maximum output power (kw) | 5.5/7.5/11/15/18.5 |
Height from center line of main shaft to work table (mm) | 125 |
Capacity of fuel tank (L) | 60 |
Fuel supply pressure of fuel system (Mpa) Low Pressure High Pressure |
≤ 0.4 ≤ 4 |
Supply capacity of fuel system (L / min) | ≥8 |
Oil measuring frequency | 0-1000/50 |
Controlling temperature of fuel (℃) | 40±2 |
DC. voltage (V) | 12/24 |
Power of motor (kw) | 5.5/7.5/11/15/18.5 |
Pressure of air way (Mpa) | -0.1-1 |
Overall dimension (mm) (length×width×height) | 1820×850×1700 |
Weight (kg) | 1350 |
Standard model of fuel injector | ZS12J1 |
Opening pressure (Mpa) | 17.5±0.2 |
