factory price! high quality furnace fire clay brick
- 150 Ton / Tons per Month
- Qingdao
- T/T
- Magnesium oxide 90%
- Shandong supplier fiber reinforced calcium silicate board
- Placa de silicato de calcio 1000 * 500 * 50 mm
- High density thermal insulation material, high-temperature refractory lining
- High density calcium silicate board, carbon fiber, glass fiber
- High density non stick calcium aluminosilicate board
Product Details
Place of Origin: | Shandong, China | Shape: | Brick | Material: | Alumina Block |
Model Number: | fire clay brick | Brand Name: | Fame Rise |
Product Description

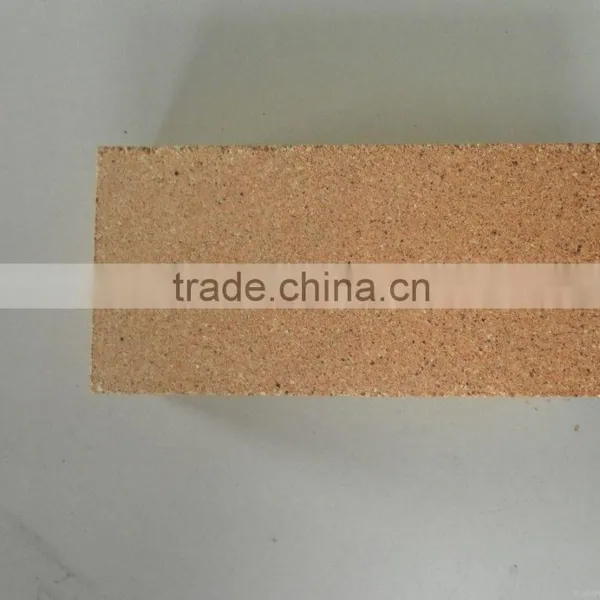

Fire Clay Brick
The main chemical components: Al2O3 content is 30%-48%, SiO2 content is 50%-65%, and a small number of alkali metals, metal oxides, etc. Mineral composition is usually mullite, quartz and glass phase. Its refractoriness is 1580-1750 °C, refractoriness under load is 1250-1450 °C, with good thermal resistance and strong ability to resist acid slag.
Fire Clay Bricks is used for lower parts of regenerators, hot blast stove, furnaces of metallurgic, building material, glass, ferrous metal and so on.
Technical Specifications:
Item | Index | |||
SK-30 | SK-32 | SK-34 | SK-35 | |
AL2O3 % (≥) | 30 | 35 | 38 | 45 |
Fe2O3 % (≤) | 2.5 | 2.5 | 2.0 | 2.0 |
Refractoriness(SK) | 30 | 32 | 34 | 35 |
Refractoriness Under Load, 0.2MPa, (°C ) | 1250 | 1300 | 1350 | 1400 |
Apparent Porosity (%) | 22-26 | 22-26 | 20-24 | 20-22 |
Bulk Density (g/cm³) | 1.9-2.0 | 1.95-2.1 | 2.1-2.2 | 2.15-2.22 |
Cold Crushing Strength (MPa) | 20 | 25 | 25 | 30 |
Thermal Expansion at 1000°C (%) | 0.8 | 0.6 | 0.6 | 0.5 |
Note:
Above are average test data, subject to reasonable variations
The AP, BD and CCS values are arithmetic mean of five individual results
Size tolerance: allowed to the extent of ±2% or ±2 mm, whichever is greater
