220V 12A Power Line Filter

220V 12A Power Line Filter photo-1

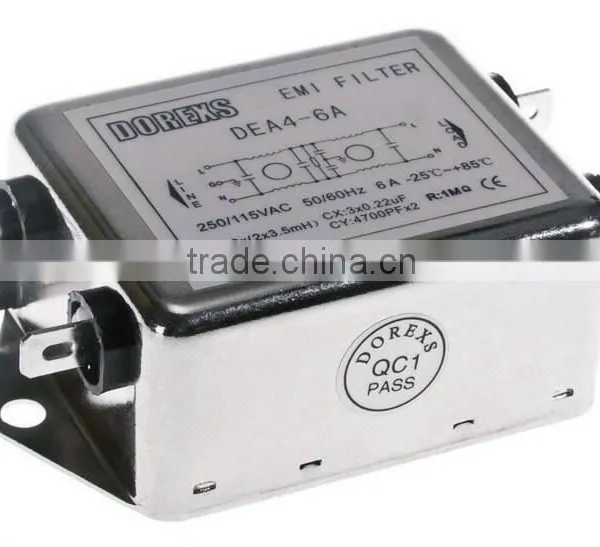

220V 12A Power Line Filter photo-2
US$ 1.3 - 2 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Bonens
Model Number:
DEA4
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzheng shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Sichuan, China
Brand Name Bonens
Model Number DEA4
Type EMI Filter
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 50/60Hz
Insertion Loss 30-100dB
Input Impedance 50Ω
Stopband Attenuation 20-100dB

220V 12A Power Line Filter  .

Product Description

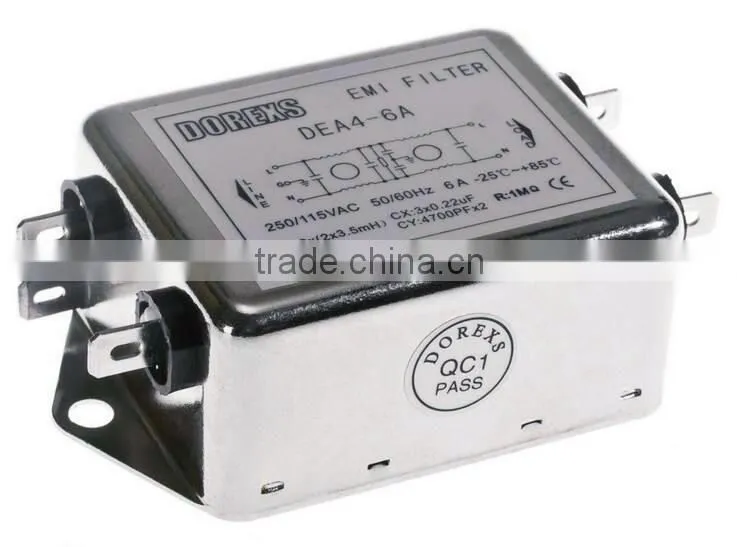

 Products Pictures show:

220V 12A Power Line Filter

Technical Parameters:

Rated voltage ………………………………………………………………………115/250VAC
working frequency ………………………………………………………....……50/60Hz
Current Rating ……………………………………………………………………….1A~100A

Pressure test………………..........................…Line - line:1500VDC ,Line - ground:1500VDC

Insulation resistance ……………………………………………………………>50MΩ@500VDC

Temperature rise ……………………………………………………………………………<30°C

Climate class …………………………………………………………………………25/085/21

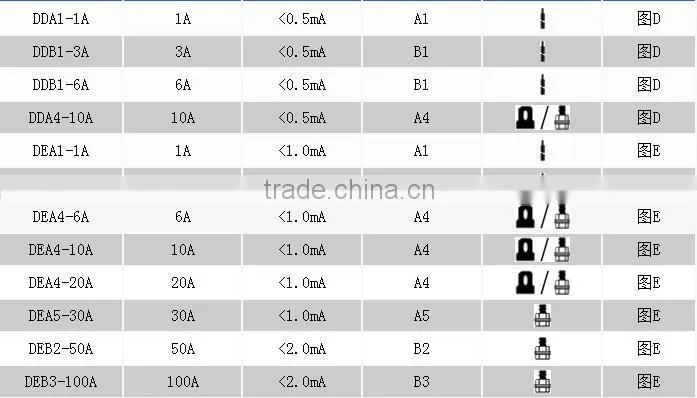

Conventional Products List:

    Model        Rated Current     Leakage current   Shell model      Link way   Circuit diagram

 220V 12A Power Line Filter

  Circuit diagram:

220V 12A Power Line Filter

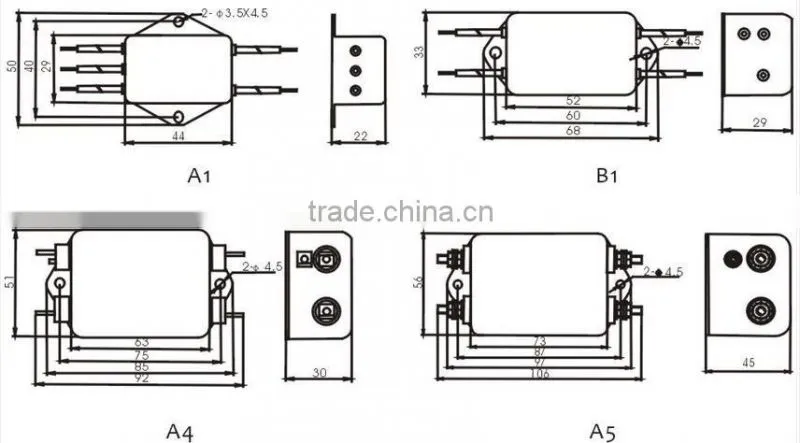

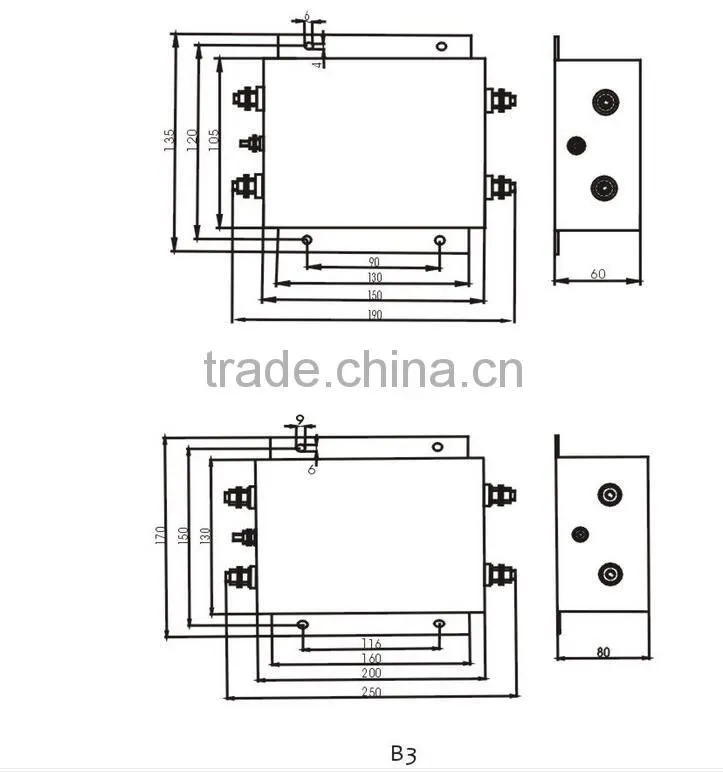

 Shell Size:

 220V 12A Power Line Filter220V 12A Power Line Filter

Insertion Loss:

220V 12A Power Line Filter220V 12A Power Line Filter

Packaging & Shipping

Quantiy Per Cartoon: 250 Pcs

Gross Weight: 12kg

Cartoon Size: 45*36*21cm

Packing Sample Photos:

220V 12A Power Line Filter

FAQ

    Q1:  How about your experience?
  A1:  We have our own professional factory and R&D department
Q2:What's your your advantage?
  A2:(1) More than 12 Years Manufactuer Experience in potentiometer&resistor&EMI filter&knobs
       (2) 8 years of Alibaba Gold Supplier.
       (3) Factory Price and OEM Provide.
       (4) Credit guarantee combination: US $17000
       (5) TUV ROHS  ISO9001 CE
       (6) Low MOQ:1 Piece
  Q3: How to ensure the quality of the product?
     A2: The safety certification of UL/CE/CQC/ROHS is a guarantee of quality.
           100% QC inspection Before Shippment.
