Home > Industrial Equipment & Components > Power Transmission Parts > Gear > Lipo Battery Voltage Tester Volt Meter Monitor 1-8S w Low Voltage Alarm

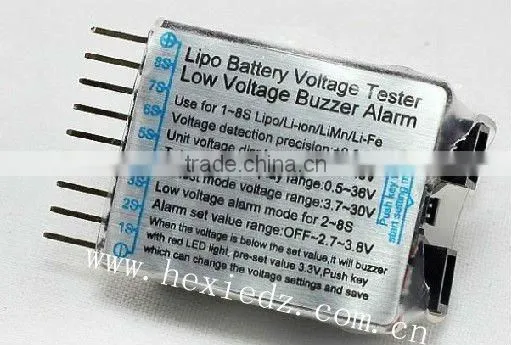

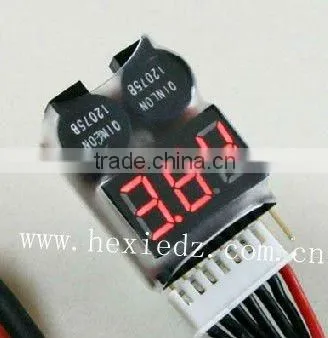

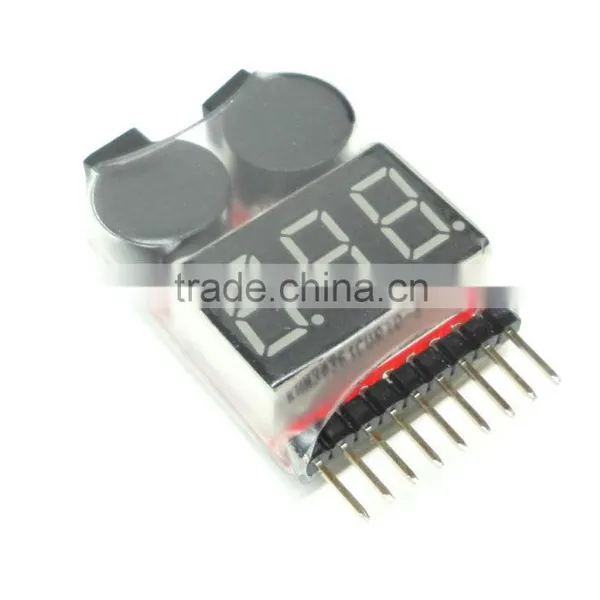

Lipo Battery Voltage Tester Volt Meter Monitor 1-8S w Low Voltage Alarm

US$ 0.5 - 0.7 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Use:

Other, Vehicles & Remote Control Toys

Place of Origin:

Guangdong, China

Brand Name:

HXE

Contact Supplier Request Quote Chat Now

Dongguan Hexie Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Use Other, Vehicles & Remote Control Toys

Place of Origin Guangdong, China

Brand Name HXE

Model Number Buzzer Alarm

Lipo Battery Voltage Meter With Programmable Buzzer Alarm : Measures 1-6 Cell Lipo Batteries, 2.8V-25.2V, For All Helicopters

New improved version with 0.01V accuracy (higher accuracy than its previous version) and 25.9V capacity per cell verses 22V or 6.2V capacity per cell on the previous version. Now you can measure voltage from either the charging or discharging leads of the battery.

Normally a battery meter only measures 2-6 cell, this one does 1-6 cell. It is a hard to find total battery monitoring device that checks your pre-flight voltage and prolongs your lipo battery lifespan because you can frequently check its voltage effortlessly. This meter measures from 1-cell to 6-cell Walkera/Novus/Trex/Eflite/Esky helicopters batteries and features single hand test operation cumbersome voltage meters with lead wires and adapters. While batteries can easily be shorted while using a standard voltage meter, the fixed leads of this meter prevents the battery's negative and positive contacts from shorting. It will also be a good idea to purchase several of these inexpensive meters, one in each helicopter case and one on your work bench, so it is always available to protect your valuable lipo investment.

How to use the meter.

This meter is designed to measure 1 to 6 cell lipo and other types of battery cell that is below 22v per cell per channel. The meter has 6 channels -one channel per cell and each channel can read up to 25.9V with auto circuit protection if it goes over. The meter can be connected to the balancing plug or the discharging plug of the battery to obtain a voltage reading. To measure the voltage the correct way, you should plug the meter into the balancing lead of the battery if you have a 5 or 6 cell batteries so each cell can be measured separately to derive a total voltage up to 37.2v (6.2v x 6 cell). The meter will first give you a total voltage reading from all 6 channels combined then it will display each cell voltage individually. Example: on a fully charged 6 cell battery, it would display 25.2v total then followed by No 1 is 4.2v, No 2 is 4.2v, No 3 is 4.2v and so on.

You can also install this small but advanced meter on board mini to larger sized helicopters so you have constant battery monitoring through out the flight. If the voltage drops below 3.3V, a small led will light up and the double alarms will buzz to give the pilot a warning. The alarm is especially useful when the helicopter is too far away for the pilot to see the led. Please note that helicopters have different operating voltage requirements so you will still need to set your own timing requirements with or without the help of the alarm.

Features

Use for 1-6S Lipo/Li-ion/LiMn/Li-Fe
Voltage Detection Precision: + or - 0.01V
Unit Voltage Display Range: 0.50 - 4.49V
Total Voltage Display Range: 0.50 - 25.9V
1S Test Mode Voltage Range: 3.3 - 13.2V
1S Test Mode Detection Precision: + or - 0.5%
Low Voltage Buzzer Alarm Mode for 2-6S

Payment

Payment: paypal or TT in advance We accept payment via paypal for small order, if for large order that we accept payment via TT (Bank transfer)

Company Profile

Hexie Electronic Technology Co.,Ltd. Is a professional manufacturer of electronic harness, silica gel line, the power cord,especially in the field of dynamic model and peripheral accessories has 15 years experience, Mainly produce cars model, ships model, planes model etc model wire, plug, medical equipment, digital surrounding etc connector products.From metal lathing parts to plastic forming, a collection of r&d,production, sales far the integration of wholly owned company.

The company has established complete quality assurance system and sound management mechanism, and adhere to the "quality first, the customer is satisfied, continuous improvement, and sustainable management" as the highest concept. Warm welcome to new and old customers and foreign businessman to patrons? Also welcome clients both at home and abroad OEM,ODM, we are willing to cooperate with you to create the bright future.

Our Services

Our Quality:Quality is the life of DOSIN We use only the best quality (original) components to ensure the standard of our product range is of the highest caliber. All products we sold out are strictly selected and tested by our QC department.

Warranty: We provide after-sales service, including quality service, guidance services, We focus on customer needs in every detail. Please contact us if you need our detail warranty term.

Shipping and packing

Shipping:We offer as many shipping options as possible, including DHL, UPS, TNT, FEDEX and EMS. the better shipping option up to you, We're looking forward to cooperation with you

Packing: 1)inside: Poly PP bag / waterproof bag

2)external: carton box

3)according customize packing
