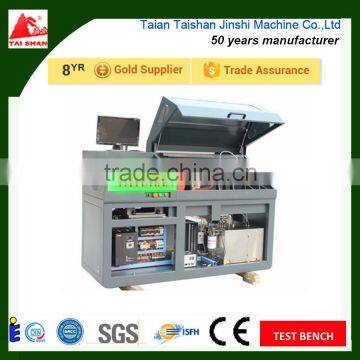

common rail injector test bench
-Characteristics
1,the machine can add to eui eup system and cam box with all adpater
2.it use original German flow sensor which is with high quality
3.the machine use the brand new and original bosch rail
4.the price of crs708C has included all the functions ,for example :test the piezo injector ,hpo pump test function ,DRV valve function and the pump delivery test function
5.the crs708C use new update common rail system which is similar with the original eps815 .
6.the machine use original CP1 pump .
>>>TECHNICAL PARAMETERS
CRS-708C common rail injector test bench | |
Voltage |
380v or 400V/50Hz or 220V/60Hz 3phase or single phase |
Power |
7.5KW 11KW 15KW 18.5KW 22KW |
Driving coupling |
ISO4008/10115 mm length 116mm |
Test oil tank capacity |
32Lt |
Certification |
CE/ISO9001 |
Operating conditions |
DTC Speed range 0-3500rpm |
Feeding pump |
Power:0.75KW Flow:6.3 L/min |
Heater |
2KW |
Measurement sensor |
Flow gauge high pressure pump 1-600 ml/min Rail high pressure gauge:0-1600bar |
Temperature range |
Measuring delta T 0-100 °C Measuring sensor Pt100 |
Test oil type |
DIN ISO 4113 |
Size |
190*98*172CM |
Weight |
1000KG |
Material |
steel |
>>>TECHNICAL DATA
1.Application: Bosch,Delphi,Denso,Siemens common rail injector and pump.
2.Pump test: measure feeding and return volume,pump chamber pressure,feeding pressure,check sealing performance, and functions of ZME valve.
3.Injector test: measure the injected fuel quantity & return volume under full-loaded, idling, pre-injection and Emission status.
4. Check the sealing performance of the injector.
5. Check the solenoid valve.
6. Clean the injector and pump before testing.
7. Clean the ZME separately.
8. Testing 6 oil injectors in one setup.
9.User can add and edit the data by themselves.
10.Save and print the testing results & customer information.
11.Support software upgrading.
-
