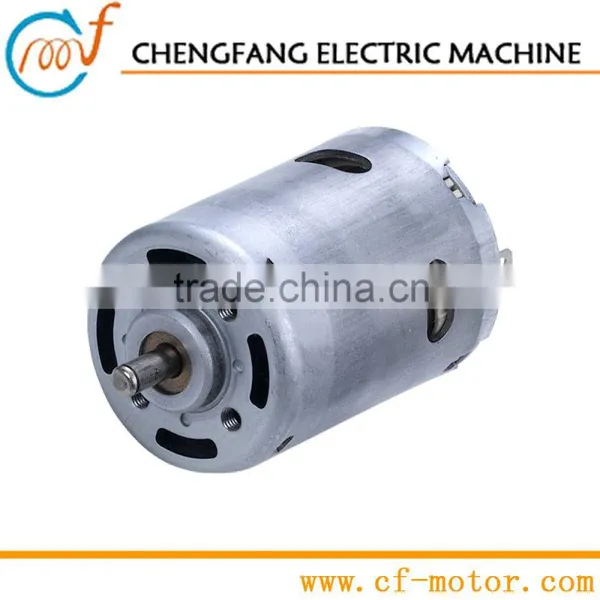

24v dc Electric Motor for Gardening Tools | RS-987H

24v dc Electric Motor for Gardening Tools | RS-987H thumbnail-1
24v dc Electric Motor for Gardening Tools | RS-987H photo-1
US$ 3.8 - 5.8 MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF Motor, Chengfang
Model Number:
RS-987, RS-987H
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CF Motor, Chengfang
Model Number RS-987, RS-987H
Usage Fan
Certification CCC, CE, ROHS, UL
Type Micro Motor
Construction Permanent Magnet
Commutation Brush

Specifications

Power Drill Motor
Electric fan motor
Model car motor Model boat motor
Weight: 485g Approx
ISO/TS16949 certified company

Power Drill Motor, fan motor, 24v dc motor





The models we list below are part of our existing designs. We offer specific motor design for every customer.





RS-987H

Model No.

Main Performance

Rated Voltage

No Load

At Maximum Efficiency

At Stall

Speed

Current

Speed

Current

Torque

Output

Eff.

Current

Torque

V

r/min

A

r/min

A

g.cm

W

%

A

g.cm

RS-987SH-3566

24.0 CONST

4,000

0.38

3,432

1.49

795

27.13

75.49

9.05

4350

RS-987SH-4051

24.0 CONST

5,200

0.60

4,480

2.30

1015

44.85

80.99

18.08

5460

RS-987SH-25115

24.0 CONST

2,200

0.19

1,804

0.65

567

10.03

63.84

2.69

2310

RS-987SH-3755

32.0 CONST

6,300

0.50

5,441

2.85

888

47.34

51.91

16.19

5910

RS-987SH-5524

24.0 CONST

11,000

1.24

9,499

7.87

1050

97.8

51.8

50.1

7700

 Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in   1mm=0.039in   1g=0.035oz

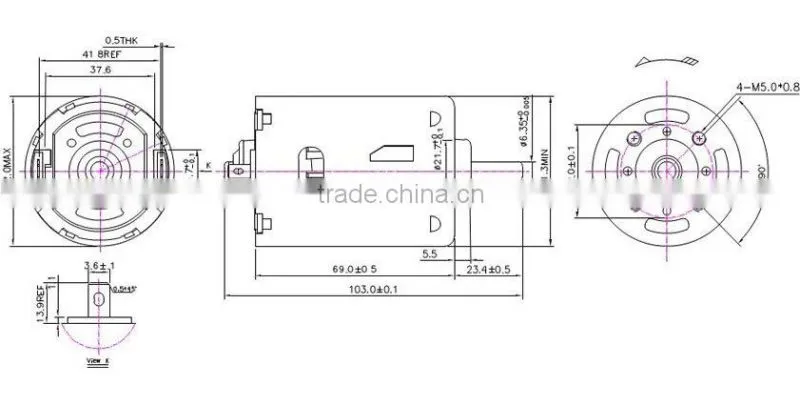

24v dc electric motor for gardening tools | RS-987H

  • Power Drill Motor
  • Dimension: φ 51.8 x 69 L. shaft O.D. 6.35 mm
  • Basic Structure: SECD housing / SECC end cap
  • Application: Power drill / Electric fan / Model car/ Model ship
  • Weight: Approx. 485g










Basic Structure of Chengfang Motors

  • 2-pole stator
  • Sr ferrite permanent magnet
  • 3, 5, 7, 8, 9, 12,16 slots armature
  • Silicon-steel lamination with epoxy coating
  • High-carbon steel shaft
  • Cu-Ag alloy commutator
  • Copper-graphite brushes
  • Be-Cu leaf-brush commutating system
  • SECD round / flat type housing
  • SECD end cap / glassfiber reinforced PA6/6 end cap
  • Cylinder / self-aligning Cu-Fe alloy sintered bushes
  • 155oC (class F) magnet wire

↓

↓

↓

↓

↓

Customerized Options

  • Leadwires with connector / pins
  • EMI suppression components
  • PTC or thermostate protection
  • Built-in AC/DC rectifier
  • Built-in cooling fan
  • Multiple output shaft
  • diamond knurls, straight knurls, D-cut, stepped shaft
  • Shaft-mounted gears, essentric gears, belt pulleys
  • Stainless steel (SS304, SS420) shaft
  • Ball bearing
  • Cage-brush commutating system
  • Precious metal brush / commutator
  • Hall encoder
  • Low-cogging torque design
  • 180oC (class H), 200oC (class C) magnet wire
  • -40oC ~ 220oC bearing lubricant
  • Neodymium magnets

24v dc electric motor for gardening tools | RS-987H
