FCC Certificated High Power Long Range Dual Band Two Way Radio

Fujian Nanan Quansheng Electronics Co., Ltd.
FCC Certificated High Power Long Range Dual Band Two Way Radio thumbnail-1
FCC Certificated High Power Long Range Dual Band Two Way Radio photo-1
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
QuanSheng two way walkie talkie
Model Number:
TG-45UV
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen / shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name QuanSheng two way walkie talkie
Model Number TG-45UV
Type Handheld
Dimensions 122X 63X 36mm
Frequency Range VHF136-174MHz and UHF400-470MHz
Storage Channel 128
Talk Range 5-8km

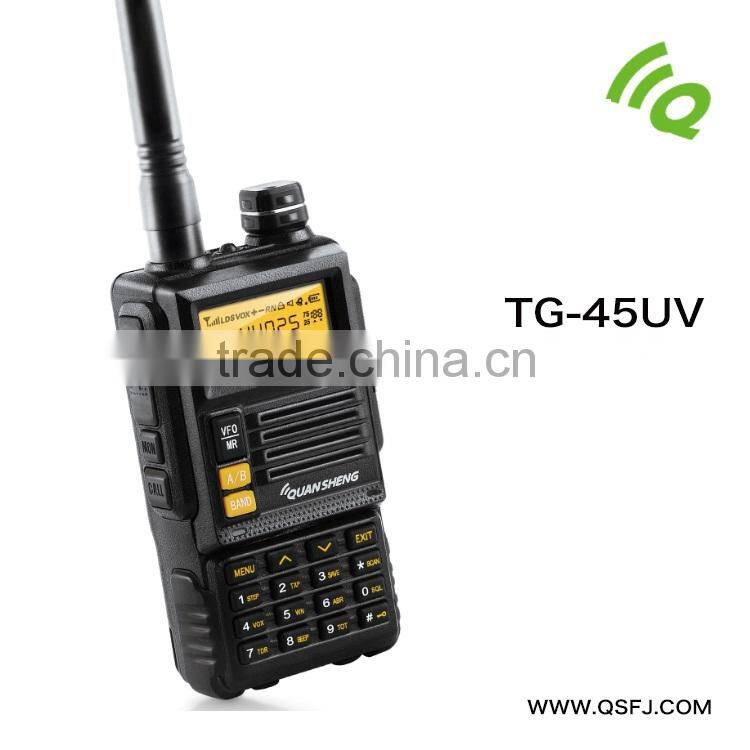

FCC certificated high power long range dual band two way radio  -Quansheng TG-45UV

FCC certificated high power long range dual band two way radio FCC certificated high power long range dual band two way radio

Our range of bussiness and general purpose walkie-talkie radios are suitable for a variety of uses, both of work and for leisure. Our radios are suitale for use in shops, shopping centres, shools, colleges, hotels, bars & pubs, nightclubs, door supervisors, farms, garden centres, warehouses, factories, general security work, and for outdoor activities including ski-ing, paintball, cycling, running etc.




1, High capacity Li-ion battery and smart charger
2, Receive/Transmit code setting separately
3, UHF/VHF dual band receive/transmit
4,FM radio (65-108MHz)
5, Large LCD display
6, PC programmable
7, Fast MENU operation
8, Emergency alarm function
9, High/Low power selective
10, Squelch level adjustable
11, Multi power saving function
12, Voice prompt(Chinese or English)
13, Reminding switch
14, Dual display of frequency and channel
15, Channel name edit
16, Channel storing
17, Frequency/Cannel mode shift
18, Multi LCD backlight selective
19, Tim of backlight auto off selective
20, Built in VOX
21, Dual-watch operation
22, Offset frequency and offset direction setting
23, Multi display mode:Channel /Frequency / Channel name
24, CTCSS/DCS code search automatically
25, Multi step frequency
26, Busy channel lock
27, Time-out-timer(TOT)
28, Multi scan function selective
29, Channel scan additive
30, Wide/Narrow bandwidth selective
31, Main/Sub channel shift
32, 1750Hz call tone
33, Reminding of repeater transfer
34, Auto-keylock
35, Channel delete function
36, Reset
37, DTMF function
38, PTT-ID
39, CTCSS/DCS
40, Reverse function

New design vhf uhf fm transceiver  with FM radio DTMF-Quansheng TG-45UV
GENERAL

Frequency Range                                                                    Dual Band: 136-174MHz /400-480MHz(RX/TX)

                                                                                                 Dual Band: 136-174MHz /245-246MHz(RX/TX)

Channel                                                                                    128

Channel Spacing                                                                    25 /12.5KHz

Operating Voltage                                                                   7.2V

Antenna Impedance                                                               50Ω

Operating Temperature                                                        -25°C~+65°C

Frequency Stability                                                                 ±2.5ppm

Battery                                                                                       Standard: 2500mAh( Li-ion)

Dimensions(H*W*D)(without antenna)                              122X 63X 36mm

Weight(with antenna and battery)                                      230g



Transmitter

Output Power                                                                          5W

Modulation                                                                                16KΦF3E/11KΦF3E

Maximum Deviation                                                               ≤5.0KHz(W)

Spurious Emission                                                                 ≤65dB

Audio Distortion                                                                      ≤5%



Receiver

Sensitivity                                                                                ≤0.25/0.28μV

Adjacent Channel Selectivity                                               70/50dB

Intermodulation                                                                      60dB

Spurious Response Rejection                                             70dB

S/N                                                                                              43/38dB

Rated Audio Power Output                                                   ≤0.5W

Rated Audio Distortion                                                          ≤5%



 FCC certificated high power long range dual band two way radio





QuanSheng is one of the lead manufacturer of handheld radios

Design & manufacture 2 way radio for 20 years,

With ISO, CE, FCC and Rohs,

Taking 30,000 square meters,

with 500 people, 7 product line, and 9 SMT lines.

Export 1,000,000 pcs radios to 60 countries each year.
