Walkie Talkie Wireless Headset

Walkie Talkie Wireless Headset thumbnail-1
Walkie Talkie Wireless Headset photo-1
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Quansheng
Model Number:
TG-Q7
Contact Supplier Request Quote Chat Now
Fujian Nanan Quansheng Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen / shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Quansheng
Model Number TG-Q7
Type Handheld
Dimensions 89*46*20mm
Frequency Range 400-470
Storage Channel 99
Talk Range 500-800M

Specifications

walkie talkie wireless headset
1. Red compact unique design
2. 2W LPD433 MHz
3. 99 channels
4. built-in antenna

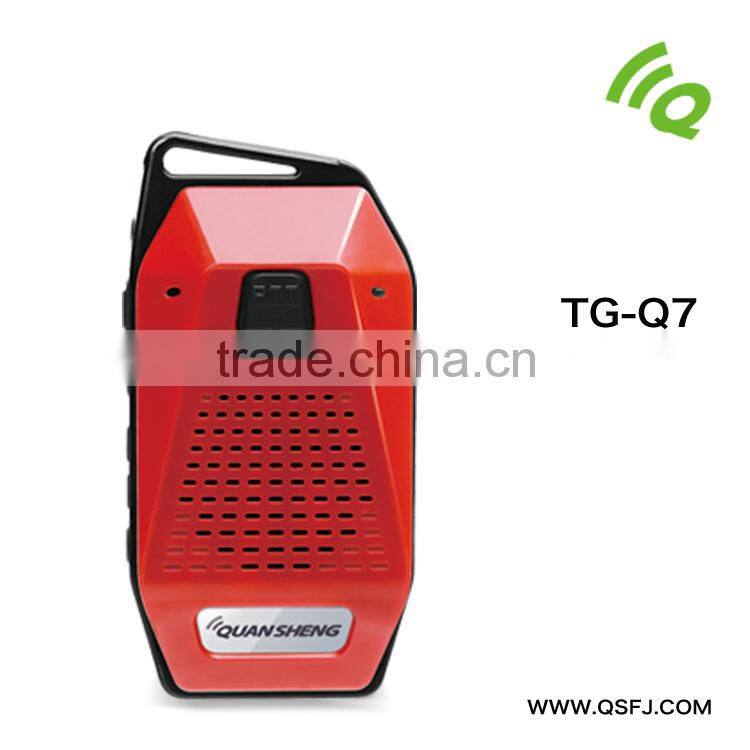

  walkie talkie wireless headset Red 2W LPD433 mini walkie talkie unique design - QuanSheng TG-Q7



01. Output power 2W
02. PC programmable
03. CTCSS/DCS
04. Low power alarm
05. Channel scan
06.Voice Prompt( Chinese/English)

Special features
01. PU material, breaking the traditional design,combination fashion cell phone design
02. Appearance with colourful processing, adopting fashion red colour
03. The built-in-antenna
04. Speaking with portable headset
05. 99 channels
06. Side buttons key for volume and channels, easily operation
07. PC programmable(software&PC cable special for Q5)
08. Professional fitting for hotel, restaurant, KTV, super-market Travelling& consuming amusement place use





GENERAL

Frequency Range                                                            UHF: 433.750-434.790MHz

                                                                                                    400-470MHz

Channel                                                                             99

Channel Spacing                                                             25 /12.5KHz

Operating Voltage                                                           3.6V

Antenna Impedance                                                        50Ω

Operating Temperature                                                  -25°C~+65°C

Frequency Stability                                                         ±2.5ppm

Battery                                                                              1300mAh (Li-ion)

Dimensions                                                                      89X 46X 20mm

Weight                                                                              56g



Transmitter

Output Power                                                                  ≤5W

Modulation                                                                      16KΦF3E/11KΦF3E

Maximum Deviation                                                        ≤5.0KHz (W)

Spurious Emission                                                          ≤65dB

Audio Distortion                                                              ≤5%



Receiver

Sensitivity                                                                        ≤0.25/0.28μV

Adjacent Channel Selectivity                                        70/50dB

Intermodulation                                                              60dB

Spurious Response Rejection                                      70dB

S/N                                                                                    43/38dB

Rated Audio Power Output                                           ≤0.5W

Rated Audio Distortion                                                  ≤5%



7

 7walkie talkie wireless headset







QuanSheng is one of the lead manufacturer of handheld radios

Design & manufacture 2 way radio for 20 years,

With ISO, CE, FCC and Rohs,

Taking 30,000 square meters,

with 500 people, 7 product line, and 9 SMT lines.

Export 1,000,000 pcs radios to 60 countries each year.



Welcome and thank you for visiting our website.

Please send us inquiry or SMS us on Trade Manager.

It is our honor to help you.

We promise to response in 24 hour.
