Permanent Magnet Motor,dc Motor 24V,motor for Home Appliance

Permanent Magnet Motor,dc Motor 24V,motor for Home Appliance thumbnail-1
Permanent Magnet Motor,dc Motor 24V,motor for Home Appliance photo-1
Negotiable MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF Motor, CF Motor
Model Number:
RS-595PHV-20120RD, RS-590H/595H
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CF Motor, CF Motor
Model Number RS-595PHV-20120RD, RS-590H/595H

The models we list below are part of our existing designs. We offer specific motor design for every customer.





Model No. RS-595PHV-20120RD
Rated voltage 24VDC
No Load Speed(RPM) 3600
Current(A) 0.07
At Max Efficiency Speed(RPM) 3131
Current(A) 0.43
Torque(mNm) 21.7
Output(W) 7.12
Eff.(%) 68.3
At stall Torque(mNm) 166.7
Current(A) 2.9





 Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in   1mm=0.039in   1g=0.035oz

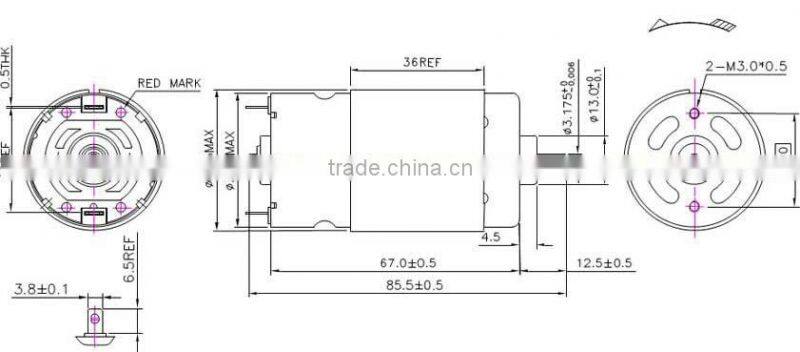

permanent magnet motor,dc motor 24V,motor for home appliance

  • Vacuum cleaner motor
  • Dimension: φ 37.0 x 67 L. shaft O.D. 3.175 mm
  • Basic Structure: SECD housing / SECC end cap
  • Application: Vacuum cleaner / Air pump / Power tool / Electrical Model
  • Weight: Approx. 265g


Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire







·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets
