Specifications
plastic pipe making machineused to produce all kinds of pipe of the PE
PVC and PP and so on.
certificate:ISO9001
plastic pipe making machine.
Application
the pipe is widely used in the municipal construction, water-supply and drainage system in the building , telecom communication, gas transportation, petroleum and chemical industry, agriculture irrigation.
Production line

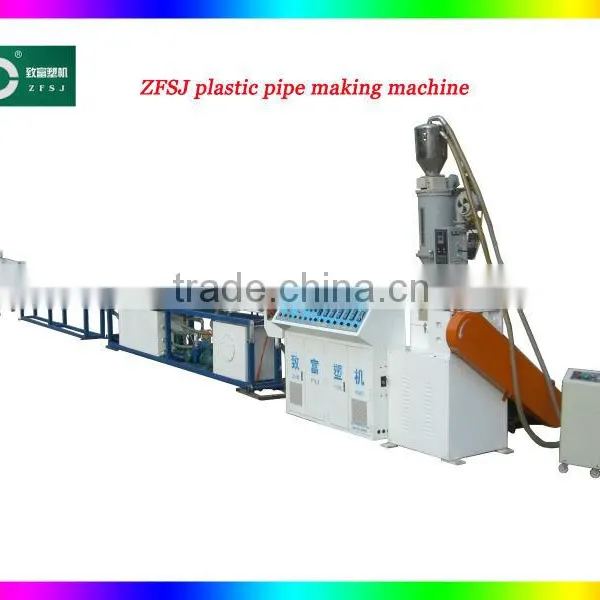

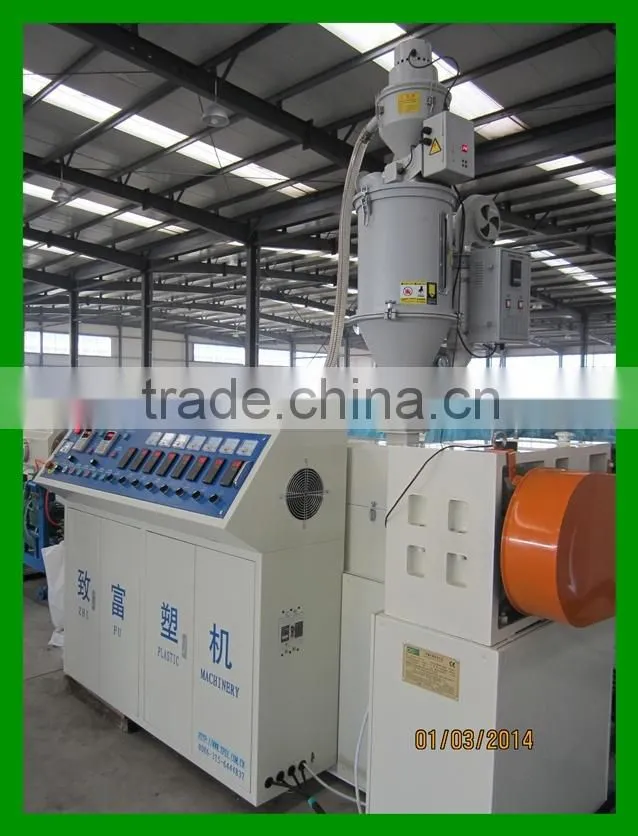

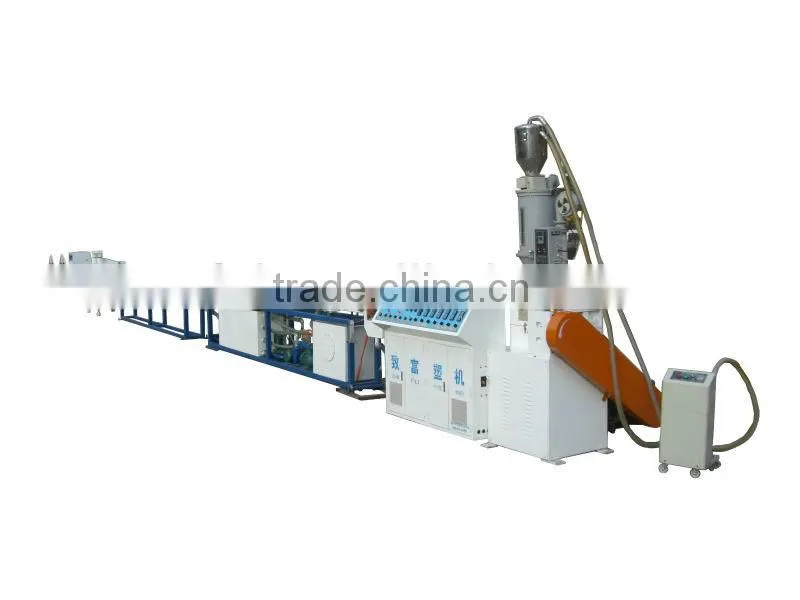

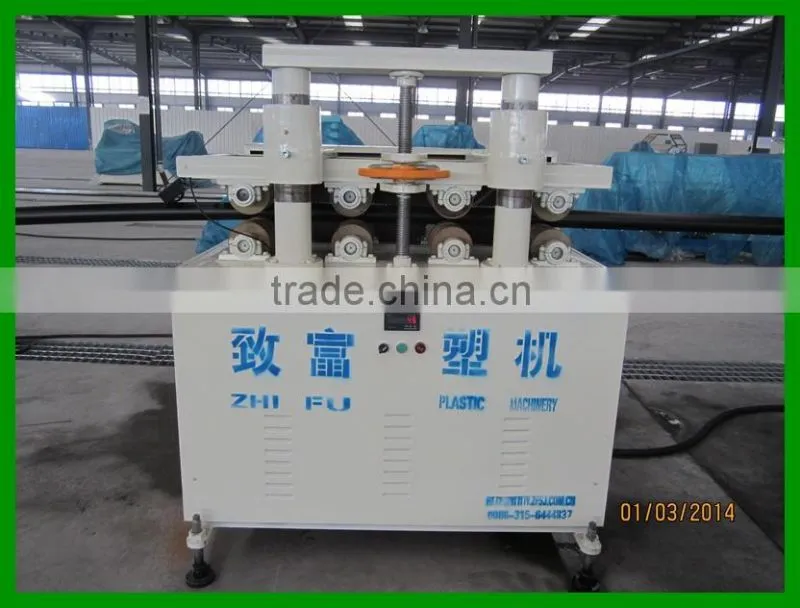

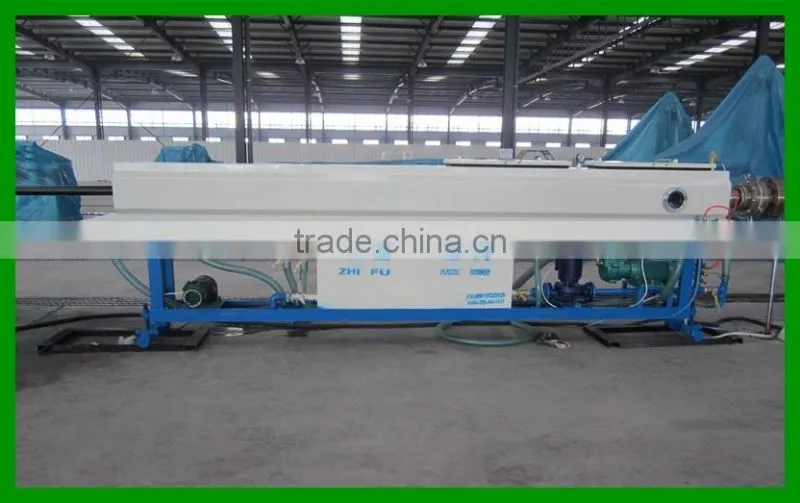

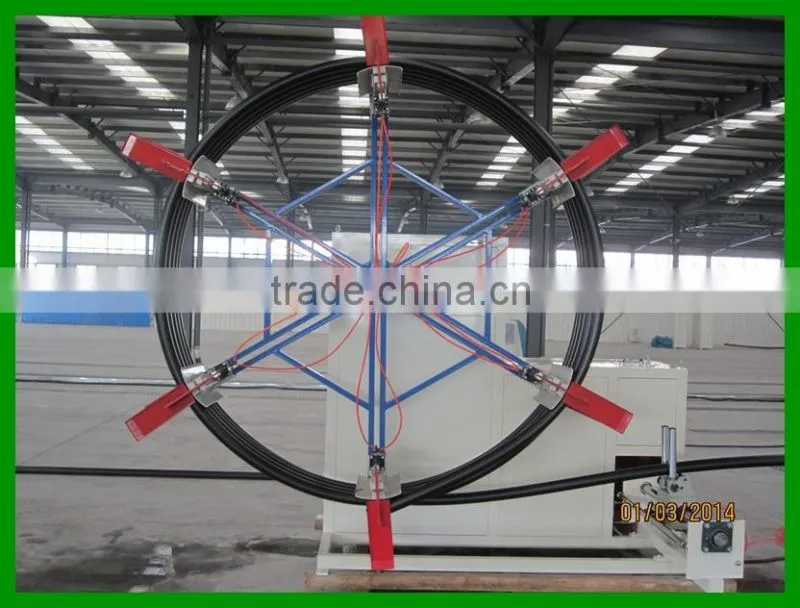

the line including the extruder, die head,cooling system,tractor unit,cutting unit,discharge pipe unit etc.
Features
High efficient, wide produce, high automatic, easy operate, uneasy distortion.
Main Technical parameter
model |
SJ-45 |
SJ-65 |
SJ-90 |
SJ-120 |
SJ-150 |
|
screw diameter (mm) |
45 |
65 |
90 |
120 |
150 |
|
screw speed (L/D) |
25:1 |
25:1 |
25:1 |
25:1 |
25:1 |
|
screw speed (r/min) |
10~65 |
10~65 |
10~50 |
10~50 |
10~40 |
|
heating power (k w) |
11 |
22 |
45 |
75 |
160 |
|
heating power (k w) |
≤15 |
≤20 |
≤30 |
≤40 |
≤55 |
|
tractor power (k w) |
1.1 |
1.5 |
2.2 |
3 |
4 |
|
specification pipe (mm) |
16~40 |
32~63 |
50~110 |
145~400 |
180~800 |
|
output (kg/h) |
30 |
60 |
100 |
200 |
350 |
dimensions L×W×H(m) |
6×2×1.5 |
6.5×2×1.5 |
8×2.5×1.8 |
10×2.8×2 |
15×3.5×2.6 |
weight(kg) |
1500 |
1800 |
3500 |
4500 |
8000 |
