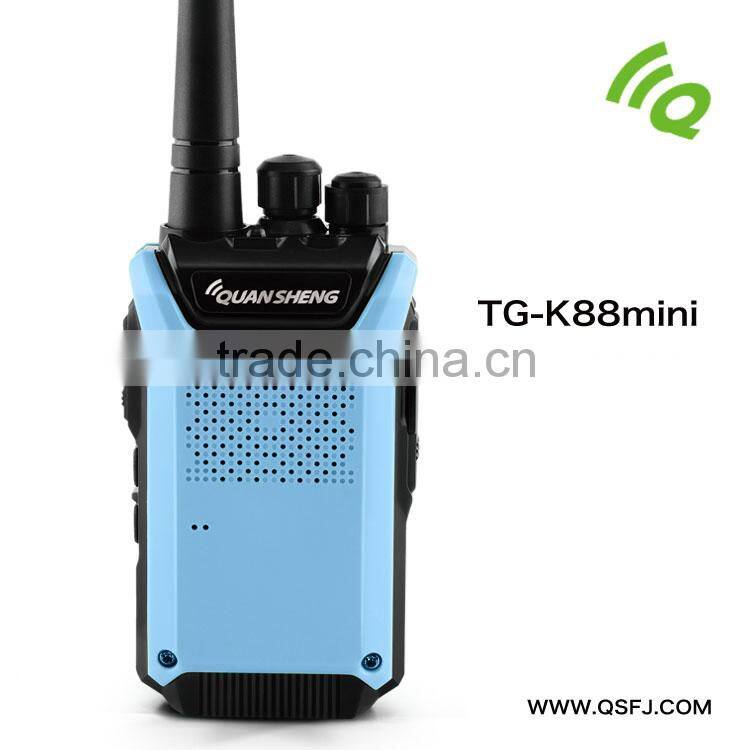

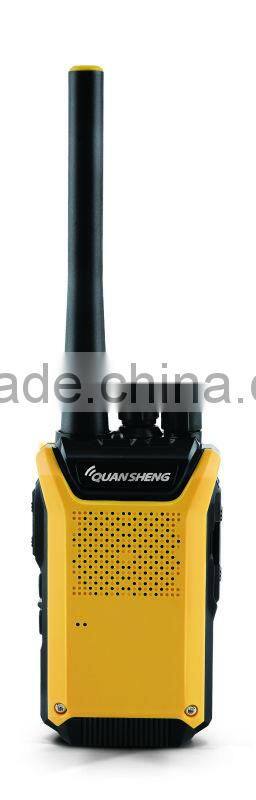

Quansheng TG-K88mini 0.5w Output Pmr Radio Mini Walkie Talkie

01. 100 hours super long standby time

02. All colors can be made (we have Injection Department)

03. PC programmable

04. Channel scan

05. Time-out-timer (TOT)

06. Low power alarm

07. Wide/Narrow bandwidth

08. Squelch level adjustable

09. H/L output power selective

10. Voice prompt

11. CTCSS/DCS

12. Dual-watch operation

13. PTT-ID

14. DTMF function

15. 1750Hz call tone

16. Jacklight

17. Tail Tone Elimilation

18. OEM, ODM available

General:

Frequency range UHF: 400-480MHz

VHF: 136-174MHz

Channel 16

Battery 1500mAh(Li-ion)

Size(mm) 101 X 52 X 30mm

Channel Spacing 25 /12.5KHz

Operating Voltage 3.6V

Antenna Impedance 50Ω

Operating Temperature -25°C~+65°C

Frequency Stability ±2.5ppm

Weight(g) 145.5g

Packing(pcs) 20 or 40PCS/CTN

Transmitter:

Output Power 2W

Modulation 16KΦF3E/11KΦF3E

Maximum Deviation ≤5.0KHz(W)/ ≤2.5KHz(N)

Stray Power ≤7.5uW

Preemphasis Character 6dB/

CTCSS/DCS Frequency Deviation 0.75±50Hz(W)/ 0.37±30Hz(N)

Modulation Sensitivity 12mV

Emission Current ≤1.3A

Modulation distortion ≤5%

Receiver:

Sensitivity -122dBm(12dB SINAD)

Adjacent Channel Power 5KHz

Intermodulation ≥65dB(W) / ≥60dB(N)

Spurious Response Rejection ≥65dB

Blocking ≥85dB

Audio Power Output ≤0.5W

Audio Distortion ≤10%

Adjacent Channel Selectivity ≤5%

Design & manufacture 2 way radio for 20 years,

With ISO, CE, FCC and Rohs,

Taking 30,000 square meters,

with 500 people, 7 product line, and 9 SMT lines.

Export 1,000,000 pcs radios to 60 countries each year.

Welcome and thank you for visiting our website.

Please send us inquiry or SMS us on Trade Manager.

It is our honor to help you.

We promise to response in 24 hour.
