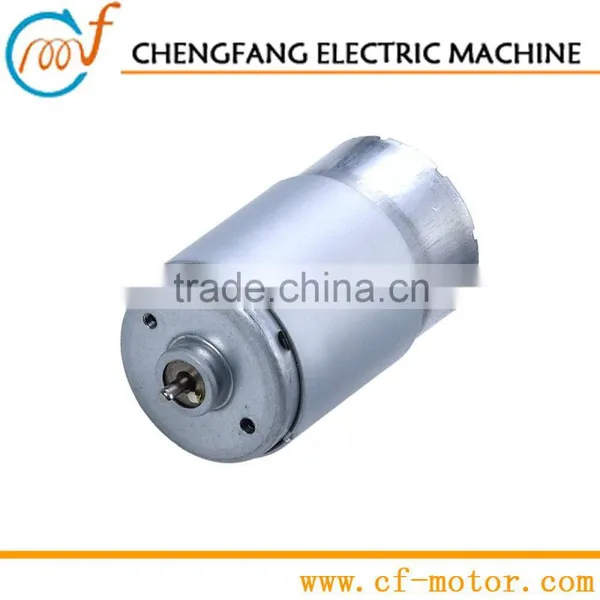

Water Pump 24v dc Motor Permanent Magnet dc Motor

Water Pump 24v dc Motor Permanent Magnet dc Motor thumbnail-1
Water Pump 24v dc Motor Permanent Magnet dc Motor thumbnail-2
Water Pump 24v dc Motor Permanent Magnet dc Motor photo-1
Water Pump 24v dc Motor Permanent Magnet dc Motor photo-2
US$ 0.77 - 1.15 MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Chengfang Motor
Usage:
Boat, Car, Fan, Home Appliance, Other, Boat, Car, Fan, Home Appliance, power tool, eletric model
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Chengfang Motor
Usage Boat, Car, Fan, Home Appliance, Other, Boat, Car, Fan, Home Appliance, power tool, eletric model
Certification CCC, CE, ROHS, UL, Other, CCC, CE, ROHS, UL, ISO/TS 16949:2009
Type Micro Motor
Torque can be customized
Construction Permanent Magnet
Commutation Brush
Speed(RPM) can be customized
Continuous Current(A) can be customized
Output Power can be customized
Voltage(V) 24V
Efficiency Other
Referential Models

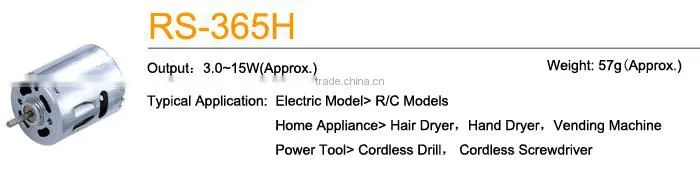

Water pump 24v dc motor permanent magnet dc motor

permanent magnet dc motor: water pump 24v dc motor

EMI suppression: chokes, capacitors, varistor

Shaft: step shaft, spline, d-cut, knurling and etc.

Built-in components: PTC, PCB, cooling fan and etc.

Weight: 20g-610g

_______________________________________________________________________________



water pump 24v dc motor permanent magnet dc motor

water pump 24v dc motor permanent magnet dc motor

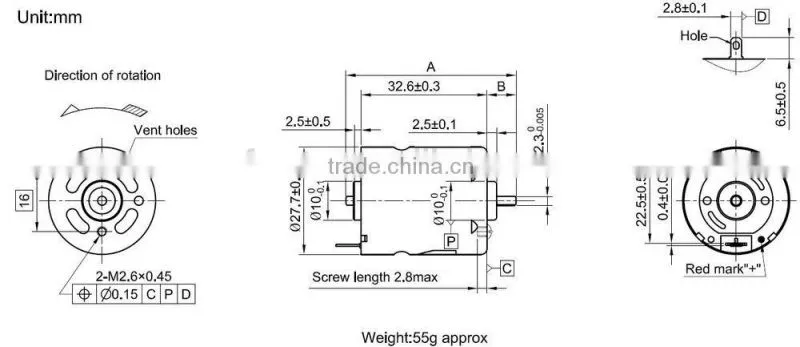

Dimension A and B can be customized.

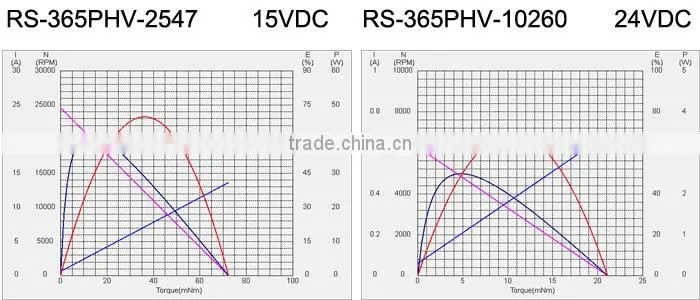

Model Nominal Voltage No Load At maximum efficiency At stall
Speed Current Speed Current Torque Output Eff Current Torque
VDC r/min A r/min A mNm W % A mNm
RS-365PHV-2547 15 24,600 0.64 20,220 2.96 12.87 27.25 61.5 13.65 72.29
RS-365PHV-10260 24 6,280 0.06 4,849 0.2 4.8 2.44 49.8 0.69 21.09
RS-365SHV-16125 14.4 8,200 0.1 6,755 0.47 5.91 4.18 62 2.19 33.54
RS-365SH-13168 18 8,030 0.09 6,378 0.35 5.18 3.46 55.1 1.35 25.17
RS-365PHV-17112 12 7,500 0.12 6,092 0.52 5.82 3.71 59.5 2.25 31





water pump 24v dc motor permanent magnet dc motor

 * See more models as below.

water pump 24v dc motor permanent magnet dc motor



Model Dimensions Output Typical Applications
RS-360A/365A φ28X32.8LXshaft OD2.3mm 0.5-7.5W Hair Dryer, Hand Dryer, Hand Vac Nozzle, Air Pump,
RS-380H/385H φ28X37.8LXshaft OD2.3mm 2.0-40W Hair Dryer, Hair Clipper, Air Pump, Vacuum Cleaner
RS-390H/395H φ28X46.5LXshaft OD2.3mm 1.0-40W Hair Dryer, Air Pump, Sweeper, Massager
RS-540A/545A φ36X50LXshaft OD3.175mm 2.0-90W Vacuum Cleaner, Hair Dryer, Air Pump, Water Pump
FS-540H/545H φ36X53LXshaft OD4.0mm 4.0-11W Sweeper
RS-550A/555A φ36X57LXshaft OD3.175mm 5.0-80W Vacuum Cleaner, Water Pump, Air Pump
RS-560H/565H φ36X60LXshaft OD3.175mm 5.0-80W Vacuum Cleaner, Water Pump, Air Pump
RS-590H/595H φ36X67LXshaft OD3.175mm 8-30W Vacuum Cleaner, Water Pump, Air Pump
RS-750H/755H φ41.8X59LXshaft OD5.0mm 8-90W Electric Window Blind, Automatic Drinking Fountain,
RS-770H/775H φ41.8X66LXshaft OD5.0mm 8-100W Electric Window Blind, Cordless Drill, Gardening Tool
RS-987H φ52X69LXshaft OD6.35mm 5-200W Electrical Fan, HV



* You can click the model no. to check its dimension and performance.





Optional Design

                Motor Design

         Customized Options

. 2-pole stator

. Sr ferrite permanent magnet

. 3, 5, 7, 8, 9, 12,16 slots armature

. Silicon-steel lamination with epoxy coating

. High-carbon steel shaft

. Cu-Ag alloy commutator

. Copper-graphite brushes

. Be-Cu leaf-brush commutating system

. SECD round / flat type housing

. SECD end cap / glassfiber reinforced PA6/6 end cap

. Cylinder / self-aligning Cu-Fe alloy sintered bushes

. 155℃(class F) magnet wire









 . Leadwires with connector / pins

 . EMI suppression components

 . PTC or thermostate protection

 . Built-in AC/DC rectifier

 . Built-in cooling fan

 . Multiple output shaft

 . nurls, straight knurls, D-cut, stepshaft

 . Shaft-mounted gears, eccentric gears, belt pulleys

 . Stainless steel (SS304, SS420) shaft

 . Ball bearing

 . Cage-brush commutating system

 . Precious metal brush / commutator

 . Hall encoder

 . Low-cogging torque design

 . 180℃ (class H), 200℃ (class C) magnet wire

 . -40℃ ~ 220℃ bearing lubricant

 . Neodymium magnets

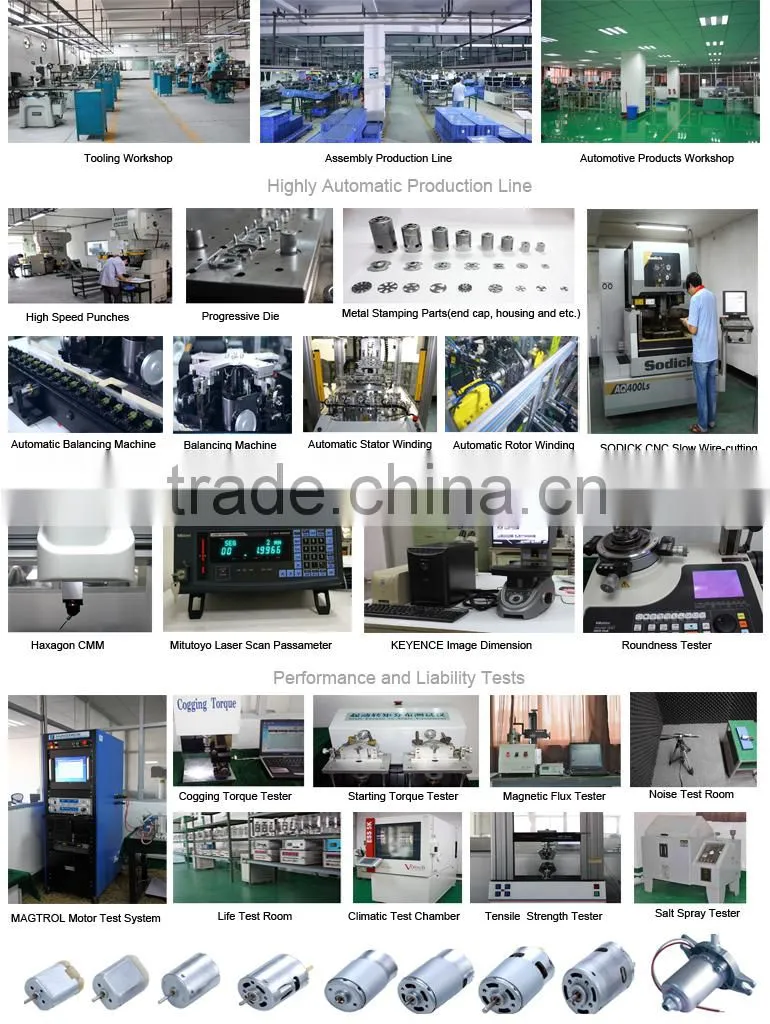

Factory Overview
