brief introduction:

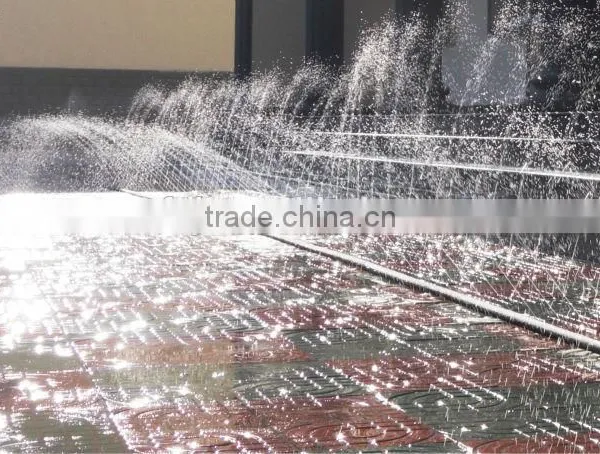

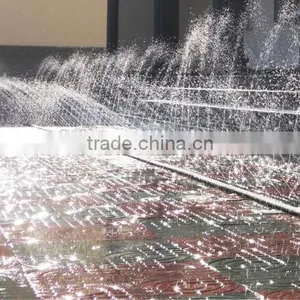

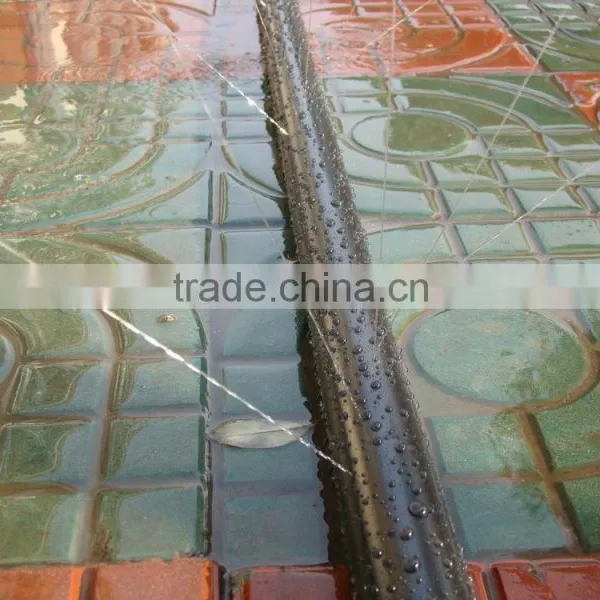

the micro spraying hose is also called spraying tape,many holes tape,micro spraying irrigation tape.we make many small holes on the pressed flat tape mechanically or by laze.the tape with three,five or more holes for each group is paved on the ground and the water will go up and then down like fine rain under the pressure,the micro spraying tape is also one of the water saving irrigation product.due to different size and pressure,the spraying width range can be 2m to 8m.
micro spraying tape sizes:
| sizes |
thinkness mm |
holes space mm |
holes type mm |
rated working pressure Mpa |
paving length m |
sprying width m |
each roll length m |
|
|
diameter mm |
folded diameter mm |
|||||||
| φ 25 | 39 | 0.2-0.4 | ≥ 150 |
two hold
|
0.1 | 50 | 2 | 200 |
| φ 32 | 50 | 0.2-0.4 | ≥ 150 | sloping three holes | 0.1 | 50 | 3 | 200 |
| φ 40 | 63 | 0.2-0.4 | ≥ 150 | sloping three holes | 0.1 | 80 | 3 | 200 |
| φ 50 | 78.5 | 0.2-0.4 | ≥ 200 | sloping five holes | 0.1 | 100 | 4 | 150 |
| φ 63 | 99 | 0.2-0.4 | ≥ 250 | sloping five holes | 0.1 | 100 | 4 | 150 |
| φ 75 | 118 | 0.2-0.4 | ≥ 250 | sloping five holes | 0.1 | 100 | 6 | 150 |
| φ 90 | 141 | 0.3-0.5 | ≥ 300 | sloping seven holes | 0.1 | 150 | 7 | 100 |
| φ 110 | 173 | 0.3-0.5 | ≥ 300 | sloping seven holes | 0.1 | 150 | 8 | 100 |
Application Area:
1. Applied in the greenhouse, plains, fruit trees on the hillside, garden, grow seedlings flowers, grass,
vegetables, etc
2. Suitable for large micro spray under watermelon film, vegetables, wheat, medicinal herbs, nursery stock, etc
3. Apply to the golf course, open air agriculture

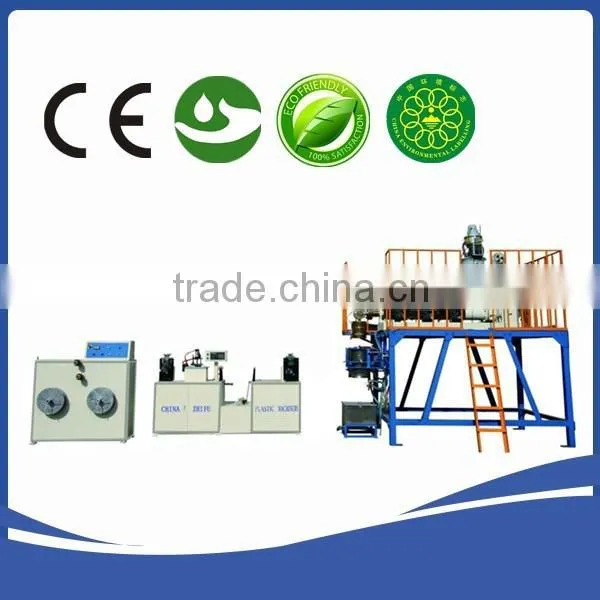

No. |
Device |
Quantity |
Total power (KW) |
Length of Single machine (m) |
Weight Of single machine (T) |
1 |
Automatic material feeding drying system |
1set |
2.5 |
1.2 |
0.075 |
2 |
ZFSJ-60×30/1 single screw extruder |
1pcs |
28 |
3.3 |
0.7 |
3 |
mold (includes patented product: durable net) |
1 set |
7 |
0.5 |
0.07 |
4 |
Vacuum sizing device |
1 pcs |
1.45 |
0.6 |
0.1 |
4 |
Tractor,punching machine |
1 pcs |
4 |
2.2 |
0.6 |
5 |
Winder |
1 pcs |
3 |
1.4 |
0.3 |
6 |
electric cabinet |
1 pcs |
|
0.9 |
0.1 |
irrigation tape making machine packaging:
Standard seaworthy packing wooden box,in order to prevent due to External force damaged during shipping,the goods used to strong wooden case.
1.we technical staff will 24-hour online answer your questions for you.
2. After the equipment factory,we will provide for you with free installation and debugging within 1 year, you just responsible for accommodation problems
China Tangshan Zhifu Plastic Machinery Co.,Ltd was established in 1986,lies in the southeast of Beijing and about 110kilometers away from Beijing with convenient transportation,It is knowledge-based,scientific and technological enterprise for special-purpose plastic machinery integrating design,develop,manufacture and service with advanced equipment,perfect monitoring method and strong technological foundation,The company was awarded the Advanced Technology Enterprise by china ministry of Science and Technology,it is also the member of National Commercial and Industrial Association and awarded the honor for seceral times.The company has import-export authority independently and passes the certificate of ISO9001 quality System and European Union CE Certificate.
our company is in the leading position of water-saving irrigation fields,we are the pioneer enterprise for making drip irrigation equipment in China and we have more than ten years histories of manufacturing the drip irrigation equipment.We take the lead of improving and using several practical and new-type technologies.We are the largest manufacturer and seller of drip irrigation equipment in china and world. From 2003 till now,we have sold the drip irrigation tape making machine we sold reach more than 2200 sets.Our products have been distributed throughout the country and also exported to Europe,Americas,Middle Esat,and Southeast Asia etc.over thirty countries and regions,The superior quality, favorable price and perfect after-sales service make the products be well received at home and abroad.
