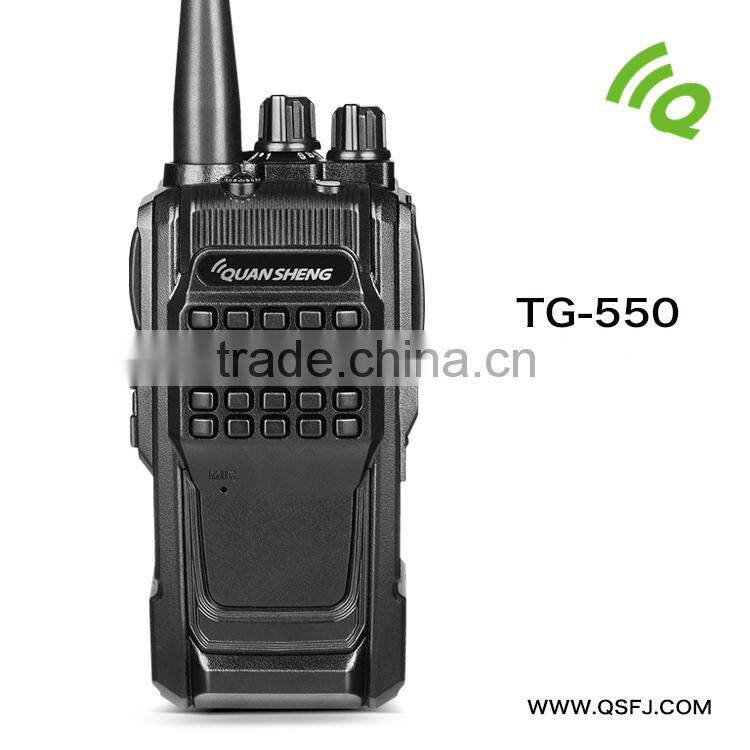

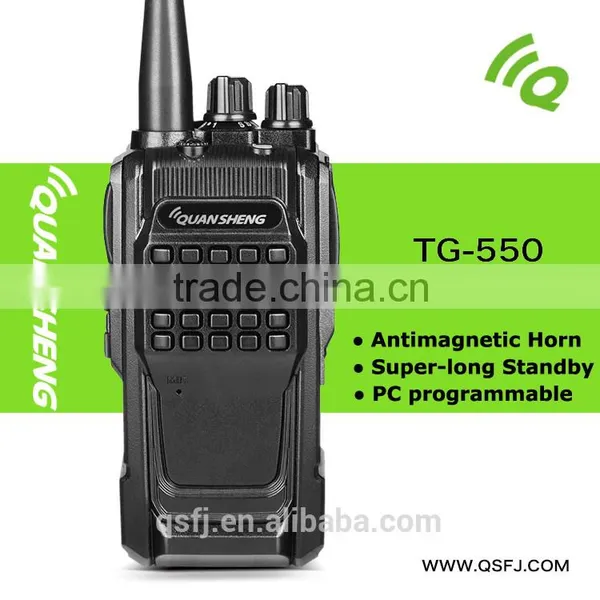

Quansheng radio TG-550 waterprof radio uhf all band radio
This is an analogue radio with imitate keypad design,unique appearance,dust-proof and antimagnetic,pretty suitable for construction,security, restaurant, ,etc
handheld type portable commercial walkie talkie handheld type portable commercial walkie talkie
1. 100 hours super-long standby time
2. Jacklight
3. PC programmable
4. Channel scan
5. TOT
6. Low power alarm
7. Wide/ Narrow bandwidth
8. Squelch level adjustable
9. H/L output power selective
10. Voice prompt
11. CTCSS/DCS
12. PTT-ID
13. DTMF
14. 1750Hz call tone
GENERAL
Frequency Range VHF: 136-174MHz
UHF: 400-480MHz
Channel 16
Channel Spacing 25 /12.5KHz
Operating Voltage 7.2V
Antenna Impedance 50Ω
Operating Temperature -25°C~+65°C
Frequency Stability ±2.5ppm
Battery 2000mAh (Li-ion)
Dimensions (H*W*D) 122 X 57X 37mm
Weight 216g
Transmitter
Output Power 5W
Modulation 16KΦF3E/11KΦF3E
Maximum Deviation ≤5.0KHz(W)
Spurious Emission ≤65dB
Audio Distortion ≤5%
Receiver
Sensitivity ≤0.25/0.28μV
Adjacent Channel Selectivity 70/50dB
Intermodulation 60dB
Spurious Response Rejection 70dB
S/N 43/38dB
Rated Audio Power Output ≤0.5W
Rated Audio Distortion ≤5%
QuanSheng Electronics
is one of the lead manufacturer of handheld radios
Top ten famous handheld radio brand in China
Design & manufacture 2 way radio for 20 years,
With ISO, CE, FCC and Rohs,

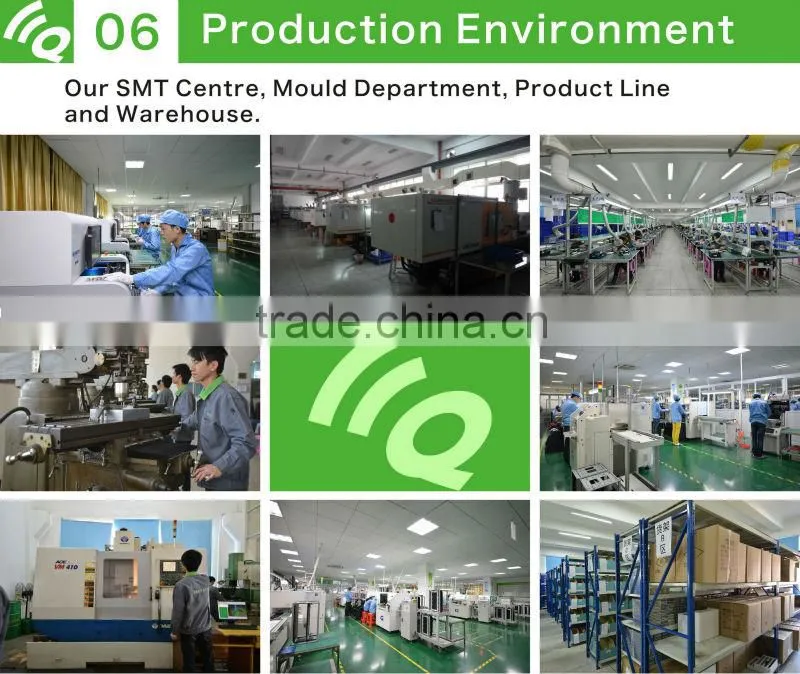

Taking 30,000 square meters,
with 500 people, 7 product line, and 9 SMT lines.
Export 1,000,000 pcs two way radios to 60 countries each year.
