2016 New Best Long Distance Radio Cheapest Two Way Radio TG-150Plus

2016 New Best Long Distance Radio Cheapest Two Way Radio TG-150Plus thumbnail-1
2016 New Best Long Distance Radio Cheapest Two Way Radio TG-150Plus photo-1
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
QuanSheng
Model Number:
TG-150 Plus
Contact Supplier Request Quote Chat Now
Fujian Nanan Quansheng Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen / shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name QuanSheng
Model Number TG-150 Plus
Type Handheld
Dimensions 120*53*38mm
Frequency Range 136-174/350-390/400-480Mhz
Storage Channel 16
Talk Range 5-8km

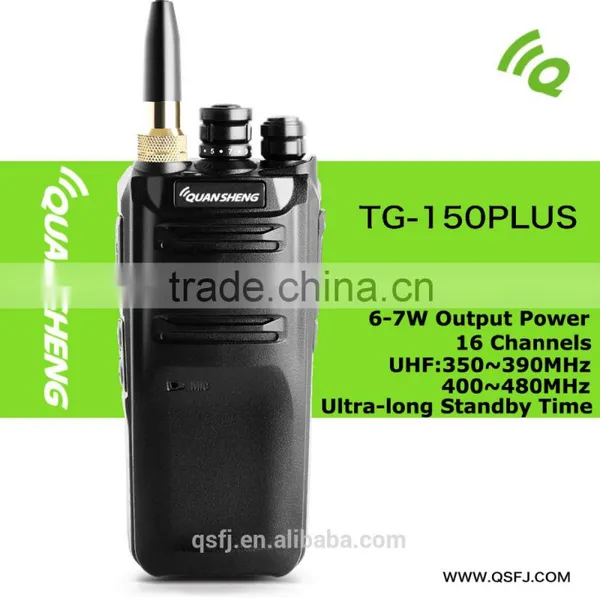

2016 New best long distance radio cheapest two way radio TG-150Plus

This 8Watts high power QuanSheng TG-150 Plus is QuanSheng's new arrival item. 6KM long range and with 3500mAh Polymer Li-ion Battery.

The handheld radio with compact structure is perfect for professional hotel, plant, railway and secutity, etc.

Quansheng 8W handheld type two way radio Quansheng 8W handheld type two way radio



01. Outpower: 8W

02. Adopting newest polymer Li-ion battery

03. Adopting imported PC material in case to make it solid abradable

04. 350 hours' super-long waiting time

05. CTCSS/DCS

06. Voice prompt ( Chinese and English )

07. High or Low power adjust

08. Squelch level adjust

09. Wide/Narrow bandwidth

10. Jacklight

11. PC programmable

12. Channel scan

13. Time-out-timer

14. Low power alarm





GENERAL

Frequency Range                                         UHF: 400-480MHz

                                                                        VHF: 136-174MHz

Channel                                                         16

Channel Spacing                                          25 /12.5KHz

Operating Voltage                                        7.2V

Antenna Impedance                                     50Ω

Operating Temperature                              -25°C~+65°C

Frequency Stability                                     ±2.5ppm

Battery                                                          3500mAh (Polymer Li-ion)

Dimensions                                                  120 X 53X 38mm

Weight                                                          295g



Transmitter

Output Power                                               8W

Modulation                                                   16KΦF3E/11KΦF3E

Maximum Deviation                                     ≤5.0KHz (W)

Spurious Emission                                       ≤65dB

Audio Distortion                                           ≤5%



Receiver

Sensitivity                                                     ≤0.25/0.28μV

Adjacent Channel Selectivity                     70/50dB

Intermodulation                                           60dB

Spurious Response Rejection                   70dB

S/N                                                                 43/38dB

Rated Audio Power Output                        ≤0.5W

Rated Audio Distortion                               ≤5%





2016 New best long distance radio cheapest two way radio TG-150Plus





QuanSheng Electronics

 is one of the lead manufacturer of handheld radios

Top ten famous handheld radio brand in China

Design & manufacture 2 way radio for 20 years,

With ISO, CE, FCC and Rohs,

Taking 30,000 square meters,

with 500 people, 7 product line, and 9 SMT lines.

Export 1,000,000 pcs two way radios to 60 countries each year.







24 Hour Online Service:

Welcome and thank you for visiting our website.

Please send us inquiry or SMS us on Trade Manager.

It is our honor to help you.

We promise to response in 24 hours.
