Help Center24v 12v dc Flat Motor FC-280A
Negotiable
MOQ: 20000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Chengfang Motor
Model Number:
FC-280A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12v dc Flat Motor Low Rpm FT-280 for Door Lock ActuatorNegotiableMOQ: 20000 Pieces -
12v Electric Winch Motor FC-280ANegotiableMOQ: 20000 Pieces
-
Mini 12v dc Gear Motor FC-280ANegotiableMOQ: 20000 Pieces
-
12 Volt dc Motor Price FT-280 for Door Lock ActuatorNegotiableMOQ: 20000 Pieces
-
the Electric Motor on 12 Volts 5 Watt FT-280 for Door Lock ActuatorNegotiableMOQ: 20000 Pieces
Place of Origin
Guangdong, China
Brand Name
Chengfang Motor
Model Number
FC-280A
Usage
Other
Certification
CCC, ROHS, UL, Other, CCC, ROHS, UL, ISO/TS 16949:2009
Construction
Permanent Magnet
Commutation
Brush
Efficiency
Other, 50-80%

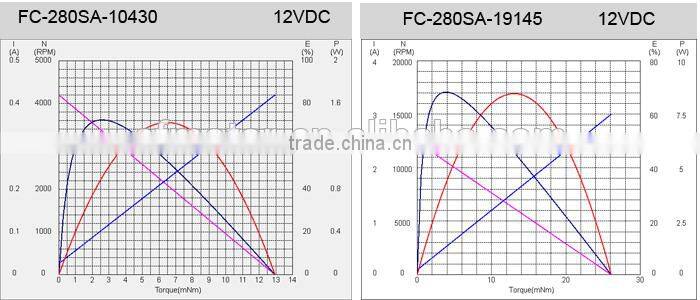

Performance Data
| Model No. | Main Performance | |||||||||
| Rated Voltage | No Load | At Maximum Efficiency | At Stall | |||||||
| Speed | Current | Speed | Current | Torque | Output | Eff. | Current | Torque | ||
| FC-280SA-10430 | 12 | 4,200 | 0.026 | 3,368 | 0.104 | 2.56 | 0.9 | 72.1 | 0.42 | 12.95 |
| FC-280SA-19145 | 12 | 12,400 | 0.09 | 10,568 | 0.52 | 3.9 | 4.27 | 68.4 | 3.00 | 26.09 |
| FC-280SA-23100 | 12 | 18,000 | 0.18 | 15,514 | 1.12 | 5.8 | 9.35 | 69.4 | 7.00 | 41.67 |
| FC-280SA-13300 | 12 | 6,000 | 0.048 | 4,937 | 0.22 | 3.1 | 1.62 | 60.8 | 1.03 | 17.65 |
| FC-280SA-18153 | 24 | 23,600 | 0.13 | 19,661 | 0.65 | 4.9 | 10.01 | 64.3 | 3.24 | 29.13 |

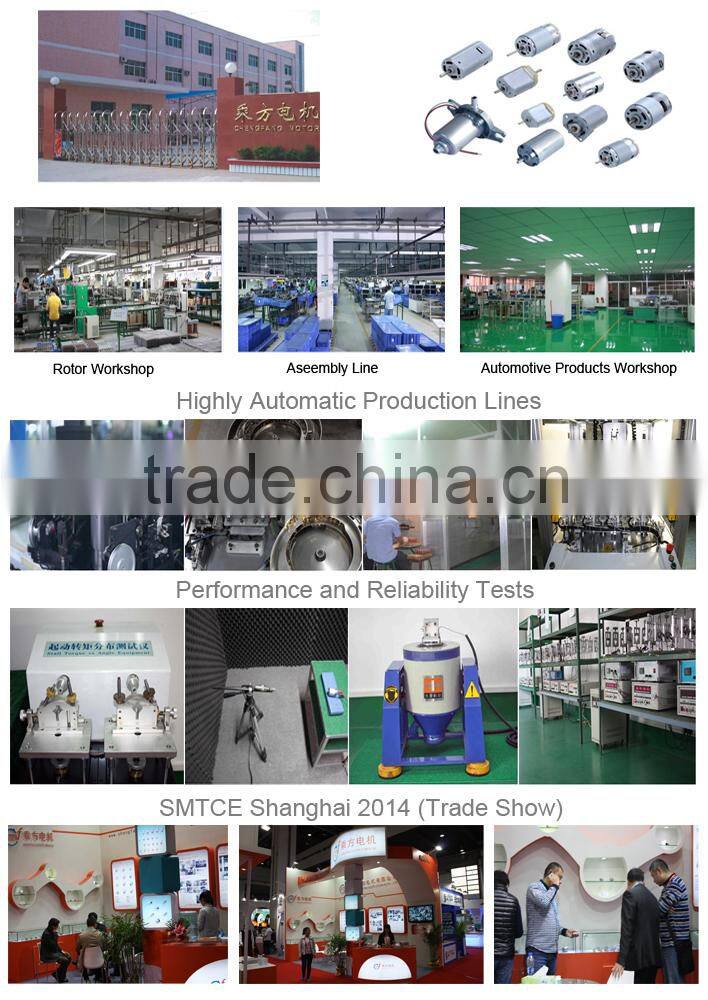

Facotry Show
Certifications
Send Inquiry to This Supplier
Mr. Johnny Wang
Overseas Sales Engin
Shenzhen Chengfang Electric Machine Co., Ltd.
Shenzhen, Guangdong, China
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer
Year Established
2003
Factory Size
10,000-30,000 square meters
Total Employees
501 - 1000 People
