Home > Electrical & Electronics > Electric Motor > DC Motor > Toy Racing Car Motors FK-130PH, Motor for Toy Car,mini dc Motors

Toy Racing Car Motors FK-130PH, Motor for Toy Car,mini dc Motors

Name: Toy Racing Car Motors FK-130PH, Motor for Toy Car,mini dc Motors
Brand: CF motor, Chengfang
SKU: 126945013
Availability: InStock

Toy Racing Car Motors FK-130PH, Motor for Toy Car,mini dc Motors thumbnail-1

Toy Racing Car Motors FK-130PH, Motor for Toy Car,mini dc Motors photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

CF motor, Chengfang

Model Number:

FK-130SH, FK-130SH

Contact Supplier Request Quote Chat Now

Shenzhen Chengfang Electric Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CF motor, Chengfang

Model Number FK-130SH, FK-130SH

Usage Home Appliance

Certification UL

Type Gear Motor

Construction Permanent Magnet

Commutation Brush

Note: the models listed below are part of our existing designs. We offer specific motor design for every customer.

FK-130H

Model No.	FK-130PH-17114
Rated voltage	12VDC
No Load	Speed(r/min)	24700
No Load	Current(A)	1.9
At Max Efficiency	Speed(r/min)	20762
	Current(A)	0.95
	Torque(mNm)	3.6
	Output(W)	7.82
	Eff.(%)	68.6
At stall	Current(A)	5.01
At stall	Torque(mNm)	22.6

Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035oz

Side mirror actuator motor
Aeromodelling motor
Remote control plane motor

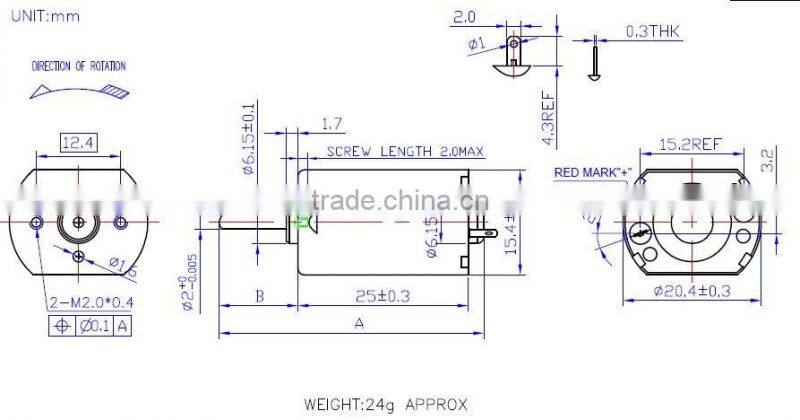

Dimension:dia. dia. 20.4 x 15.4 Thk. x 25 L. shaft O.D. 2.0 mm
Basic Structure: SECD housing / SECC end cap
Application: Aeromodelling
Weight: Approx. 24g

Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire

·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets
