Quansheng TG-360 2w 3000mAh Big Capacity Uhf 400-480mhz All Band Transceiver

Quansheng TG-360 2w 3000mAh Big Capacity Uhf 400-480mhz All Band Transceiver thumbnail-1
Quansheng TG-360 2w 3000mAh Big Capacity Uhf 400-480mhz All Band Transceiver thumbnail-2
Quansheng TG-360 2w 3000mAh Big Capacity Uhf 400-480mhz All Band Transceiver photo-1

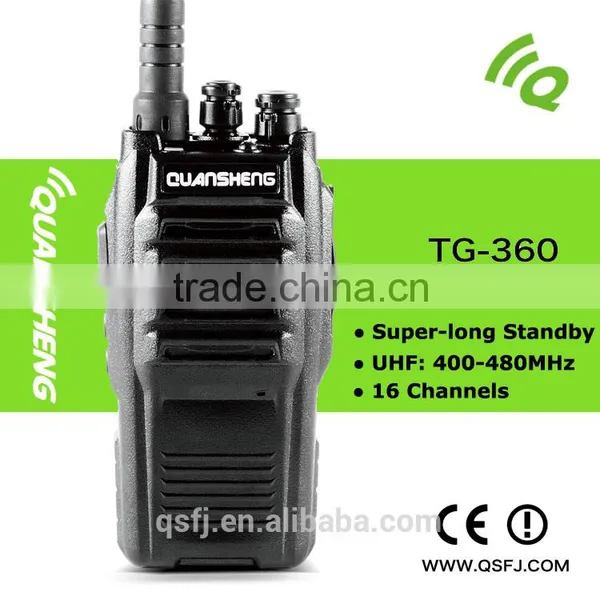

Quansheng TG-360 2w 3000mAh Big Capacity Uhf 400-480mhz All Band Transceiver photo-2
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
QuanSheng phone walkie talkie
Model Number:
TG-360
Contact Supplier Request Quote Chat Now
Fujian Nanan Quansheng Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen / shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name QuanSheng phone walkie talkie
Model Number TG-360
Type Handheld
Dimensions 105*57*35mm
Frequency Range 400-470MHz
Storage Channel 16
Talk Range 3-5KM

Quansheng TG-360  2w 3000mAh big capacity uhf 400-480mhz all band transceiver



This QuanSheng TG-360 two way radio is a compact radio with 3200mAh li-ion batter, 300hours standy by time,

pretty suitable for security, restaurant, construction,etc.





01. Adopting newest polymer Li-ion battery

02. Adopting imported PC material in case to make it solid & abradable

03. 300hours' super-long waiting time

04. CTCSS/DCS

05. Voice prompt(Chinese&English)

06. High / Low power switch

07. Squelch level adjust

08. Wide / Narrow bandwidth

09. Jacklight

10. PC programmable

11. Channel scan

12. Time-out-timer(TOT)

13. Low power alarm





GENERAL

Frequency Range                                                                        UHF: 400-480MHz

Channel                                                                                        16

Channel Spacing                                                                         25 /12.5KHz

Operating Voltage                                                                       3.6V

Antenna Impedance                                                                    50Ω

Operating Temperature                                                              -25°C~+65°C

Frequency Stability                                                                     ±2.5ppm

Battery                                                                                          3200mAh (Polymer Li-ion)

Dimensions                                                                                 105 X 57X 35mm

Weight                                                                                          221.5g



Transmitter

Output Power                                                                              ≤5W

Modulation                                                                                  16KΦF3E/11KΦF3E

Maximum Deviation                                                                    ≤5.0KHz (W)

Spurious Emission                                                                      ≤65dB

Audio Distortion                                                                          ≤5%



Receiver

Sensitivity                                                                                    ≤0.25/0.28μV

Adjacent Channel Selectivity                                                    70/50dB

Intermodulation                                                                          60dB

Spurious Response Rejection                                                  70dB

S/N                                                                                                43/38dB

Rated Audio Power Output                                                        ≤0.5W

Rated Audio Distortion                                                                  ≤5%











QuanSheng is one of the lead manufacturer of handheld radios

Design & manufacture 2 way radio for 20 years,

With ISO, CE, FCC and Rohs,

Taking 30,000 square meters,

with 500 people, 7 product line, and 9 SMT lines.

Export 1,000,000 pcs radios to 60 countries each year.
