mast telescopic pneumatic 10 m
BSG Series Lift Mast

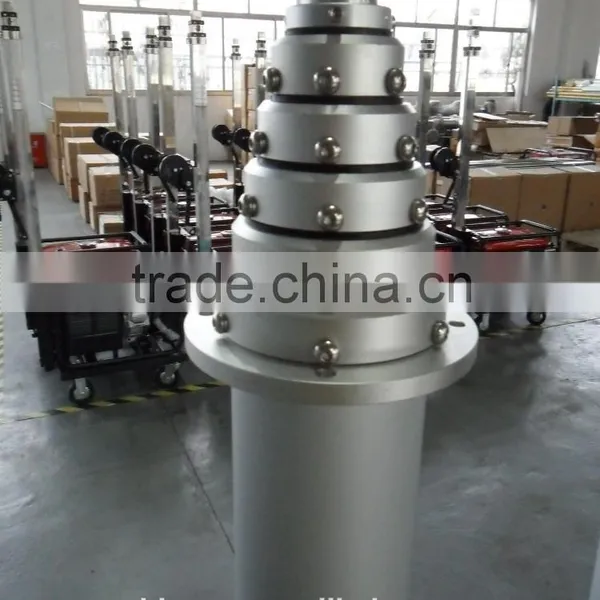

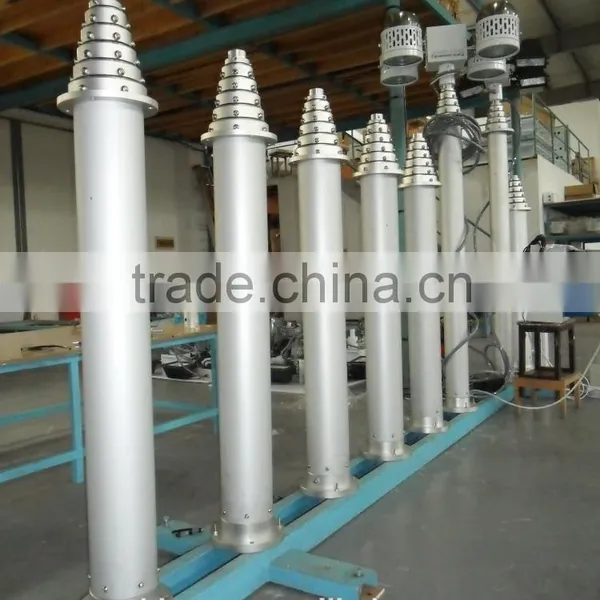

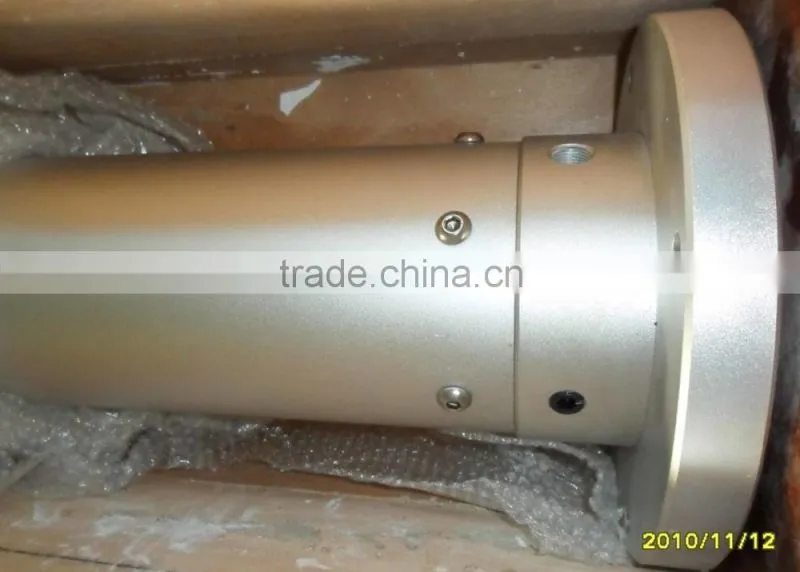

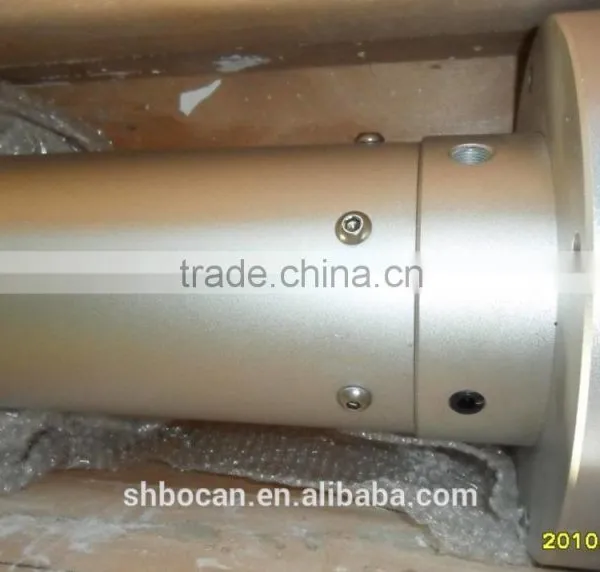

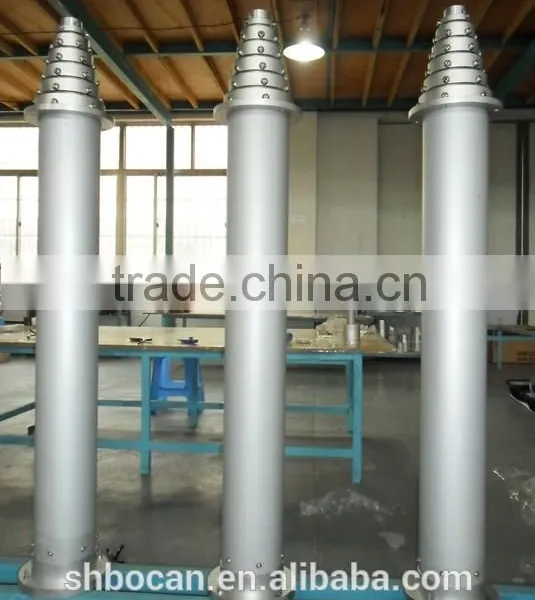

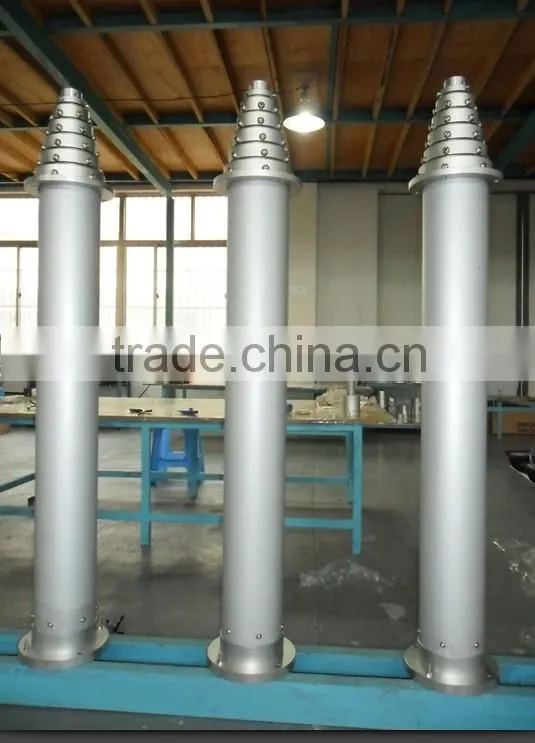

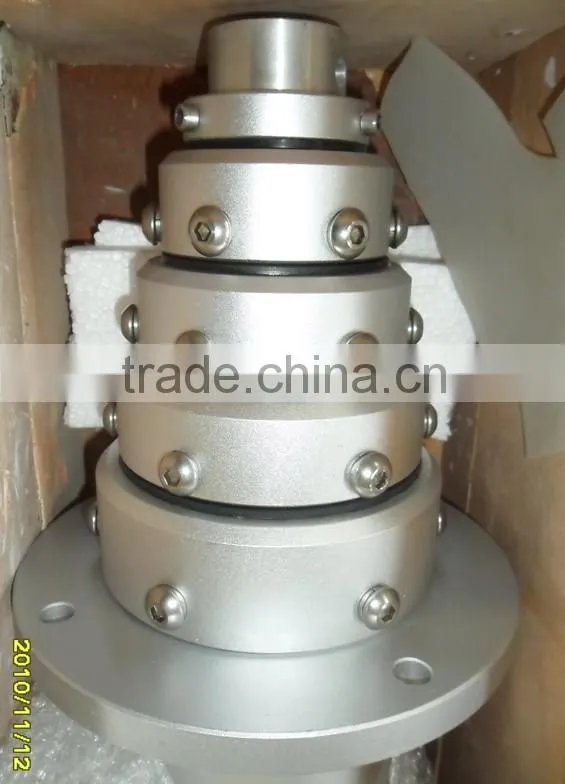

BSG series telescopic mast are designed and manufactured for performance and safety. Vertical-mounted masts can be used to elevate a variety of payloads including lighting, camera, or antennas. Vertical mounted telescoping products are constructed of high strength heat-treated aluminum tubes and collars with low friction synthetic bearings for long dependable service and can be mounted internally or externally on a vehicle.
BSG series lift mast has some specifications such as 3.5m, 4.5m,.5.5m, 6.0m, 7.5m, 8.5m, 10m, 14.5m, 17m and so on, at the same time within 30 meters it can be made according to customer’s requirement of special height.
BSG series lift mast is equipped with special-purpose system control box, which is usually installed beside the generator or car trunk. The control-box should control the ascending and descending of lift mast, the rotating of pan/tilt and the switching of lighting. The control-box also need interface providing DC12V and AC220V from the outside and operating handle of control system.

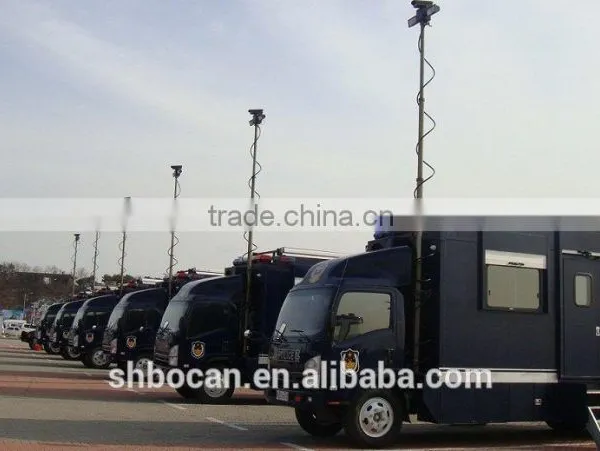

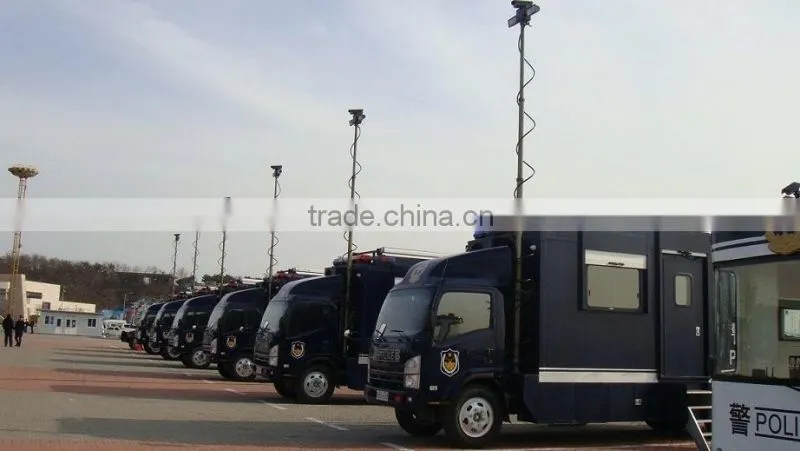

BSG series lift mast can be fixed on top and surrounding of cars through tray and mounting jointly. When choosing, the original height of BSG series lift mast should be decided from its height of different mounting surface to top. Its original height is the shortest when fixing the products on top to make sure that the body of cars has somewhat height and decrease the wind resistance of equipment.
Technical parameters
Model |
The max height |
The basic height |
Section number |
Payload capacity |
BSG35 |
3,500mm |
1,500mm |
3 |
100kg |
BSG45 |
4,500mm |
1,500mm |
4 |
100kg |
BSG55 |
5,500mm |
1,600mm |
4 |
90kg |
BSG65 |
6,000mm |
1,600mm |
5 |
80kg |
BSG75 |
7,600mm |
1,800mm |
5 |
80kg |
BSG85 |
8,500mm |
1,800mm |
6 |
80kg |
BSG100 |
10,000mm |
2,300mm |
6 |
80kg |
BSG145 |
14,500mm |
2,570mm |
8 |
200kg |
BSG170 |
17,000mm |
3,097mm |
8 |
200kg |
