115v/230v dc motor speed controller RS-7712H motors

FOB Price

USD $2.58 - $3.88 / Piece

3000 Pieces(Min.Order)

Supply Ability 2000000 Piece / Pieces per Month
Port Shenzhen Hongkong
Payment Terms:T/T L/C D/P D/A

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	CF Motor	Usage:	Boat, Car, Fan, Other, Boat, Car, Fan, power tool, electric model, fitness apparatus, automotive and etc.
Certification:	CCC, CE, ROHS, UL, Other, CCC, CE, ROHS, UL, ISO/TS 16949: 2009, ISO/TS 16949:2009	Type:	Micro Motor	Torque:	Requests
Construction:	Permanent Magnet	Commutation:	Brush	Protect Feature:	Other
Speed(RPM):	Variable Speed	Continuous Current(A):	TBD	Output Power:	TBD
Voltage(V):	120VAC-240VAC	Efficiency:	Other, 50-80%

Product Description

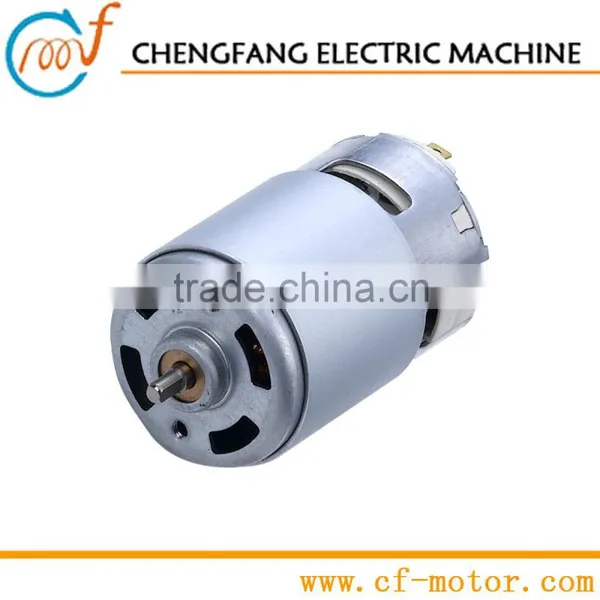

Small dc motor: 115v/230v dc motor speed controller RS-7712H motors

Certification: ISO/TS 16949:2009

EMI suppression: choke, capacitor and varistor are optional

Special shaft: spline, kurling, d-cut and etc.(optional)

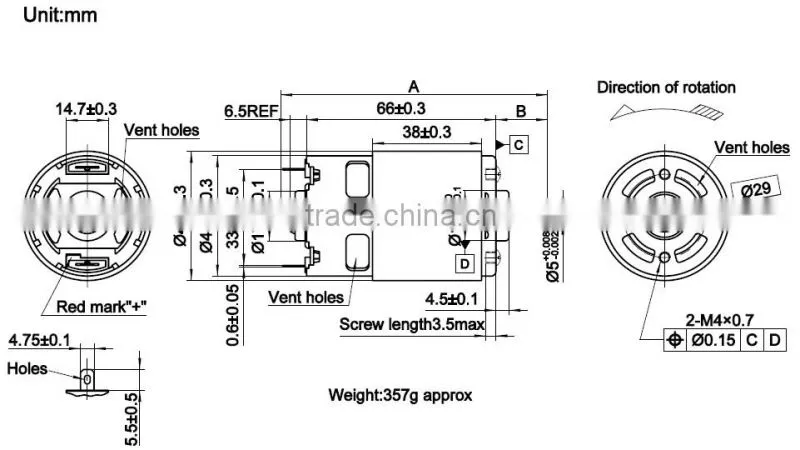

Detailed Dimension

* Please provide your data about dimension A and B. We offer customized spline, knurling, d-cut, step shaft and etc.

Model	Nominal Voltage	No Load		At maximum efficiency				At maximum power
		Speed	Current	Speed	Current	Torque	Eff	Speed	Current	Torque	Output
		r/min	A	r/min	A	mNm	%	r/min	A	mNm	W
RS-7712PHF-15122RL	120VAC RECT	9,900	0.17	7,481	0.65	59.61	62.02	4,514	1.39	161.89	76.50
RS-7712PHFC2J2-11206RIL	220VAC RECT	9,934	0.10	7,275	0.39	63.83	61.11	4,426	0.79	156.79	72.65
RS-7712SHF-16110RIL	120VAC RECT	10,176	0.20	7,596	0.75	62.80	62.07	4,659	1.56	161.79	78.90

* Above performance data is only for your reference. Please offer your datasheet for customization.

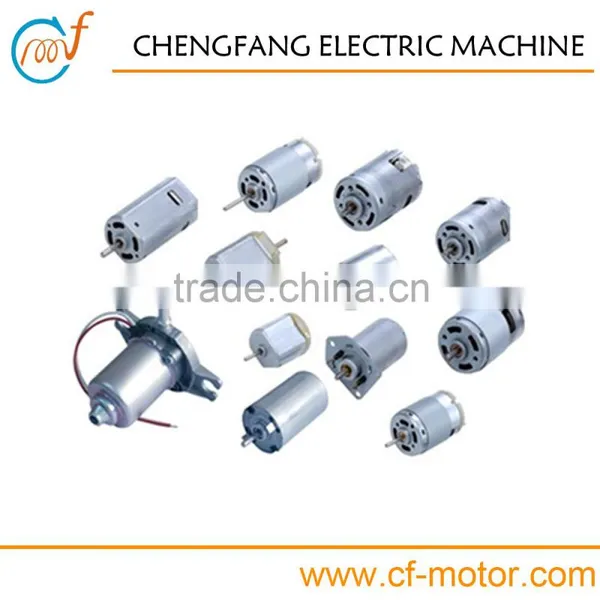

* See more models below.

Model	Dimensions	Output	Typical Applications
RS-360H/365H	φ28X32.5LXshaft OD2.3mm	2-40W	Cordless Drill, Cordless ScrewdriverToy Gun
RS-380A/385A	φ28X38.2LXshaft OD2.3mm	2-40W	Cordless Drill, Cordless Screwdriver
FS-380A/385A	φ28.5X40LX25ThkXshaft OD2.3mm	2.0-4.5W	Electric Scissors
RS-380H/385H	φ28X37.8LXshaft OD2.3mm	2.0-40W	Cordless Drill, Cordless Screwdriver
RS-550A/555A	φ36X57LXshaft OD3.175mm	5.0-80W	Cordless Screwdriver, Cordless Gardening Tool
RS-550H/555H	φ36X57LXshaft OD3.175mm	5-80W	Cordless Screwdriver, Cordless Drill
RS-560H/565H	φ36X60LXshaft OD3.175mm	5-80W	Cordless Screwdriver, Cordless Drill
RS-590H/595H	φ36X67LXshaft OD3.175mm	8-130W	Screwdriver, Cordless Drill
RS-770H/775H	φ41.8X66LXshaft OD5.0mm	8-100W	Cordless Drill, Gardening Tool, Circular Saw
RS-790H/795H	φ41.8X75LXshaft OD5.0mm	20-200W	Cordless Drill, Circular Saw
RS-987H	φ52X69LXshaft OD6.35mm	5-200W	Cordless Drill, Gardening Tool, Circular Saw
RS-997H	φ52X85LXshaft OD6.35mm	15-130W	Gardening tool, Circular Saw, Cordless Drill

* Please click the model to check motor dimension and performance in details.

Certifications

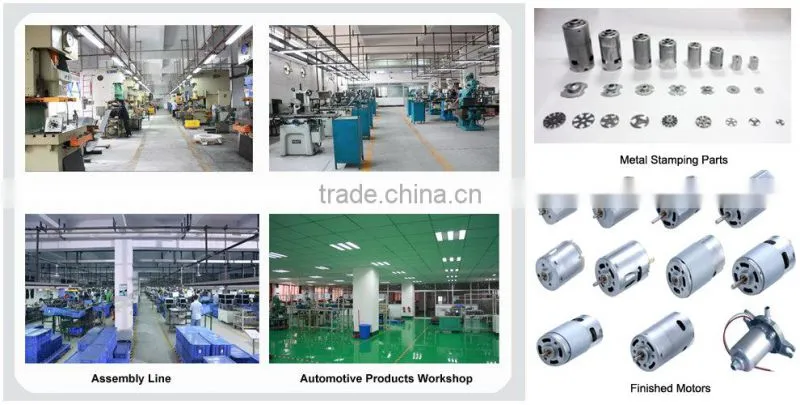

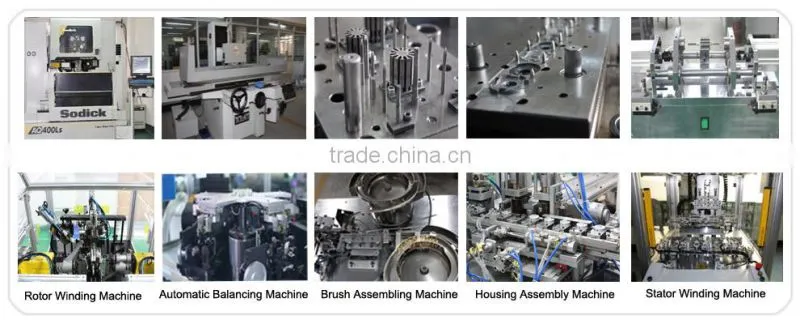

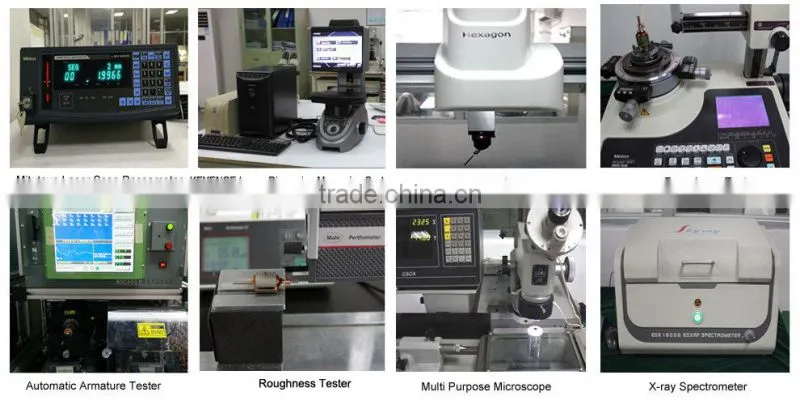

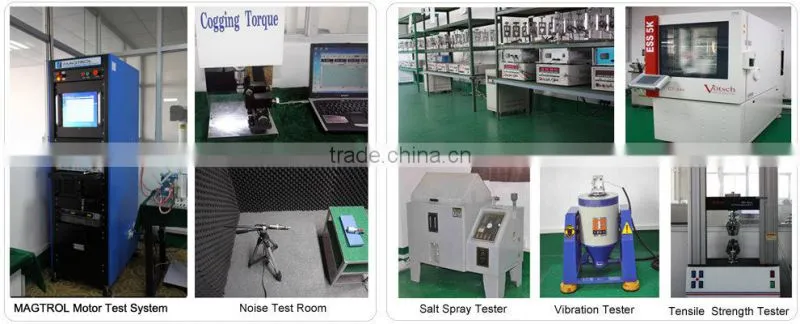

Factory Introduction

Shenzhen Chengfang Electric Machine is the professional PMDC motor manufacturer.The company was established in 2003. It occupies an area of 15,000 M²with 500 employees.

Products range from Low Voltage DC motor to High Voltage DC motor with diameter of 20mm to 61mm. Input voltage ranges from 1.2VDC to 240VAC. The major applications of the motors are: automotive, home appliance, power tool, office automation, fitness apparatus and electric model.

Contact Us

Shenzhen Chengfang Electric Machine Co., Ltd.: Contact nameJohnny Wang; Phone0086-0755-33266386; Address7th Industrial Zone Tianliao, Gongming, Guangming, Shenzhen, China Shenzhen,Guangdong
