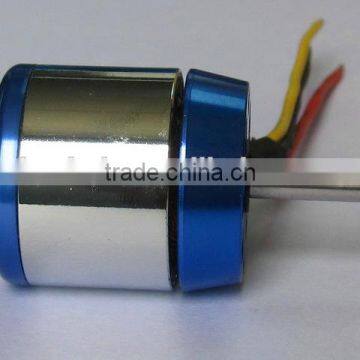

Product name:BC2225-15 1600KV R/C Model Brushless Motor
Weight:32g

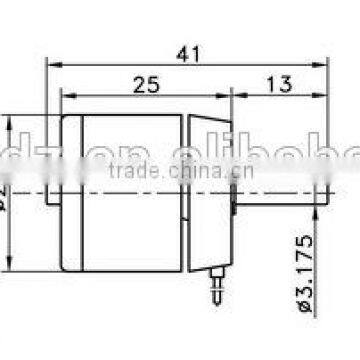

Motor Dimensions:φ22*25mm
Shaft Size:φ3.17*41mm
Propeller Recommendation:6*5/7*3
Battery:2-3Li-Po
Idle Current:0.6A
Max Current:8.2A
Rated speed:1000-50000RPM
Rated voltage:22.2-33.3V
Rated power:90W
Rated current:0.6-8.2A
ESC:18A
Ri/Ω:0.203Ω
Rated torque:440g
Average Lead Time:
Dongguan Hexie Electronic Co.,Ltd is a professional manufacturer of electronic harness,silicone wire,Medical cable ,Medical accessories PVC cable ,the power cable,especially in the field of dynamic model and peripheralaccessories has quite rich experience,mainly produce all kinds of accessories of R/C model such as R/C model wires and plugs,R/C Brushless motor and we also produce medical Products and Accessories,digital surrounding etc. connection products .
From metal lathing parts to plastic forming ,a collection of R&D,production,sales for the integration of wholly owned Company.
The Company has established complete quality assurance system and sound management mechanism and adhere to the ''quality first,the customer is satisfied,continuous improvement and sustainable management'' As the highest concept. We warmly welcome all the new and old customers and foreign clients to patronize.We also welcome clients both at home and abroad OEM,ODM,we anticipate to create the glorious future hand in hand with you. 7 Day(s)
Characteristics of our products (with UL certificates):
1. Banana plugs
Two types: jointing and welding
The sizes includes2.0mm, 3.0mm, 3.5mm, 4.0mm, 5.0mm, 5.5mm, 6.0mm, and 8.0mm, 10.0mm
Surfaces are nickel plated or gold plated.
2. T-plugs
We have common, mini and special three specifications with black, red and green insulators.
Our conductor's surface is gold-plated or nickel-plated, which ensures the excellent conductivity, electric current: 70A-80A.
3. Other plugs: TRX, XT60, XT150, MPX, EC2, EC3 and EC5
4. Alligator clips
Mainly used to examination and detection or used as charging clamps;
Our model includes small, medium, large.
5. Switch series: JR switch, FUTABA switch, LED switch etc.
The sizes include small, medium and large
6. Balance adaptor: TP/FP, TP-FP-02, HP-PQ, EH, EH-02, JST-XH6S,
Paraboard XH, TP, HP (T plug, XT60, EC3, EC5,Bare Lead, HXT 4MM).
5. Silicone wires from 4AWG~30AWG Temperature range: -60 degrees to 200 degrees
Our conductor uses 0.05 to 0.08mm copper lines of 11-2000 pieces (namely model number from 8AWG to 34AWG).
This is an ideal power supply line with standing high temperature and heavy current power.
6. Connectors: all coupling lines of plane models, car models and ship models.
7. Plane model lines: servo lead, extension wires, ignition lines, switch wires, Y-type leads, charger leads, electrical source lines, switch box lines and electronic voltmeter lines
8. Terminal lines: JR lines, Futaba lines, JST lines, battery lines and balance charger plug lines
We keep the management policy of "Innovation and highly efficient" and follow the enterprising spirit to meet our customers' needs. At present, our products are sold well at home and abroad.
