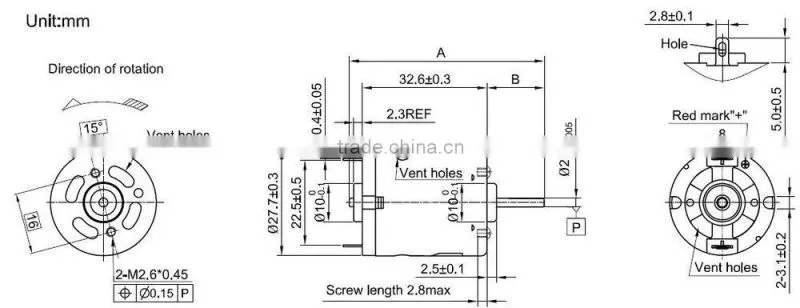

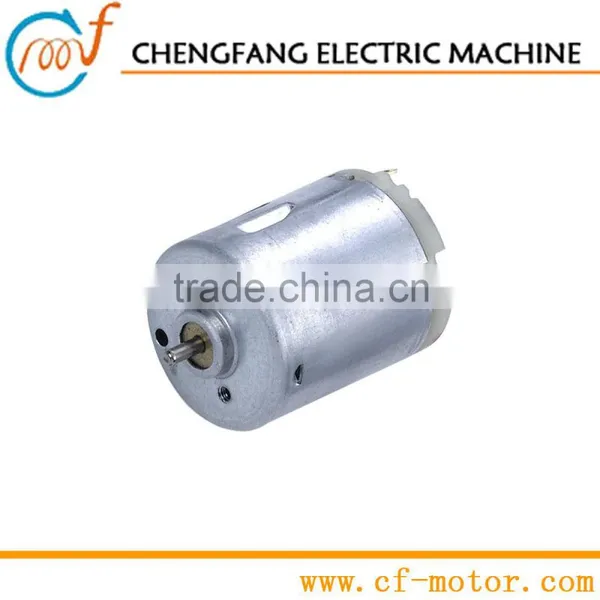

12V intake manifold throttle valve motors RS-365SA-10200
| Model No. | Main Performance | |||||||||
| Rated Voltage | No Load | At Maximum Efficiency | At Stall | |||||||
| Speed | Current | Speed | Current | Torque | Output | Eff. | Current | Torque | ||
| V | r/min | A | r/min | A | g.cm | W | % | A | g.cm | |
| RS-365SA-10200 | 12.0 CONST | 4,500 | 0.048 | 3,420 | 0.149 | 26 | 0.91 | 50.63 | 0.47 | 105 |
Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035oz
Motor Design |
Customized Options |
|
. 2-pole stator . Sr ferrite permanent magnet . 3, 5, 7, 8, 9, 12,16 slots armature . Silicon-steel lamination with epoxy coating . High-carbon steel shaft . Cu-Ag alloy commutator . Copper-graphite brushes . Be-Cu leaf-brush commutating system . SECD round / flat type housing . SECD end cap / glassfiber reinforced PA6/6 end cap . Cylinder / self-aligning Cu-Fe alloy sintered bushes . 155℃(class F) magnet wire
|
. Leadwires with connector / pins . EMI suppression components . PTC or thermostate protection . Built-in AC/DC rectifier . Built-in cooling fan . Multiple output shaft . nurls, straight knurls, D-cut, stepshaft . Shaft-mounted gears, eccentric gears, belt pulleys . Stainless steel (SS304, SS420) shaft . Ball bearing . Cage-brush commutating system . Precious metal brush / commutator . Hall encoder . Low-cogging torque design . 180℃ (class H), 200℃ (class C) magnet wire . -40℃ ~ 220℃ bearing lubricant . Neodymium magnets |
