Home > Electrical & Electronics > Electric Motor > AC Motor > 12V dc Power Switches Motors RF-370SHV-16290

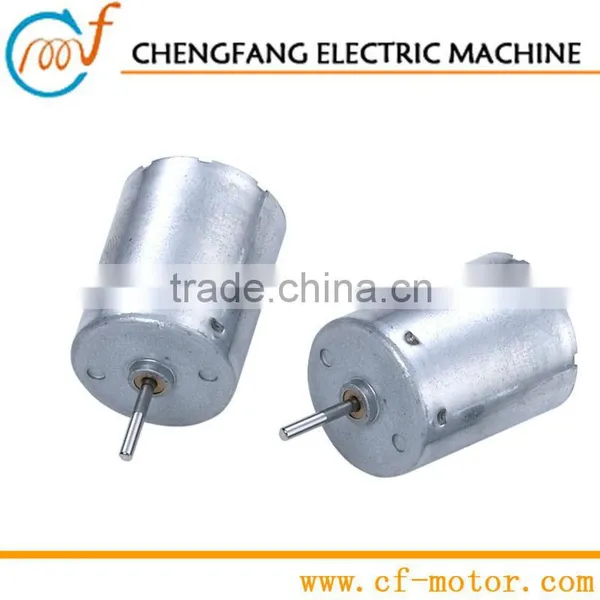

12V dc Power Switches Motors RF-370SHV-16290
US$ 0.5 - 0.8
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF Motor, Chengfang
Model Number:
RF-370SHV-16290, RF/RC-370CH
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12V dc Headrest Adjusters Motors RF-370SHV-16290US$ 0.5 - 0.8MOQ: 5000 Pieces -
12V dc Intake Manifold Throttle Valve Motors RF-370SHV-16290US$ 0.5 - 0.8MOQ: 5000 Pieces
-
12V dc Window Lift Drives Motors RF-370SHV-16290US$ 0.5 - 0.8MOQ: 5000 Pieces
-
12V dc Window Lift Drives Motors RC-370SH-15357US$ 0.5 - 0.8MOQ: 5 Pieces
-
12V dc Power Switches Motors RC-370SH-15357US$ 0.5 - 0.8MOQ: 5000 Pieces
Place of Origin
Guangdong, China
Brand Name
CF Motor, Chengfang
Model Number
RF-370SHV-16290, RF/RC-370CH
Type
DC Motor
Motor
Brush
Voltage
12V
Certification
ROHS
1.For power switches/toys/vibration motor/massager.
2.High torque,long life,light weight,small dissipation.
3.Fast delivery.
The models we list below are part of our existing designs.
we can customized them after evaluation if you can specify your own needs like voltage, speed, torque front shaft length and so on.
RF-370H
| Model No. | Main Performance | |||||||||
| Rated Voltage | No Load | At Maximum Efficiency | At Stall | |||||||
| Speed | Current | Speed | Current | Torque | Output | Eff. | Current | Torque | ||
| V | r/min | A | r/min | A | g.cm | W | % | A | g.cm | |
| RF-370SHV-16290 | 12.0 CONST | 4,970 | 0.032 | 4,268 | 0.199 | 39.6 | 1.78 | 74.03 | 1.47 | 334.5 |
Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035oz
- Damper actuator motor
- Automotive air conditioner motor
- 370 motor

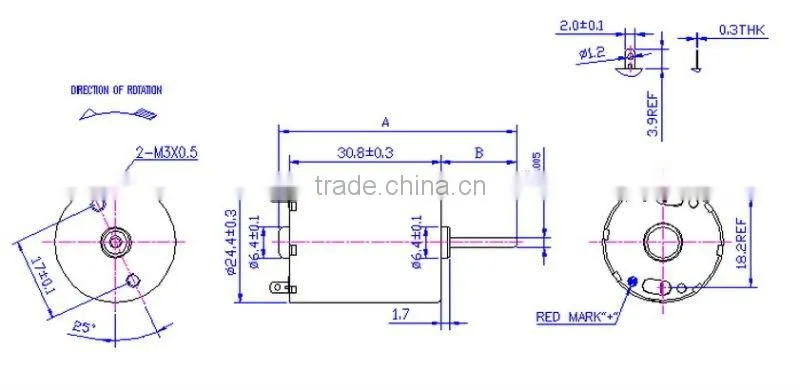

- Dimension: dia. 24.4 x 30.8 L. shaft O.D. 2.0 mm
- Basic Structure: SECD housing / SECC end cap / Rubber Magnet
- Application: Damper actuator / Gear box
- Weight: Approx. 50g
