Electric Motor FK-130PH, Brushed Motor,motor for Toy Car,

Electric Motor FK-130PH, Brushed Motor,motor for Toy Car, thumbnail-1
Electric Motor FK-130PH, Brushed Motor,motor for Toy Car, photo-1
US$ 0.4 - 0.6 MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CF motor, Chengfang
Model Number:
FK-130SH, FK-130SH
Contact Supplier Request Quote Chat Now
Shenzhen Chengfang Electric Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CF motor, Chengfang
Model Number FK-130SH, FK-130SH
Usage Car, Home Appliance
Certification ROHS, UL
Type Gear Motor
Construction Permanent Magnet
Commutation Brush

Electric motor FK-130PH, Brushed motor,motor for toy car,



Side mirror actuator motor
Aeromodelling motor
dia*L 20.4*25mm
Weight: 24g Approx
ISO/TS16949 certified company



The models we list below are part of our existing designs. We offer specific motor design for every customer.



FK-130H

Model No. FK-130PH-17114
Rated voltage 12VDC
No Load Speed(r/min) 24700
Current(A) 1.9
At Max Efficiency Speed(r/min) 20762
Current(A) 0.95
Torque(mNm) 3.6
Output(W) 7.82
Eff.(%) 68.6
At stall Current(A) 5.01
Torque(mNm) 22.6

 Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in   1mm=0.039in   1g=0.035oz



 Electric motor FK-130PH, Brushed motor,motor for toy car,







  • Side mirror actuator motor
  • Aeromodelling motor
  • Remote control plane motor

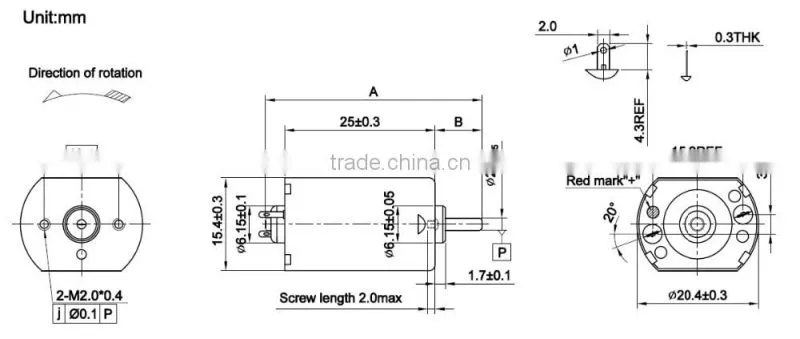

  • Dimension:dia. dia. 20.4 x 15.4 Thk. x 25 L. shaft O.D. 2.0 mm
  • Basic Structure: SECD housing / SECC end cap
  • Application:  Aeromodelling
  • Weight: Approx. 24g


Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire











·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets

Electric motor FK-130PH, Brushed motor,motor for toy car,
