Place of Origin Fujian, China
Brand Name QuanSheng
Model Number TG-007
Type Handheld
Dimensions 115X 58X 35.5mm
Frequency Range 136-174MHz 400-470MHz
Storage Channel 128
Talk Range 5-8km

Ham Radio 245-246MHz, FM Radio,business radio,vhf and uhf radio with CE cetificate

dual band:136-174MHz /400-480MHz (RX/TX)

dual band:136-174MHz /245-246MHz(RX/TX)



  Handheld Type Wide Band Coverage UHF VHF Walkie Talkie Handheld Type Wide Band Coverage UHF VHF Walkie Talkie

1, High capacity Li-ion battery and smart charger
2, Receive/Transmit code setting separately
3, UHF/VHF dual band receive/transmit
4,FM radio (65-108MHz)
5, Large LCD display
6, PC programmable
7, Fast MENU operation
8, Emergency alarm function
9, High/Low power selective
10, Squelch level adjustable
11, Multi power saving function
12, Voice prompt(Chinese or English)
13, Reminding switch
14, Dual display of frequency and channel
15, Channel name edit
16, Channel storing
17, Frequency/Cannel mode shift
18, Multi LCD backlight selective
19, Tim of backlight auto off selective
20, Built in VOX
21, Dual-watch operation
22, Offset frequency and offset direction setting
23, Multi display mode:Channel /Frequency / Channel name
24, CTCSS/DCS code search automatically
25, Multi step frequency
26, Busy channel lock
27, Time-out-timer(TOT)
28, Multi scan function selective
29, Channel scan additive
30, Wide/Narrow bandwidth selective
31, Main/Sub channel shift
32, 1750Hz call tone
33, Reminding of repeater transfer
34, Auto-keylock
35, Channel delete function
36, Reset
37, DTMF function
38, PTT-ID
39, CTCSS/DCS
40, Reverse function

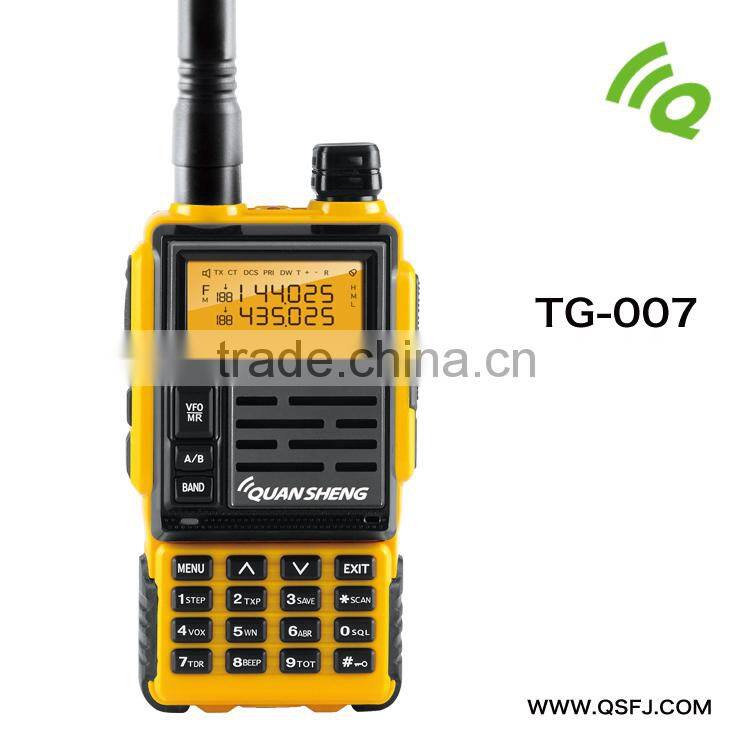

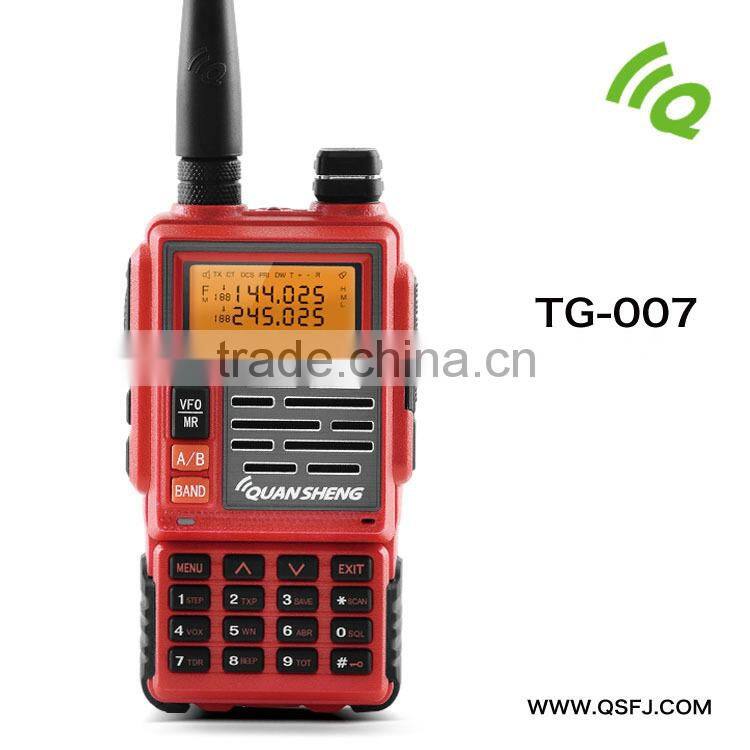

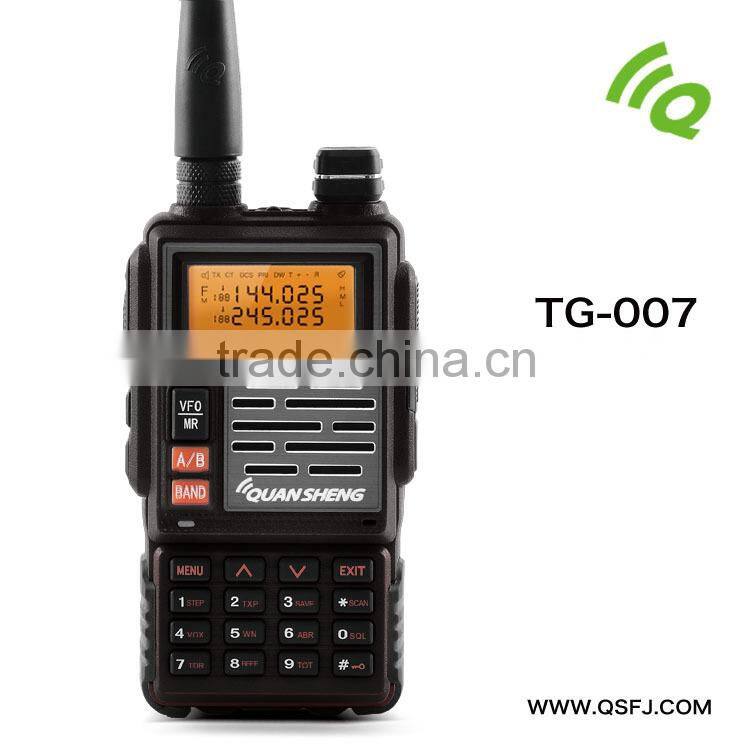

New design vhf uhf fm transceiver  with FM radio DTMF-Quansheng TG-007
GENERAL

Frequency Range                                                                   Dual Band: 136-174MHz /400-480MHz(RX/TX)

                                                                                                Dual Band: 136-174MHz /245-246MHz(RX/TX)

Channel                                                                                  128

Channel Spacing                                                                    25 /12.5KHz

Operating Voltage                                                                   7.2V

Antenna Impedance                                                                50Ω

Operating Temperature                                                          -25°C~+65°C

Frequency Stability                                                                  ±2.5ppm

Battery                                                                                      Standard: 2500mAh( Li-ion)

Dimensions(H*W*D)(without antenna)                                    115X 58X 35.5mm

Weight(with antenna and battery)                                           230g



Transmitter

Output Power                                                                          5W

Modulation                                                                              16KΦF3E/11KΦF3E

Maximum Deviation                                                               ≤5.0KHz(W)

Spurious Emission                                                                 ≤65dB

Audio Distortion                                                                      ≤5%



Receiver

Sensitivity                                                                               ≤0.25/0.28μV

Adjacent Channel Selectivity                                                 70/50dB

Intermodulation                                                                      60dB

Spurious Response Rejection                                               70dB

S/N                                                                                         43/38dB

Rated Audio Power Output                                                    ≤0.5W

Rated Audio Distortion                                                           ≤5%






Ham Radio 245-246MHz, FM Radio,business radio,vhf and uhf radio with CE cetificateHam Radio 245-246MHz, FM Radio,business radio,vhf and uhf radio with CE cetificateHam Radio 245-246MHz, FM Radio,business radio,vhf and uhf radio with CE cetificate







QuanSheng is one of the lead manufacturer of handheld radios

Design & manufacture 2 way radio for 20 years,

With ISO, CE, FCC and Rohs,

Taking 30,000 square meters,

with 500 people, 7 product line, and 9 SMT lines.

Export 1,000,000 pcs radios to 60 countries each year.
